Part Names and Their Functions

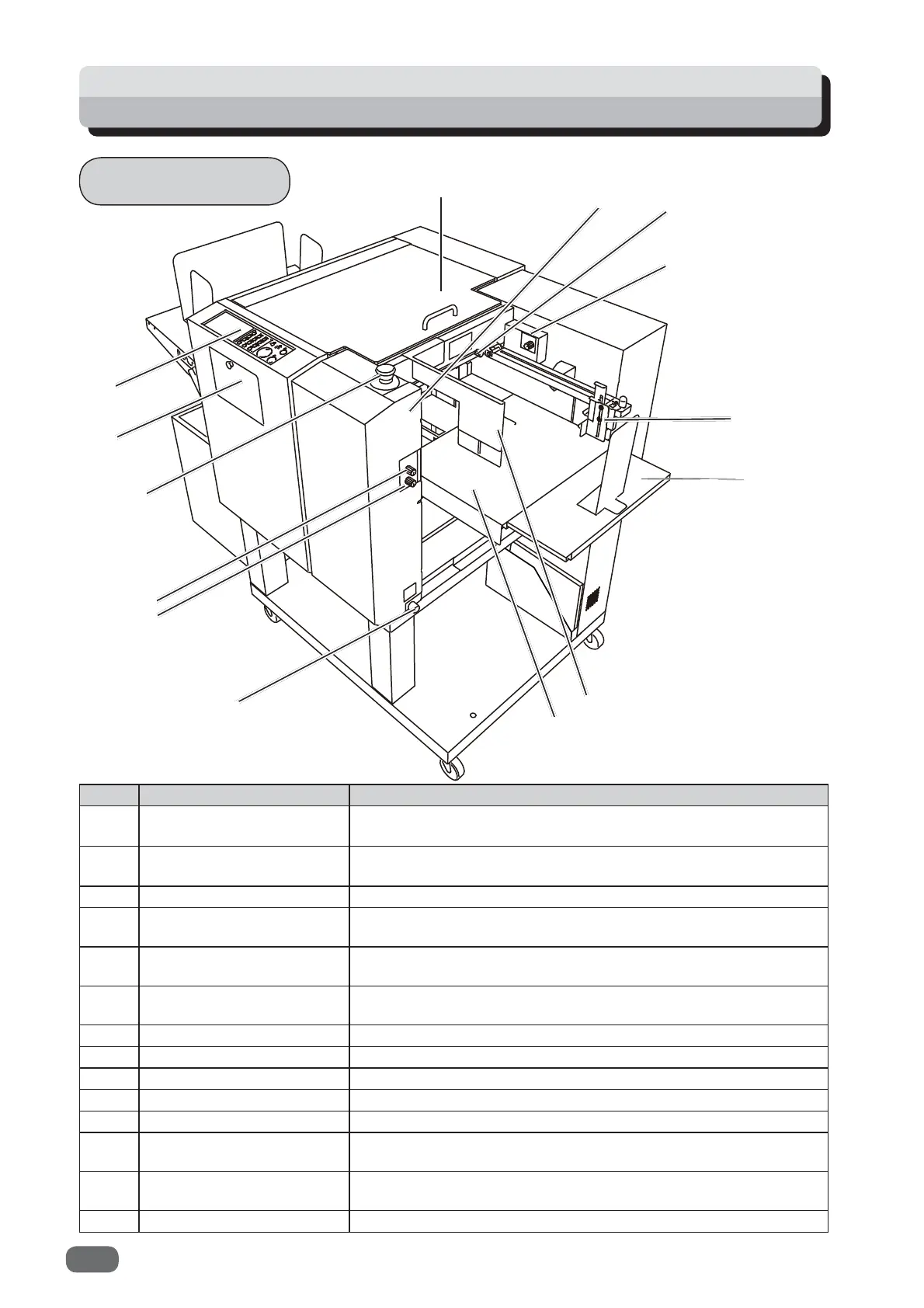

Appearance
No. Name Function
1 Top cover
Open this to replace a module and to remove the document
jam from the inside of the machine.
2 Control panel
Displays operations and status. Sets functions and enters
JOBs.
3 Insert cover Open this to change directions of the creaser tools.
4 Emergency stop switch
Press this to stop the machine in emergency. Turning the
switch to the right releases the emergency stop.
5 Separator adjustment knob
Adjusts distance between the separator and the conveyance
belt when a document is not fed or is double-fed.
6 Airfl ow adjustment knob
Adjusts airfl ow level when a document is not fed or is double-
fed.
7 Skew adjustment knob Adjusts document skew.
8 Feed tray Place original documents here.
9 Side guide Set this according to the document width.
10 Feeding support tray Set this according to the document length.
11 Back guide Set this according to the document length.
12 Level adjustment knob
Adjust height of the elevator when a document is not fed or is
double-fed.
13
Feed guide adjustment
knob
Adjusts the feed guide position.
14 Elevator down switch Press this to lower the feed tray.
2
3
4
5
6
12
14 13
8
9
10
11
1
7
