Duplo DC-516 User Manual

32
Creaser Modules

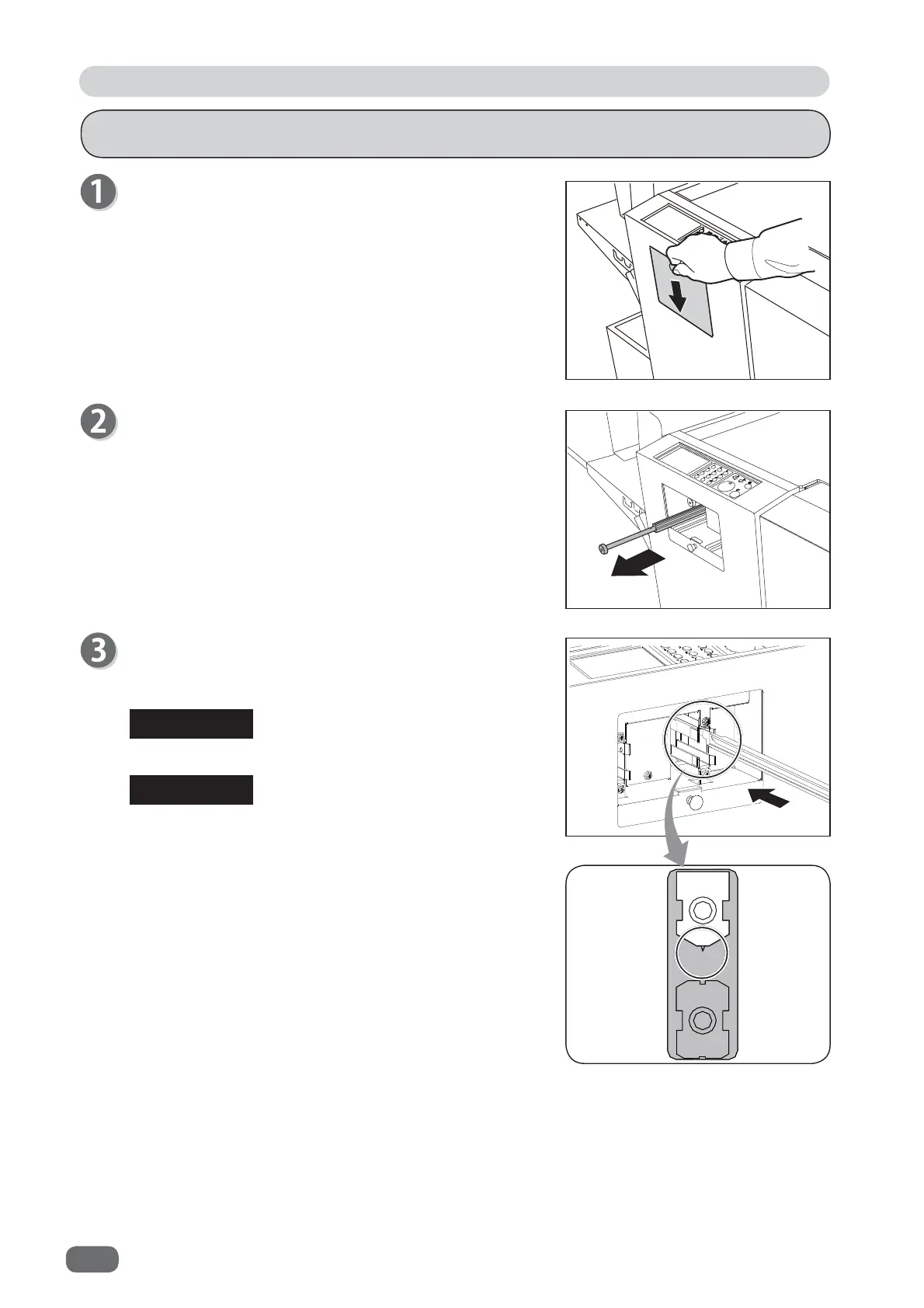

Change Directions of the Creaser Tools (Upper/Lower)
Hold the
knob
and pull down the
insert cover
.
The upper tool and the lower tools are attached to the
module individually.
Pull out the
creaser convex tool
and the
creaser
concave tool
one by one.
Make sure to pull out both of them.
Switch the
creaser convex tool
and the
creaser
concave tool
, and insert the tool in the position in the
fi gure.
Insert the tool securely until it stops.
When inserting the
creaser convex tool
in the upper
position, have the tool face downward. When inserting
it in the lower position, have the tool face upward.
Ex.) When inserting the
creaser convex
tool in the upper
position
