Usage
8 Operation
NOTICE
Damage to the camera from falling
down or scratching
❯
Always place the camera in the hand-
piece holder.
❯
Do not place the camera on a storage
shelf.
❯
Do not place the camera between
other treatment instruments.

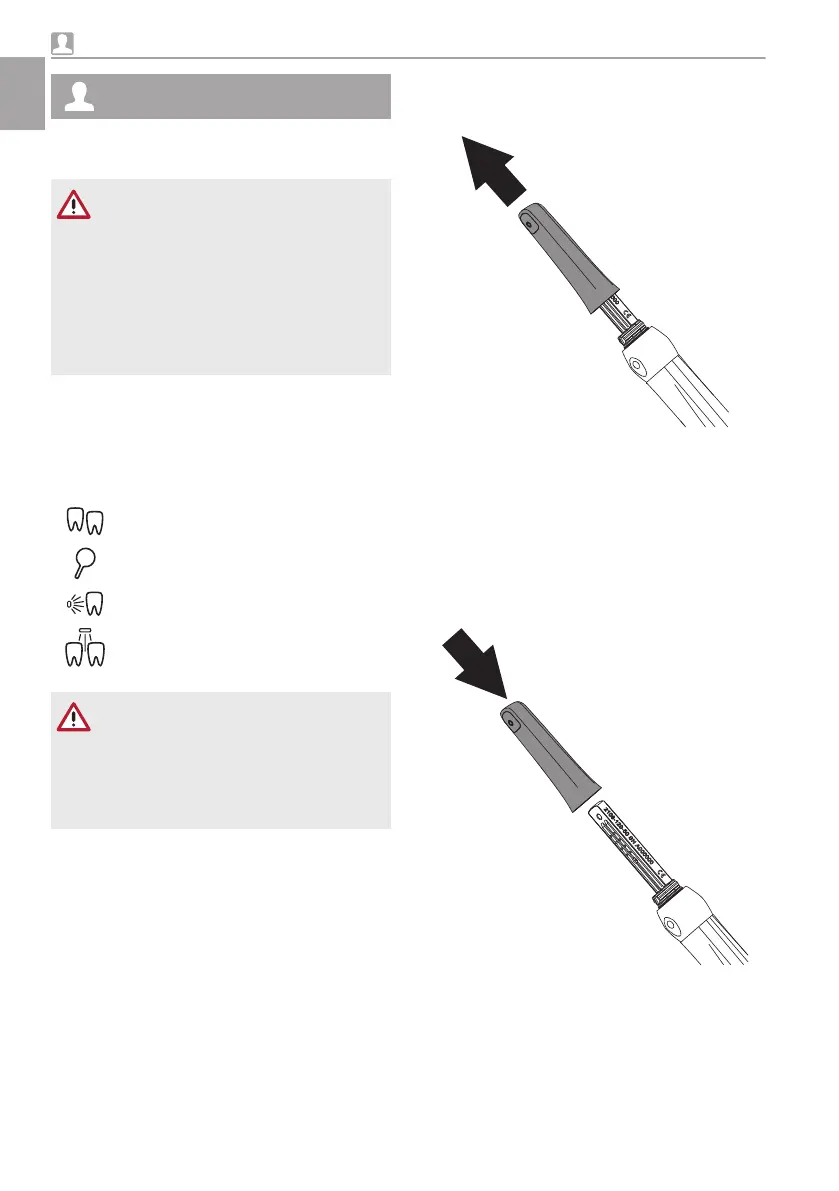

8.1 Changing the interchangeable
head
The function of the camera depends on the inter-
changeable head. The following interchangeable
heads are available:
Cam interchangeable head
Macro Interchangeable head:
Proof interchangeable head
Proxi interchangeable head
CAUTION
Leakage currents possibly too high
when touching open contacts
❯
Never come into contact with patients
and open contacts on the handpiece
at the same time.
Remove the interchangeable head
❯
Pull the interchangeable head off the hand-
piece upwards.
Place on the interchangeable head
Requirements:
ü
The handpiece and interchangeable head are
completely dry.
❯
Hold the interchangeable head and handpiece
so that the optical element is on the side of the
image sensor.
❯
Slide the interchangeable head onto the hand-
piece until it clicks into place.
8.2 Switch on the unit.
❯
Using the connection cable, connect the cam-
era to the USB port on the computer.
Usage
18 9000-618-176/30 1812V009
EN
