Electrical Quick Disconnect 6–2

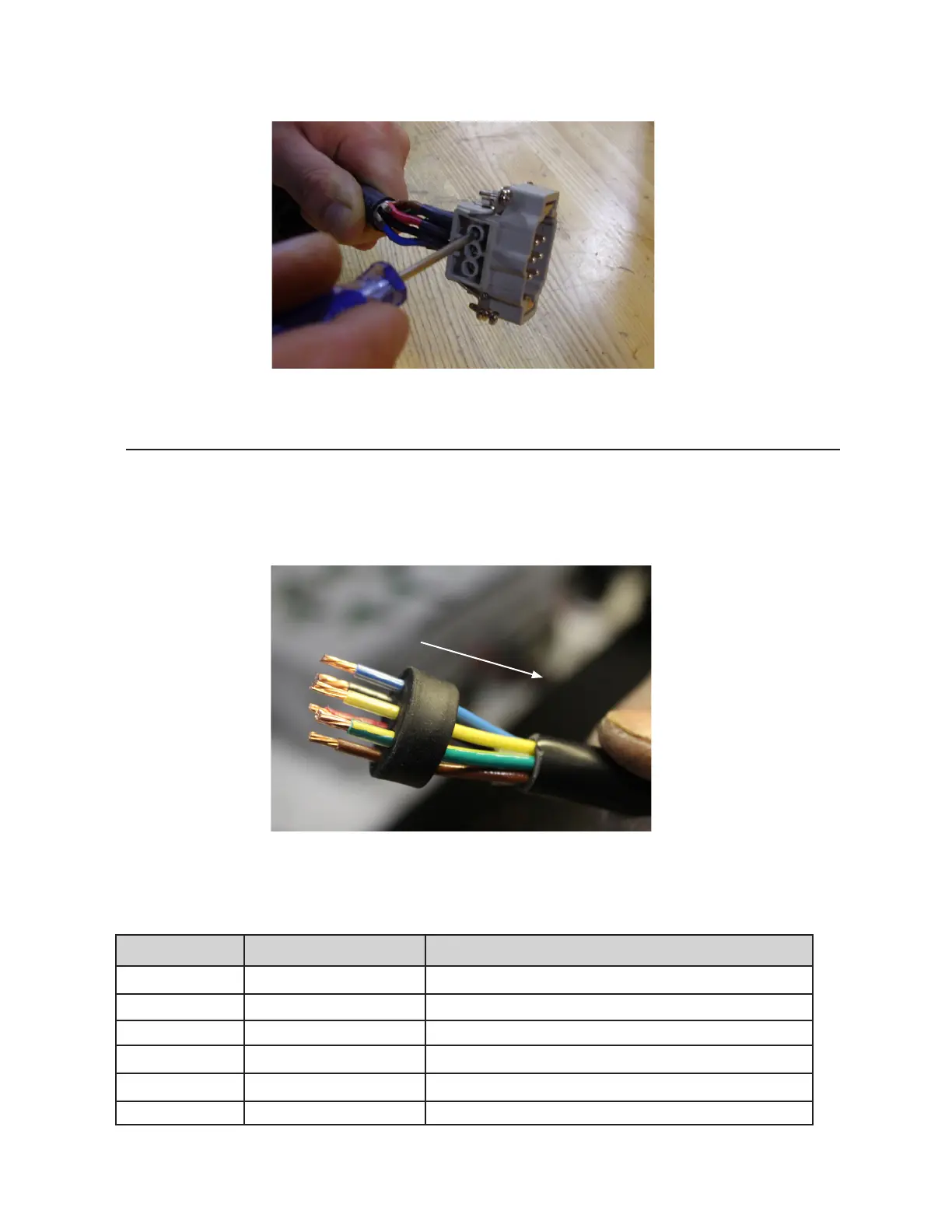

4. Loosen the six retaining screws and remove the wires from the EQD insert.

Reassembling the EQD

1. SlidetheEQDhousing(withcablettinginstalledandcompressionnutloose)over

thepowercable.

2. Traycableside:installthewatertightgrommetontothewires.Keepthetaperedside

toward the cable jacket, not the cable end.

3. InsertthewireendsofthepowercableintotheEQDinsert,ensuringproperpin

number and wire color alignment:

Figure 6-3

Taper

Figure 6-4

EQD Pin # Wire Color Function

1 Brown Manual run

2 Red L1

3 Black L2(240V)orNeutral(120V)

4 Greenw/yellowstripe Ground

5 Yellow Alarmpowerfeed

6 Blue Alarmpowerreturn

Table 6–1
