Electrical Quick Disconnect 6–3
4. Tighten the six setscrews. Ensure the wires have been stripped back 1/4” to 3/8” for
proper installation.
5. Tighten the four connector screws into the EQD housing.
6. Tighten the compression nut on the cord grip.
EQD Retrot: 2000 Series to Extreme Series
1. To seal the core bolt inserts in the tank transition, install the six foam pads onto the
underside of the new top housing. Flats on the underside will guide you.
2. With the power off, loosen the screws on both sides of the 2000 Series EQD. Unplug
the EQD.
3. Remove the four screws at each corner of the insert. Loosen the packing nut and
push the cable through the housing.
4. Disconnect the six leads from the insert by loosening the set screws.
5. Cut off the old, stripped portion of the cable.
6. Slip off the old EQD housing and compression tting from the cable.

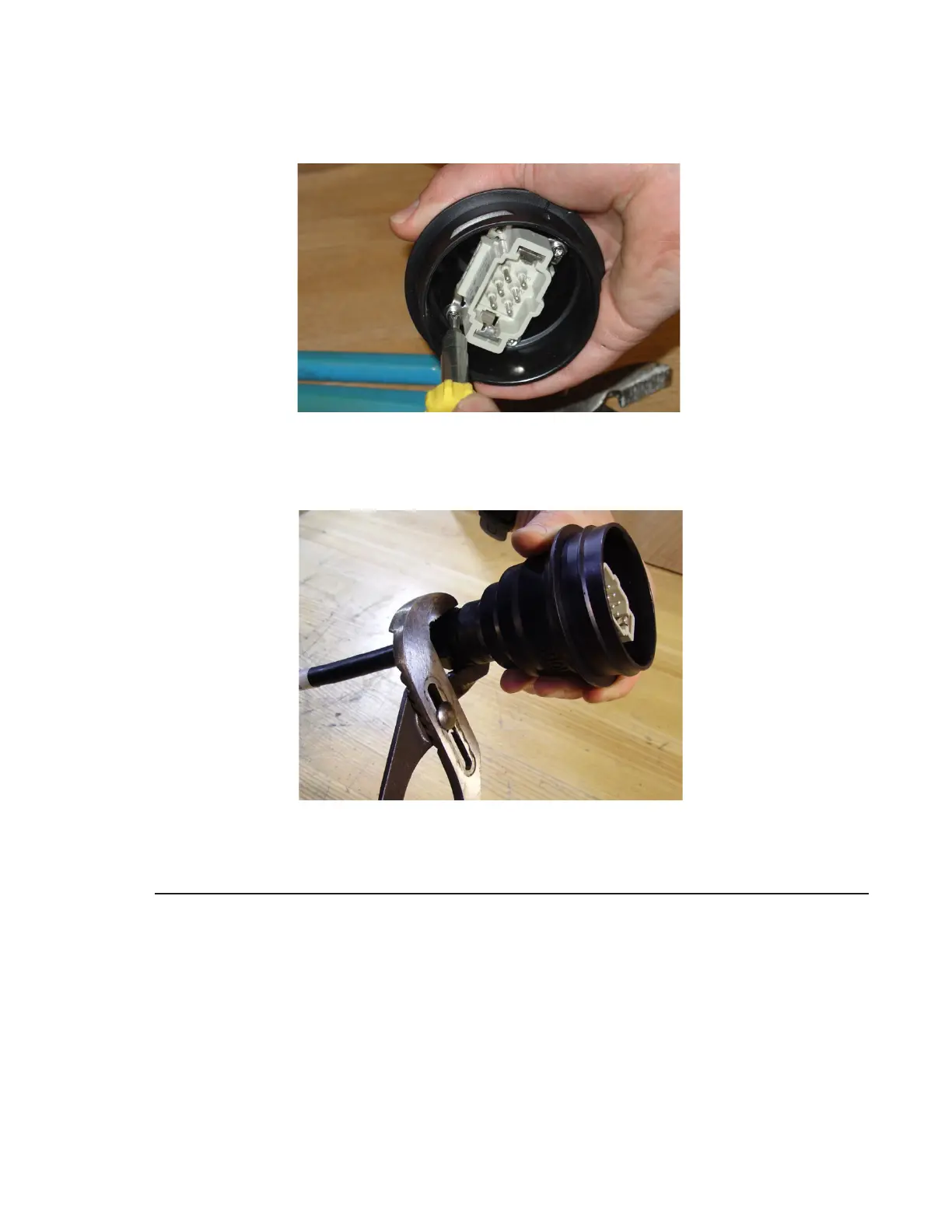

Figure 6-5
Figure 6-6
