Top Housing 7โ4

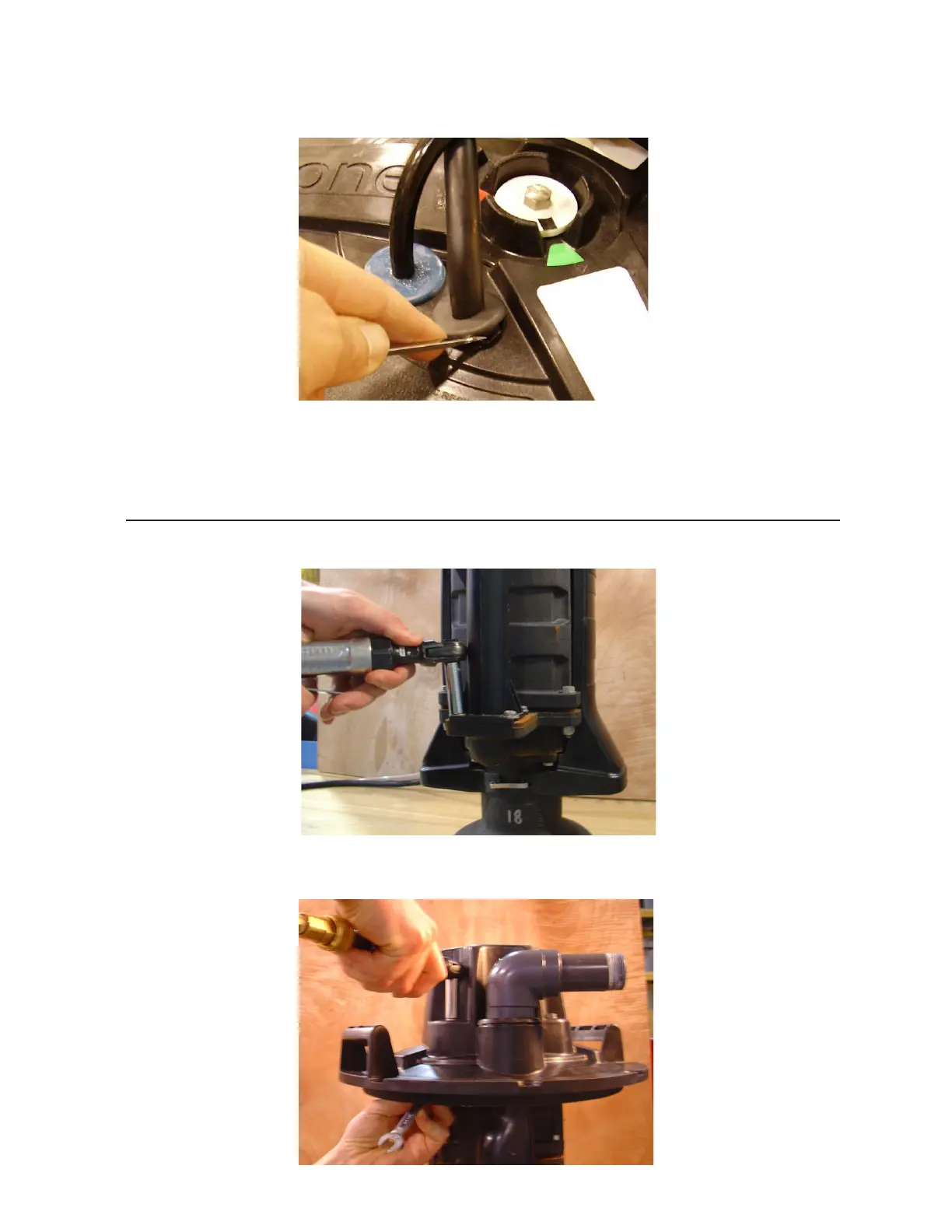

4. Use a small, ๎at head screwdriver to seat the power cable and Equalizer tube
grommets into the top housing. Take care not to tear the grommet.
5. Secure the top housing onto the control compartment casting with the four bolts and
four new Nyloc nuts. Tighten in an X pattern to 120 inlb.
IH Station Top Housing Removal
1. Remove the four bolts that attach the check valve/anti-siphon to the discharge elbow.
2. Loosen and remove the four top housing bolts.
Figure 7-8
Figure 7-9
Figure 7-10
