Top Housing 7–6
9. Install and secure the four top housing bolts with four new Nyloc nuts and tighten in
an X pattern.
10. Install the four bolts and secure the check valve/anti-siphon to the discharge elbow.
11. Reconnect the power cable to the alarm panel.
12. Re-install the Equalizer.
13. Secure the Equalizer tube to the power cable with the retaining clips.
Cable Replacement
Cable Removal
1. Remove top housing, following the appropriate instructions for top housing removal
and replacement above.
2. Remove the level sensor as described in Chapter 8 – Level Sensor.
3. Remove the split ring compression nut from the control housing.
4. Remove the control housing as described in Chapter 9 – Control Cavity.
5. Disassemble the level sensor as described in Chapter 8 – Level Sensor.

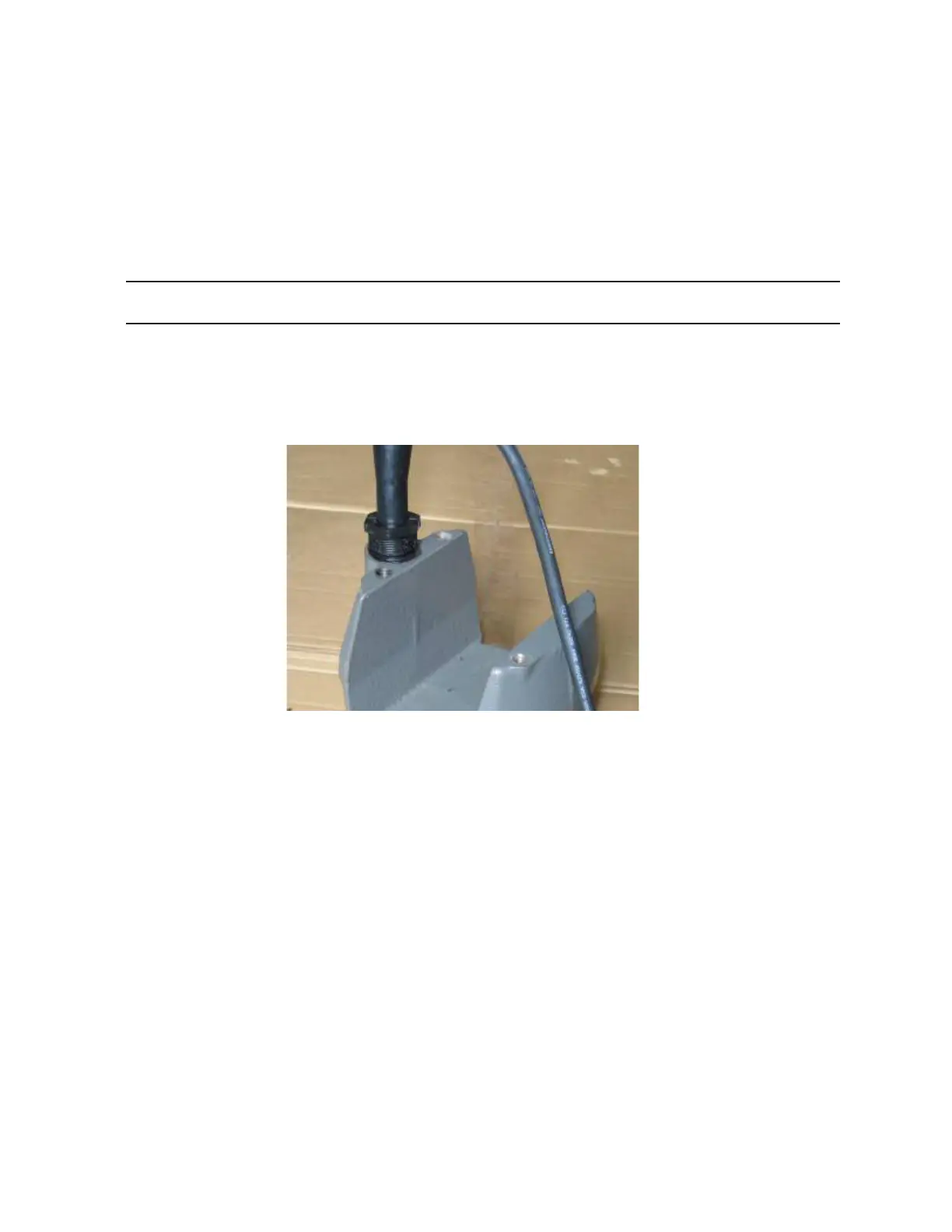

Figure 7-12
