IQ DP-4000
SECTION 4 - INSTALLATION AND STARTUP TD 17548B
15

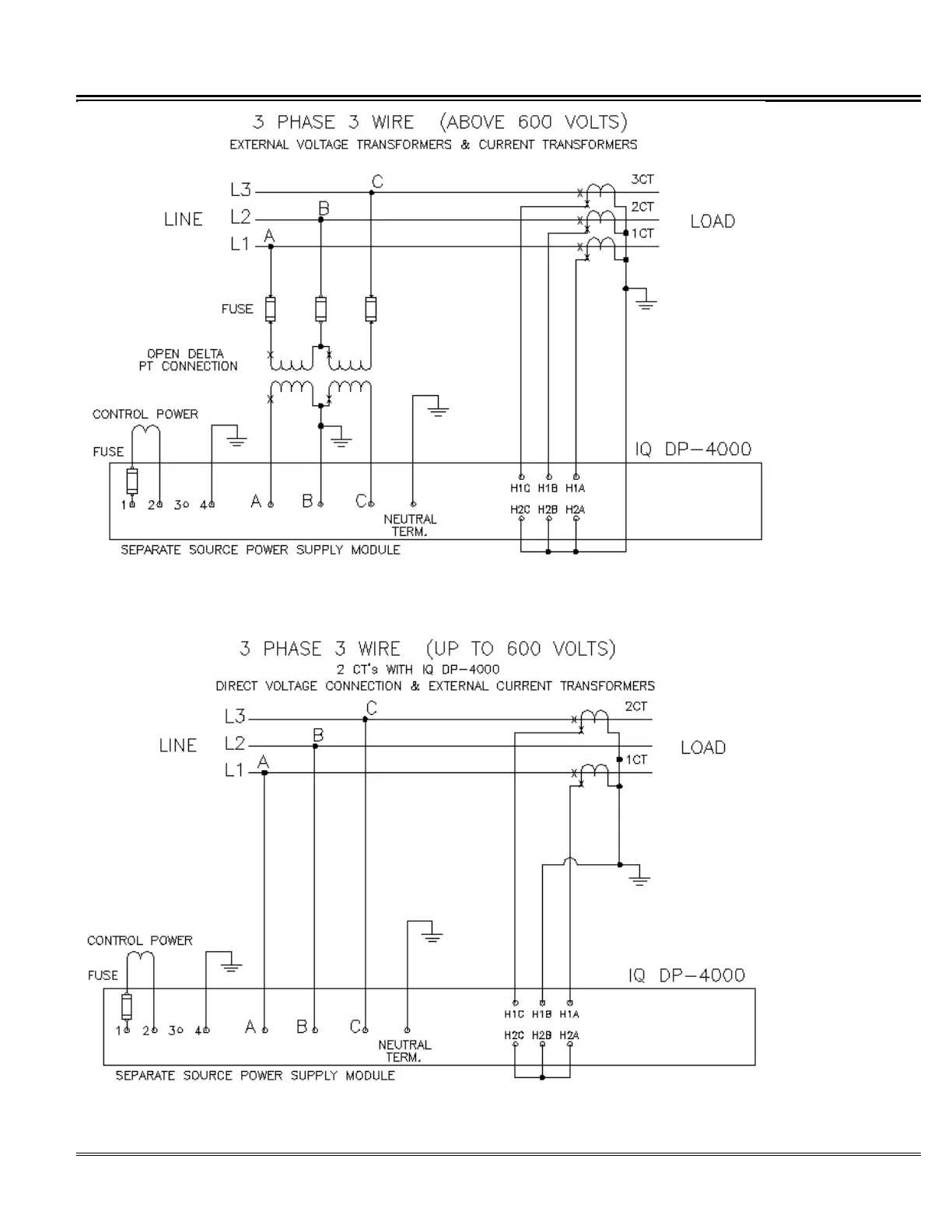

Figure 4.5 3-Phase, 3-Wire (above 600 volts) Wiring Diagram (Separate Source)
Figure 4.6 3-Phase, 3-Wire (up to 600 volts) Wiring Diagram (Separate Source, 2 CTs)
