Eaton IQDP4130 User Manual

IQ DP-4000
SECTION 5 - PROGRAMMING THE IQ DP-4000 TD 17548B
38
5.15.3.3 Load Shed Settings, Parameter Selection
The load shed feature activates the pulse initiator relay
when a user-selected parameter exceeds a
preprogrammed range (see 5.15.3.2 p.35). Select one
of the following parameters to monitor:
• Watts - Metered or Demand
• VA - Metered or Demand
• Metered Currents - I
A
, I
B
, I
C
, or average
• Demand Currents- I
A
, I
B
, I
C
, or average
See Table 5.Z for selecting the parameter to monitor
with the load shed feature.

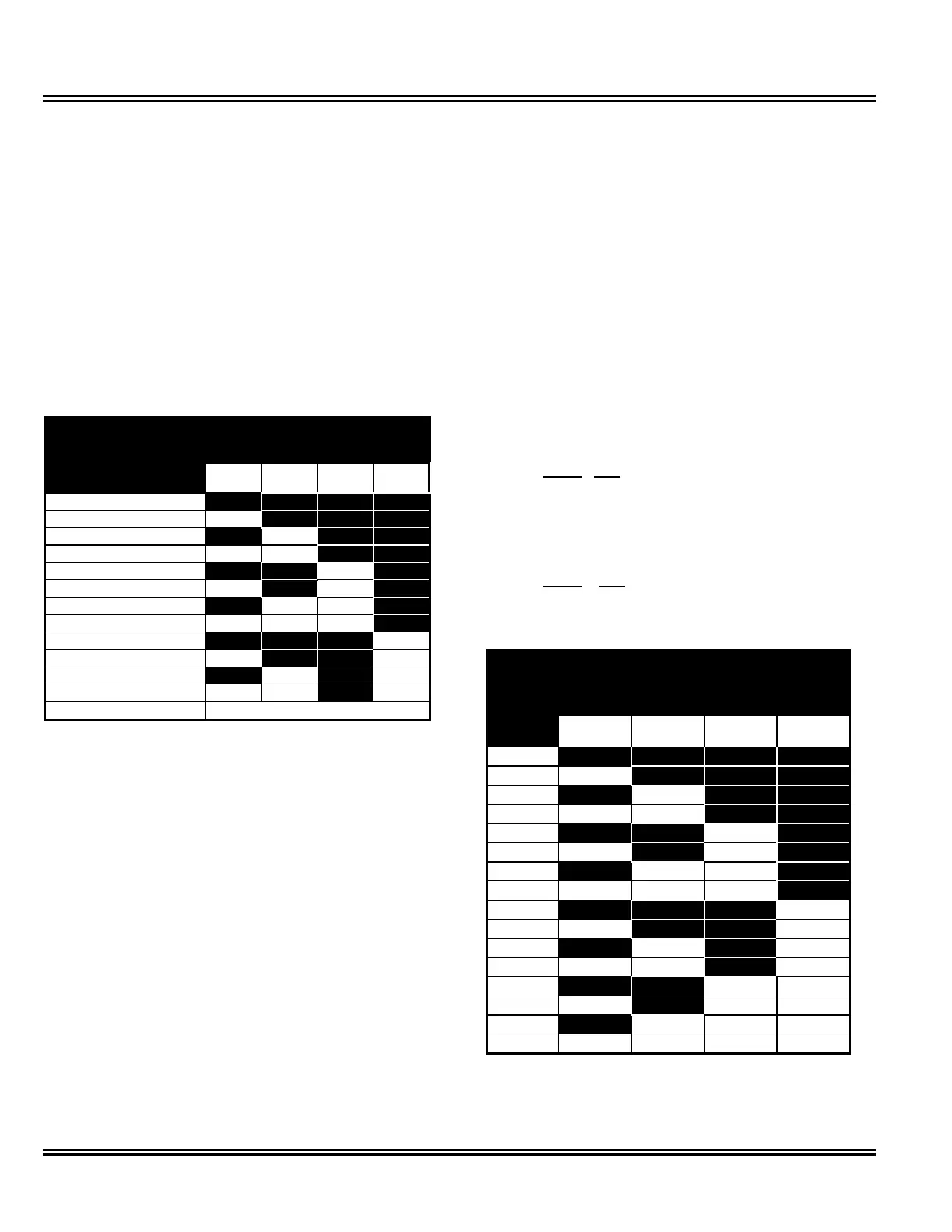

= OFF  = ON
Parameter S3.F Settings
(Set all 8 S2 switches)
Selection
S2.1 S2.2 S2.3 S2.4
Watts, metered off off off off
Watts, demand on off off off
VA, metered off on off off
VA, demand on on off off
I
A
Current, metered off off on off
I
B
Current, metered on off on off
I
C
Current, metered off on on off
Ave. Current, metered on on on off
I
A
Current, demand off off off on
I
B
Current, demand on off off on
I
C
Current, demand off on off on
Ave. Current, demand on on off on
Invalid Any other selection
Table 5.Z Load Shed Parameter Selection Settings
5.15.3.4 Pulse Initiator Settings, Rate Selection
For this function, select the rate at which the relay
changes state as a value of energy to track with the
pulse initiator. For example, if you choose Watt-hours
as the parameter to track with the pulse initiator, the IQ
DP-4000 will change the state of the relay at every
specified interval of Watt-hours. If 50 Watt-hours per
Pulse is selected, the relay changes state every time 50
Watt-hours accumulate.
The energy per pulse corresponds to the energy (in
units), at the secondary winding of the PTs and CTs.
Therefore, you must consider the user-selected CT and
PT ratios when selecting the Energy per Pulse value.
See Table 5.AA for selecting the rate at which the pulse
initiator relay changes state.
Example: A system has the following configuration:
CT = 1400:5 PT = 240:120
The IQ DP-4000 is monitoring a constant power of
16,800 Watts.
Watt-hours is selected as the parameter for the pulse
initiator setting.
The CT ratio is 1400 / 5 = 280
The PT ratio is 240 / 120 = 2
The power at the secondary of the CTs and PTs is:
16,800 Watts / 280 x 2 =
16,800 Watts / 560 =
30 Watts (or 30 Watt-hours in 1 hour)
• If the energy per pulse is set to 1, each pulse will
equal 560 Watt-hours.
1400 x 240
x 1 = 560 Watt-hours per pulse.
5 120
• If the energy per pulse is set to 7, each pulse will
equal 3,920 Watt-hours.
1400 x 240
x 7 = 3920 Watt-hours per pulse.
5 120
= OFF  = ON
Energy
per S3.F Settings
(Set all 8 S2 switches)
Pulse
S2.5 S2.6 S2.7 S2.8
1
off off off off
2
on off off off
3
off on off off
4
on on off off
5
off off on off
6
on off on off
7
off on on off
8
on on on off
9
off off off on
10
on off off on
20
off on off on
40
on on off on
50
off off on on
60
on off on on
80
off on on on
100
on on on on
Table 5.AA Pulse Initiator Rate Selection Settings
