SECTION 4 - INSTALLATION AND STARTUP TD 17548B
20

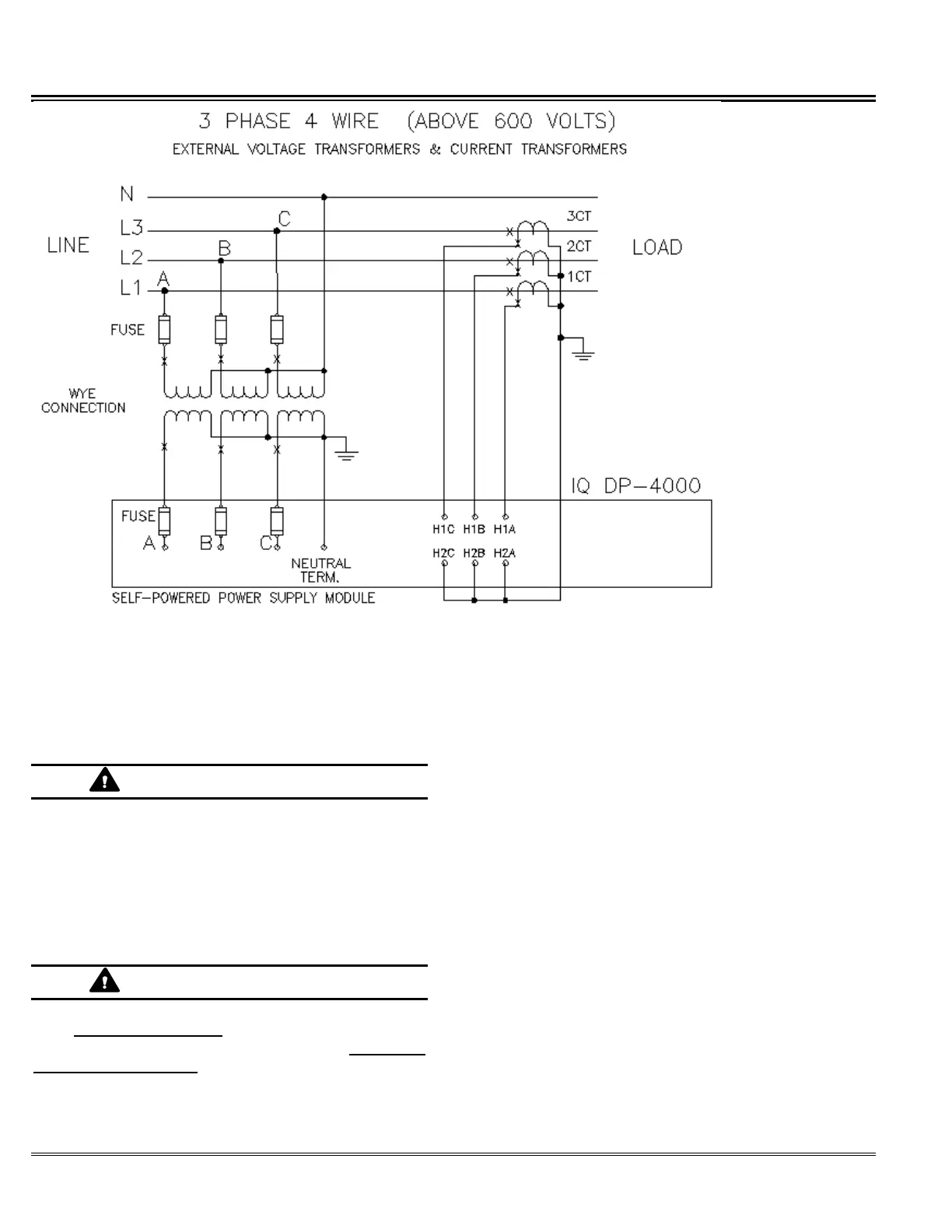

Figure 4.15 3-Phase, 4-Wire (above 600 volts) Wiring Diagram
4.5 INITIAL STARTUP
Follow the initial startup procedure before and when you
first apply AC power to the IQ DP-4000. Use this as a
checklist to be sure you do not miss any steps.
WARNING
THE FOLLOWING STARTUP PROCEDURES MUST
BE PERFORMED ONLY BY QUALIFIED PERSONNEL
WHO ARE FAMILIAR WITH THE IQ DP-4000 AND ITS
ASSOCIATED ELECTRICAL AND/OR MECHANICAL
EQUIPMENT. FAILURE TO OBSERVE THIS CAUTION
CAN RESULT IN SERIOUS INJURY OR EVEN
DEATH.
CAUTION
THE CHASSIS GROUND ON THE IQ DP-4000 OR
SEPARATE-SOURCE POWER MODULE MUST BE
WIRED TO GROUND FOR PROPER OPERATION.
FAILURE TO DO SO RESULTS IN INACCURATE
READINGS.
DURING INITIAL POWER APPLICATION
To apply AC power to the IQ DP-4000 for the first time:
1. Verify that the AC power is off.
2. Verify that the line-to-line voltages fall within the
correct range, as noted on the wiring plan drawing.
3. Check that all wiring is correct according to the
wiring plan drawings and that the chassis is
grounded.
4. When possible, lockout any foreign power sources
and disable the IQ DP-4000 until all other machines
or processes are started and thoroughly checked.
5. Restore AC power and verify the operator panel
functions, after an initial delay, as follows:
• The IA Amps LED lights.
• The Display Window shows the actual line
phase A amperes.
6. Set all Setpoint Switches according to the Master
Setpoint Record Sheet (Appendix B).
