Eaton Power Xpert 9395 UPS Installation and Operation Manual 164201764—Rev 14 105

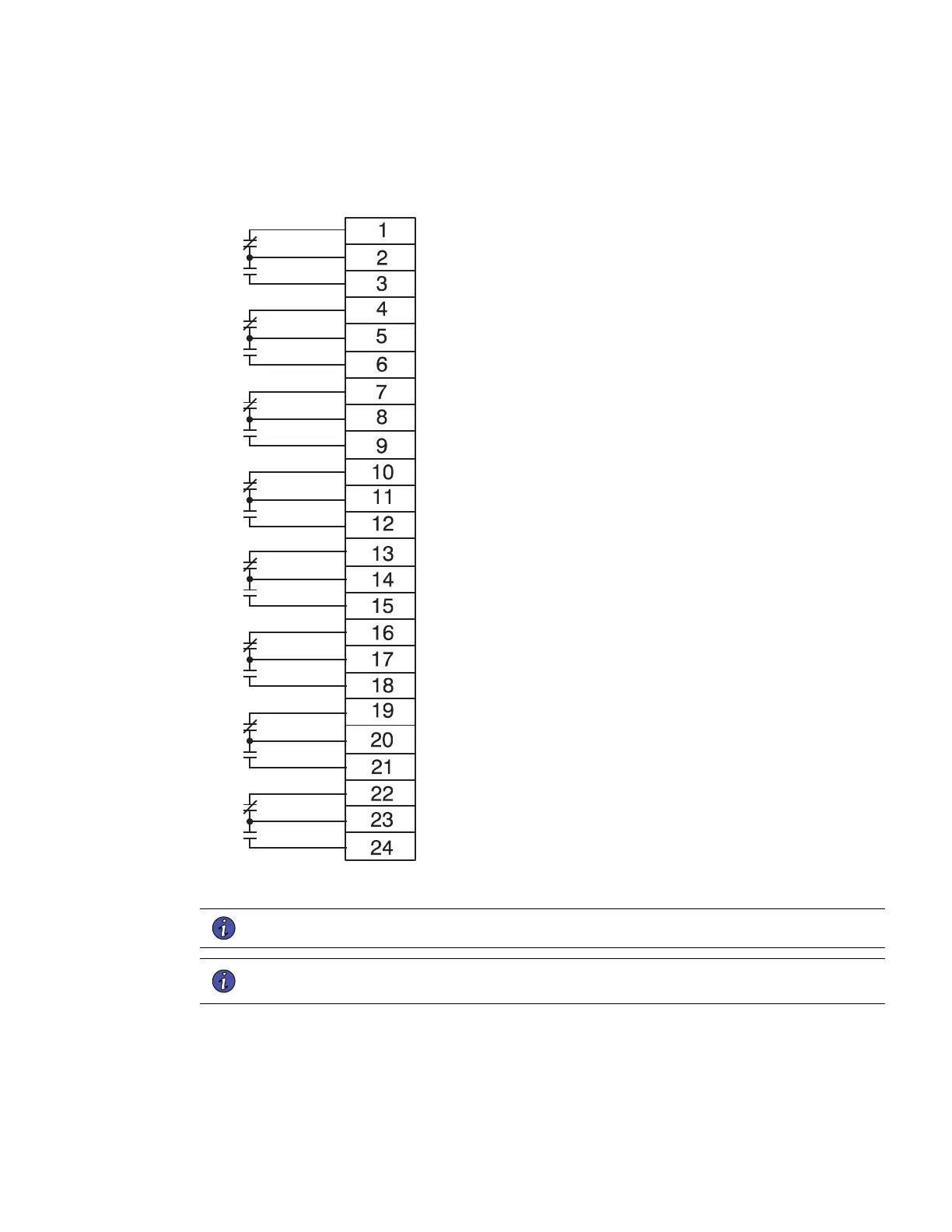

Figure 58. Supervisory Contact Module II TB2

System Normal

No Redundancy

On Generator

Bypass Not Available

On Battery

UPS Alarm

On Bypass

Shutdown Imminent

NOTE Supervisory contacts are rated at 2.0A at 28 Vdc or 120 Vac and 0.15A at 115 Vdc.

NOTE Supervisory contacts require an external power supply. Internal 24 Vdc is not capable of

supplying contact current.

Installing Options and Accessories
