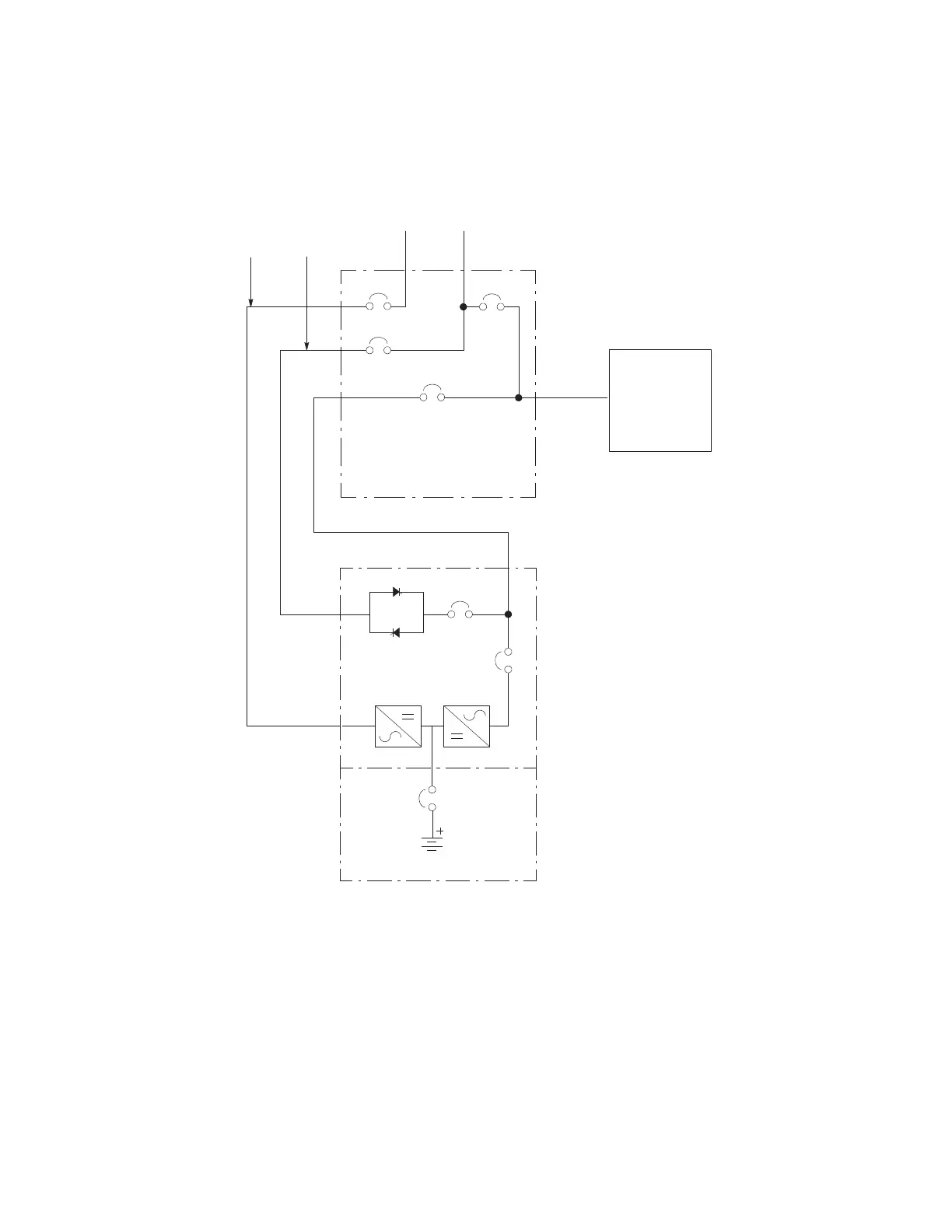

MAINTENANCE
BYPASS PANEL
Output
from
UPS
MIS
To UPS
Rectifier
Input
RIB: Rectifier Input Breaker
BIB: Bypass Input Breaker
MIS: Maintenance Isolation Breaker
MBP: Maintenance Bypass Breaker
MBP
Backfeed
Contactor
K5
K3
AC Input
Battery
Breaker
BATTERY CABIN ET
UPS
CRITICAL LOAD
DISTRIBUTION UNIT
NOTE Ifi nstallingamaintenance bypass, a minimum o f two separate feeds with upstream feeder breakers, or a single feed with two
upstream feeder breakers, mus t be provided: one for the UPS or rectifier input breaker (RIB) (ifi nstalled) and one for the maintenance
bypass input. DO NOT useasingle feed or a single feeder breaker to supply both the UPS or RIB and the maintenance bypass. If a b ypass
input breaker (BIB) is installed in the maintenance bypass andasingle-feed UPS is being installed, a single feed to the maintenance
bypass is acceptable for supplying both the UPS and the bypass.
Static
Switch
(Provided by Others)
Output
Contactor
AC Input
RIB
BIB
To UPS
Bypass
Input
To Next Page
