200 Eaton Power Xpert 9395 UPS Installation and Operation Manual 164201764—Rev 14

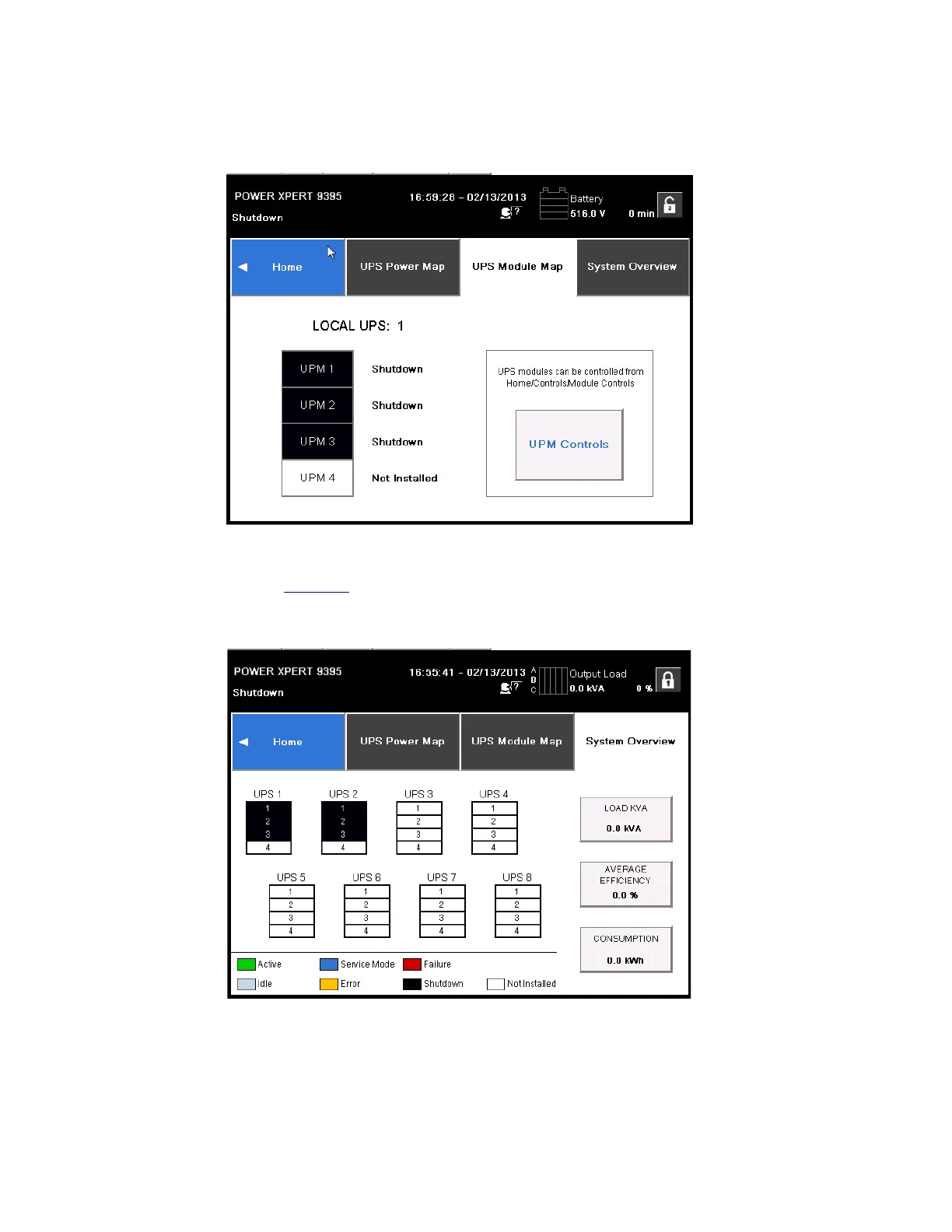

Figure 124. UPS Module Map Screen

77..66..2200 SSyysstteemm OOvveerrvviieeww SSccrreeeenn

The screen shown Figure 125 displays values for all UPS and UPM parameters.

Figure 125. System Overview Screen

UPS Operating Instructions
