78 Eaton Power Xpert 9395 UPS Installation and Operation Manual 164201764—Rev 14

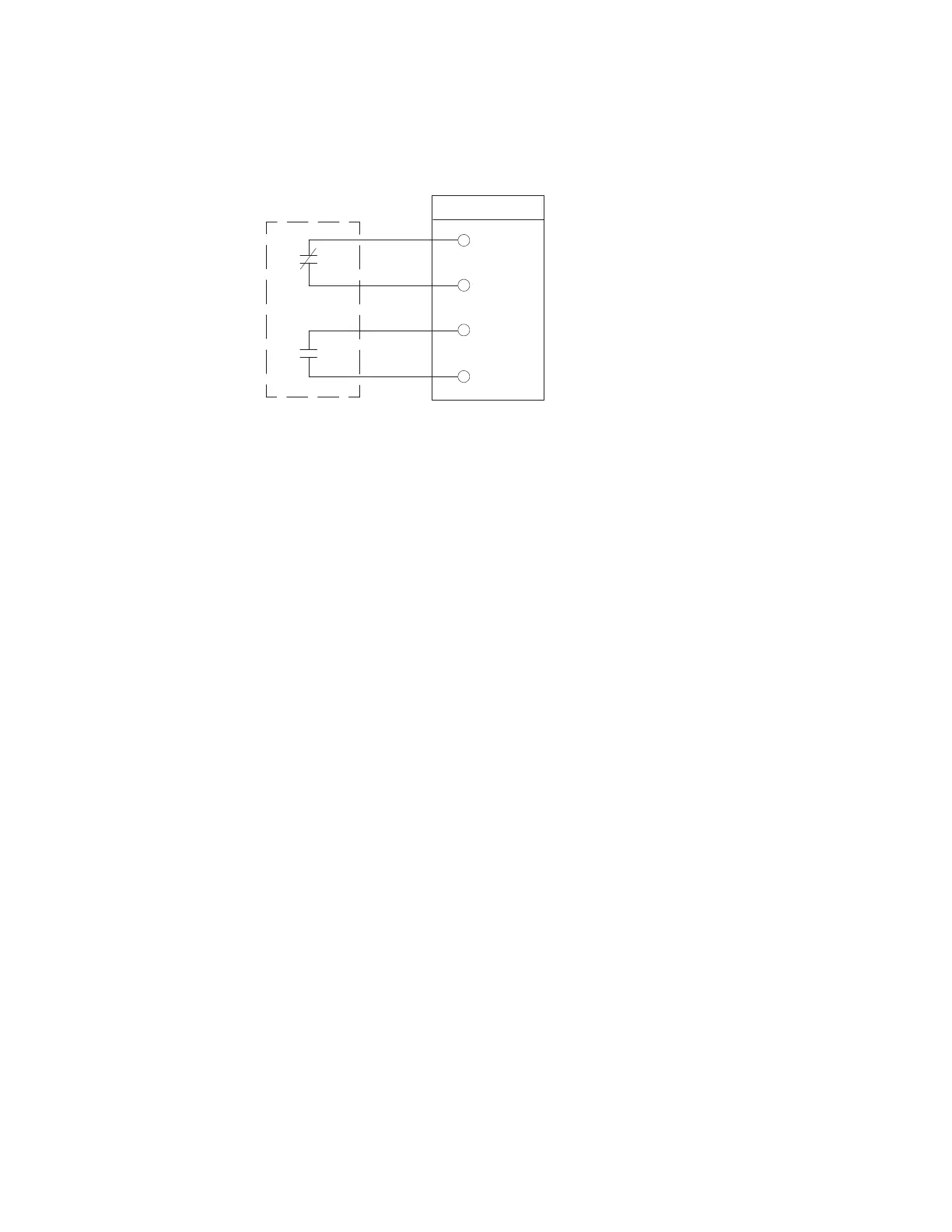

Figure 39. Typical Alarm Relay Connection

TB2

NOTE Alarm relay contacts have a maximum current rating of 5A and a switched voltage rating of 30 Vac and 28 Vdc.

NOTE Alarm relay normally-open and normally-closed return terminals are separated on the terminal board but are electrically in common.

NOTE Do not directly connect relay contacts to the mains related circuits. Reinforced insulation to the mains is required.

NOTE Alarm relay wiring should be a minimum of 22 AWG

Alarm Relay

Alarm Relay NC

Alarm Relay Common

Alarm Relay NO

Alarm Relay Common

UPS System Installation

Table of Contents16
Figure 40. Terminal Blocks TB1, TB2, and TB3 Connector Assignments100
Figure 41. Typical Battery Interface Connection - Common Battery System102
Figure 42. Typical Battery Interface Connection - Separate Battery System102
Figure 43. X-Slot Communication Bays103
Figure 44. REPO Switch104
Figure 45. Normally-Open REPO Switch Wiring105
Figure 46. Normally Closed REPO Switch Wiring106
Figure 47. Normally Closed and Normally Open REPO Switch Wiring106
Figure 48. Powerware Hot Sync CAN Bridge Card113
Figure 49. Powerware Hot Sync CAN Bridge Card Connections114
Figure 50. Distributed Bypass System CAN and Pull-Chain Simplified Interface Wiring116
Figure 51. Distributed Bypass System UPS CAN Wiring Without Mobs116
Figure 52. Distributed Bypass Pull-Chain Wiring Without Mobs117
Figure 53. Distributed Bypass Pull-Chain Wiring with Mobs119
Figure 54. Remote Monitor Panel II and Remote Monitor Panel II Terminal Locations121
Figure 55. Remote Monitor Panel II, Relay Interface Module II, or Supervisory Contact Module II Wiring122
Figure 56. Figure 5-9J1, J2, J3, and J4 15-Pin D-Sub Connectors124
Figure 57. Supervisory Contact Module II Terminal Location125
Figure 58. Supervisory Contact Module II TB2126
Figure 59. Remote Monitor Panel II Dimensions127
Figure 60. Relay Interface Module II Dimensions128
Figure 61. Supervisory Contact Module II Dimensions129
Figure 62. Main Elements of the UPS System130
Figure 63. Path of Current through the UPS in Online Mode132
Figure 64. Path of Current through the UPS in Bypass Mode135
Figure 65. Path of Current through the UPS in Battery Mode136
Figure 66. UPS System - Four UPM, Common Rectifier Feed, Common Battery, Dual-Feed Configuration, Continuous Static Switch138
Figure 67. UPS System - Four UPM, Common Rectifier Feed, Separate Battery, Dual-Feed Configuration139
Figure 68. UPS System - Three UPM, Common Rectifier Feed, Common Battery, Dual-Feed Configuration140
Figure 69. UPS System - Three UPM, Common Rectifier Feed, Separate Battery, Dual-Feed Configuration141
Figure 70. UPS System - Four UPM Common Rectifier Feed, Common Battery, IOM Configuration142
Figure 71. UPS System - Four UPM Common Rectifier Feed, Separate Battery, IOM Configuration143
Figure 72. Simplified Dual-Feed UPS with Maintenance Bypass Panel144
Figure 73. Path of Current through the Upss in Online Mode - Distributed Bypass147
Figure 74. Path of Current through the Upss in Bypass Mode - Distributed Bypass148
Figure 75. Path of Current through the Upss in Battery Mode - Distributed Bypass149
Figure 76. Typical Distributed Bypass System (1+1 and 2+0 Configurations)151
Figure 77. Typical Distributed Bypass System (2+1 and 3+0 Configurations)152
Figure 78. Typical Distributed Bypass System (3+1 and 4+0 Configurations)153
Figure 79. UPS Controls and Indicators - Continuous Static Switch154
Figure 80. UPS Control Panel155
Figure 81. Parts of the LCD157
Figure 82. Main Menu and MIMIC Screen (Online Mode)158
Figure 83. Load off Screen163
Figure 84. Typical System Status Screen163
Figure 85. REPO Operation180
Figure 86. UPS Color Touchscreen Control Panel (Typical)198
Figure 87. UPS Color Touchscreen Control Panel Screen and Indicators(Typical)199
Figure 88. Parts of the Touch Screen201
Figure 89. Sign in or Password Request Screen202
Table 35. Security Levels and Functions202
Table 36. Display Function Menu Map202
Figure 90. Home Screen203
Figure 91. Main Menu and Power Maps Screen (Online Mode)204
Figure 92. Output Kva Screen from Home Screen204
Figure 93. Average Efficiency Screen from Home Screen205
Figure 94. Consumption Screen from Home Screen205
Figure 95. Bypass Screen206
Figure 96. Typical Command Confirmation Screen (Charger Off)206
Figure 97. Meters Summary Screen207
Figure 98. Input Meters Screen207
Figure 99. Bypass Screen208
Figure 100. Output Meters Screen208
Figure 101. Input Meters Detail Screen209
Figure 102. Select Source Screen209
Figure 103. Battery Meters Screen210
Figure 104. Battery Log Screen210
Figure 105. Battery Log Detail211
Figure 106. Battery Log Summary Screen211
Figure 107. System Events Screen212
Figure 108. User Log Screen213
Figure 109. User Log Detail Screen213
Figure 110. System Status Screen214
Figure 111. Module Controls Screen214
Figure 112. Module Control Detail Screen215
Figure 113. Online Mode Metering Method Option Screen215
Figure 114. Bypass Mode Metering Method Option Screen216
Figure 115. Settings Screen216
Figure 116. Configuration Options Screen217
Figure 117. Energy Advantage Architecture (EAA) Screen217
Figure 118. Disable ESS Screen218
Figure 119. HRS Metering Screen218
Figure 120. High Alert Timer Screen219
Figure 121. Statistics Basic Screen219
Figure 122. Statistics Data Detail Screen220
Figure 123. ESS Comparison Screen220
Figure 124. UPS Module Map Screen221
Figure 125. System Overview Screen221
Figure 126. Optional X-Slot Cards224
Figure 127. Remote Monitor Panel II226
Table 37. RMP II Status Indicators227
Figure 128. Relay Interface Module II228
Table 38. Customer Interface Connectors228
Figure 129. Supervisory Contact Module II229
Table 39. SCM II Status Indicators and Connections229
Table 40. UPS Filter Sizes231
Figure 130. ISBM Section Air Filter Locations - Continuous Static Switch232
Figure 131. FI-UPM Air Filter Location233
Figure 132. FI-UPM Air Filter Location234
