Affinity User Guide 27
Issue Number: 5 www.controltechniques.com
3.3.4 E12/E54 and E12/E66 cover removal / installation

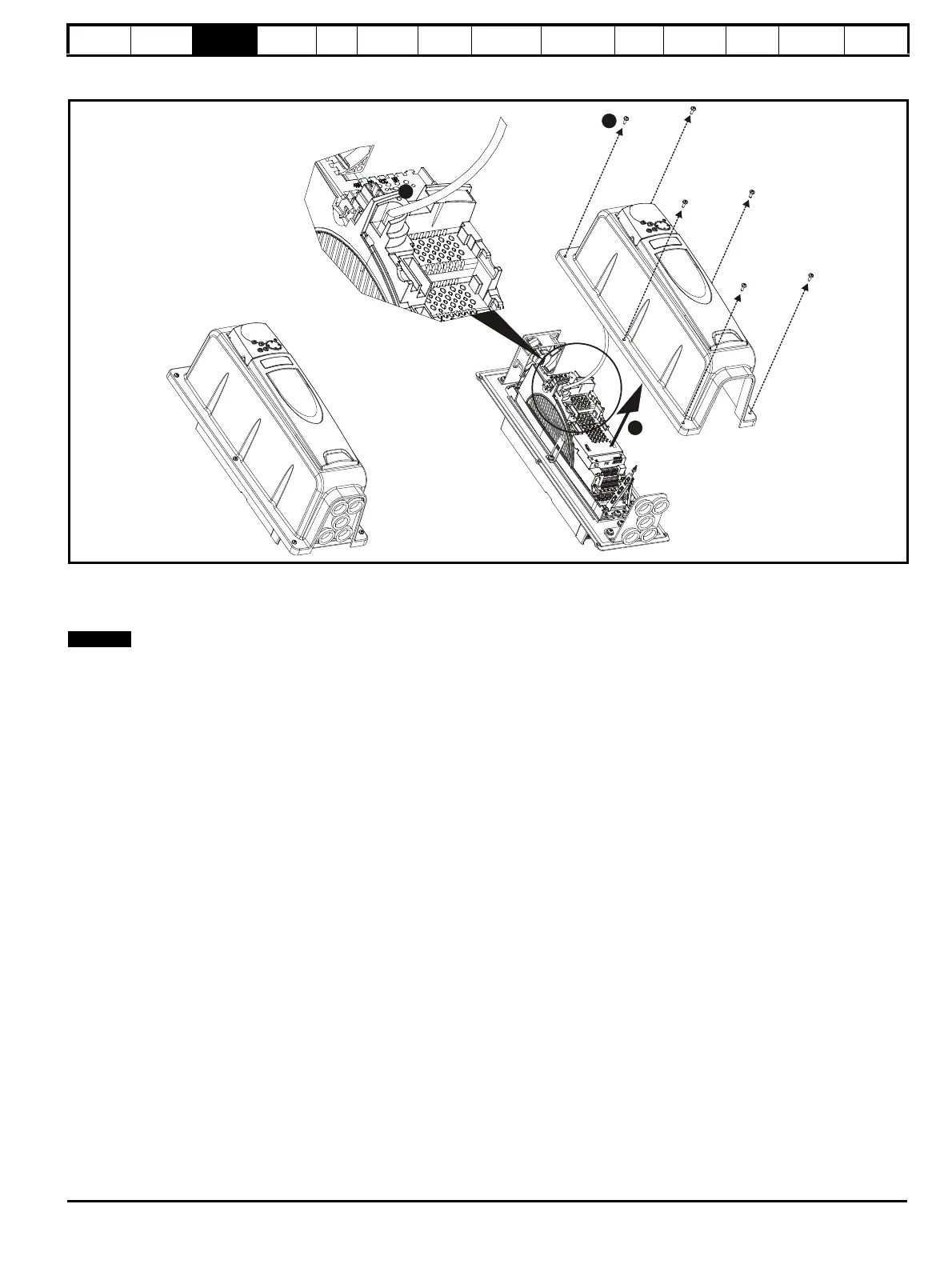

Figure 3-12 Removal of the top cover (size 1 to 4) E12/E54
1. Undo 6 x M5 screws
2. Remove cover as shown
3. Disconnect the BA Keypad connector from the RJ 45 serial port
4. Reverse the above procedure to replace the cover
E12/E66 drives are only available in sizes 1 to 3
