1592001530 XC15-35CX EN r1.2 11.04.2017 XC15-35CX 13/40
2. Enter the “Pr2” programming level by keeping SET+DOWN pressed for 7 sec
3. Select par. Pxi (reading value corresponding to 0.5V)
4. Use SET button and change the lower value by using UP or DOWN buttons
5. Press SET button con confirm and save the new value. After that the PxE (reading value
corresponding to 4.5V) will be showed on the display
6. Use SET button and change the higher value by using UP or DOWN buttons
7. Press SET button con confirm and save the new value. After that the next parameter will
be showed on the display.
Follow the above steps also for pressure probe P2 range modification (par. P2i and P2E).
CONTROL WITH PRESSURE GAUGE:
Check that the measurements of the probes (both suction and discharge) correspond to the
pressure gauge reading. Generally, the pressure transducers do not require recalibration.

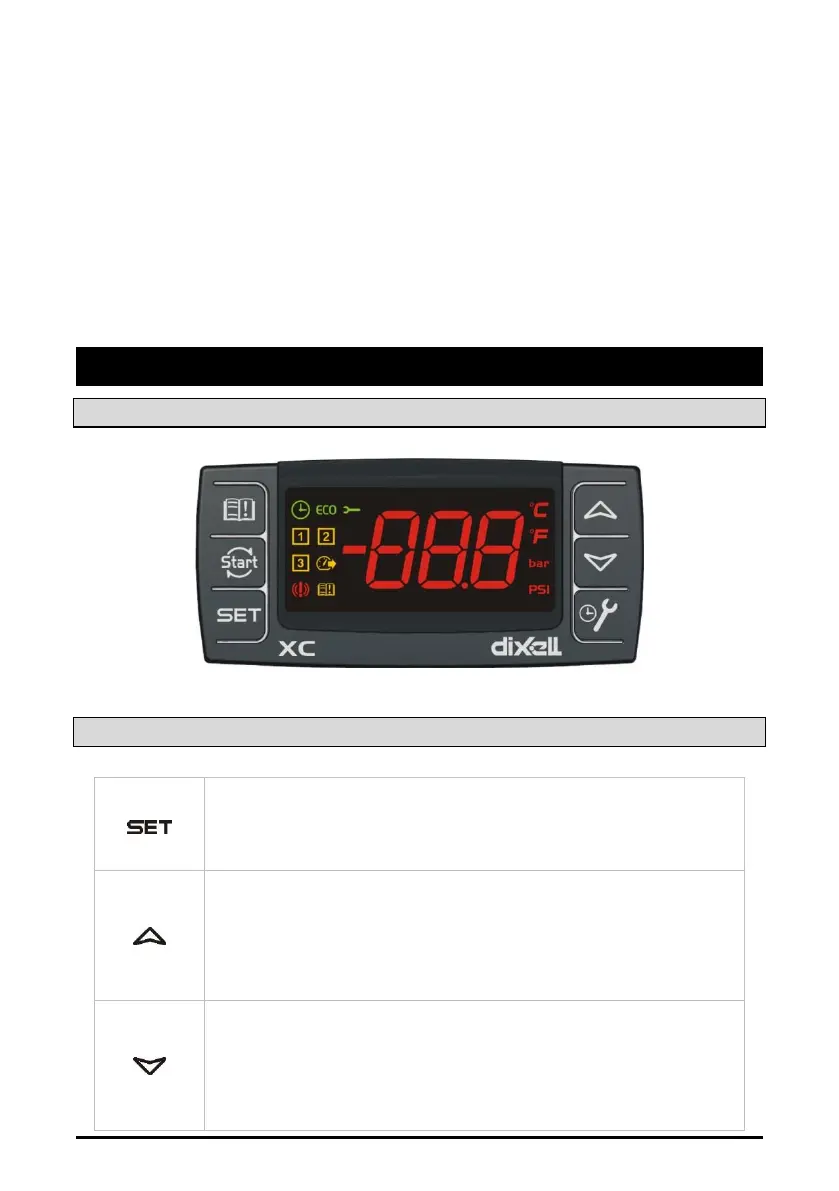

7. USER INTERFACE
7.1 DISPLAY
7.2 KEYBOARD
Standard visualization:
It is used to see and modify the SETPOINT values. In programming
mode, it is used to modify a parameter or confirm an operation
ALARM menu:
Keep it pressed for 3 sec in order to reset an alarm
(UP) Programming mode:
It is used to browse the parameter list
With inserted HOT-KEY:
start the parameter UPLOAD function (from HOTKEY to internal
memory)
INFO menu:
It is used to browse the INFO menu
(DOWN) Programming mode:
It is used to browse the parameter list
With inserted HOT-KEY:
start the parameter DOWNLOAD function (from internal memory to the
HOTKEY)
INFO menu:
It is used to browse the INFO menu
