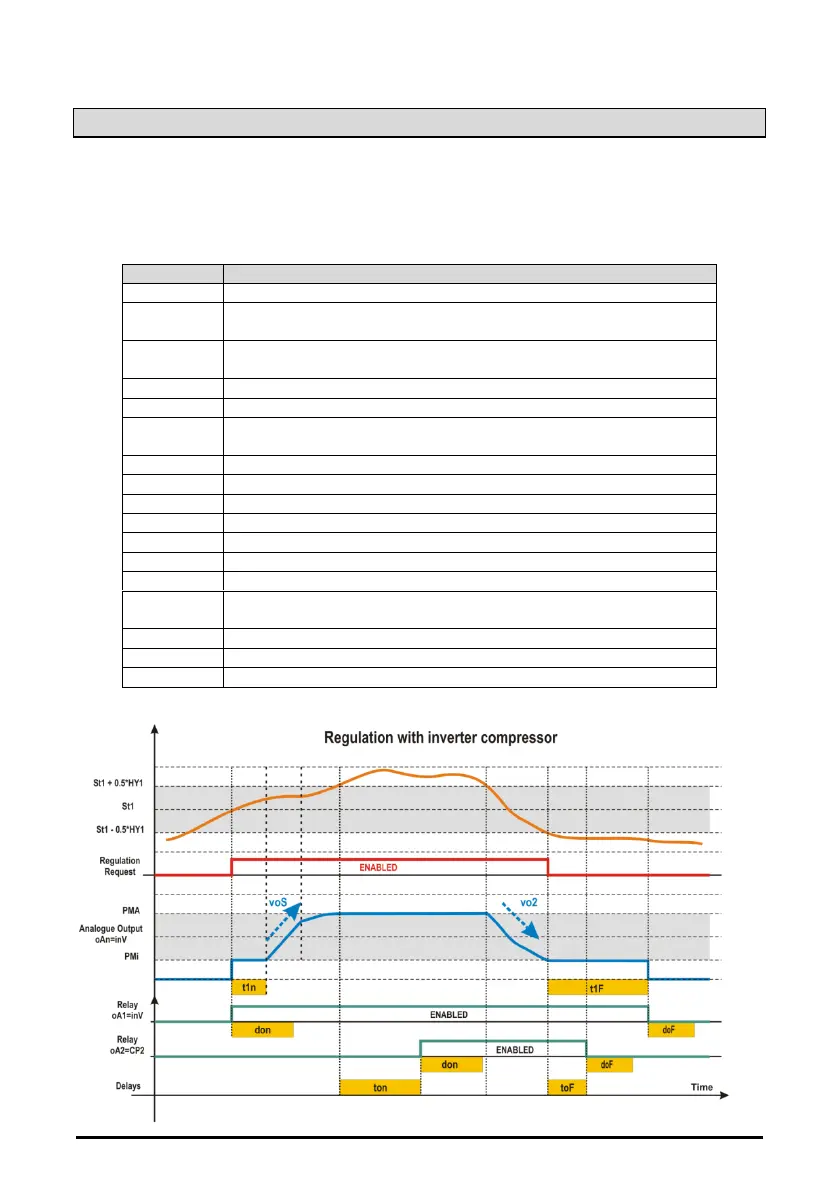

16.2 INVERTER CONTROLLED COMPRESSOR
The management of inverter controlled compressor requires setting the output as follows:
- oAn=inV
- oA1=inV
Other parameters related to the regulation are described in the following table:
Parameter
Description
HY1
Regulation band for St1
rS1
Differential HY1: it is used to move the regulation band above and
below the St1 value.
inC
Integration time for Proportional-Integral regulator (PI)
If inC=0 the regulator will work as a pure proportional type.
rFE
Filter for PI-regulator enabled
Sut
Interval with compressor at maximum power after start-up.
tdG
Interval of time used to calculate the pressure/temperature
average value for regulation
PMi
Minimum compressor power (in percentage)
PMA
Maximum compressor power (in percentage)
ton
Delay before activating a second compressor
toF
Delay before deactivating a second compressor
voS
Increment for compressor power
vo2
Decrement for compressor power
t1n
Interval of time with compressor power at PMi after start-up
t1F
Interval of time with compressor power at PMi before stopping the
regulation
MnP
Minimum power level for lubrification
tMi
Interval of time with compressor power below the MnP value
tMA
Interval of time with compressor power at PMA after tMi
