Installation Guide
33
e

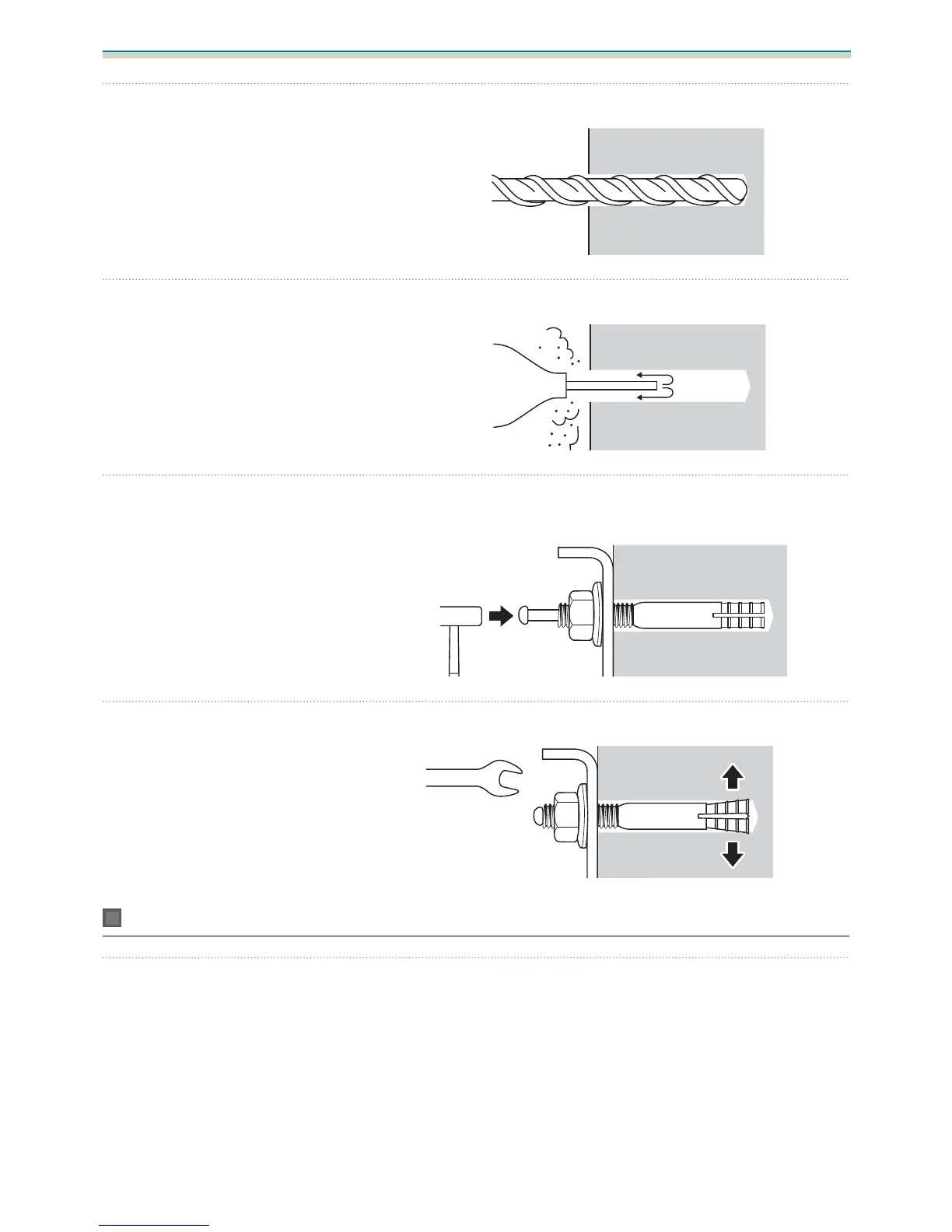

Drill the holes in the wall
Drill diameter: 10.5 mm
Pilot hole depth: 45 mm
Anchor hole depth: 40 mm
f
Remove the template sheet, and clean the concrete dust from the holes with a dust pump
g
Position the wall plate on the wall and insert M10 x 60 mm commercially available anchors
into the holes
Attach the nut and tap it with a hammer
until the core touches the top of the an-
chor.
h
Tighten the nut with a commercially available spanner to secure the wall plate to the wall
Determine the projection distance, and then pass the cables through the setting plate
a
Check the following values in the projection distance table
•
Numbers on the arm slide scale (b)
•
Distance from surface of screen to wall (x)
s
"Projection Distance Table" p.12
To Next Page
