Installation Guide
8
Specifications
Setting plate
Item Specification Remark Reference
Page
Setting plate weight Approx. 7.2 kg Setting plate (2.9 kg), 3-axis adjustment
unit (1.0 kg), slide plate (0.6 kg), wall plate
(2.0 kg), wall plate cover and end cap (0.7
kg)
Maximum load capacity 9.5 kg
Forward/backward slide ad-
justment range
13 to 350 mm Arm slide adjustment range: 0 to 263 mm
Adjustment for 3-axis adjustment unit in-
stallation position: 87 mm
See the fig-
ure below
Vertical slide adjustment range ±38 mm See the fig-
ure below
Horizontal roll adjustment
range
±3° Fine adjustments possible with adjust-
ment dial
s p.40
Horizontal rotation adjustment
range
±8° Fine adjustments possible with adjust-
ment dial
s p.40
Vertical tilt adjustment range ±3° Fine adjustments possible with adjust-
ment dial
s p.40
Horizontal slide adjustment
range
±45 mm See the fig-
ure below

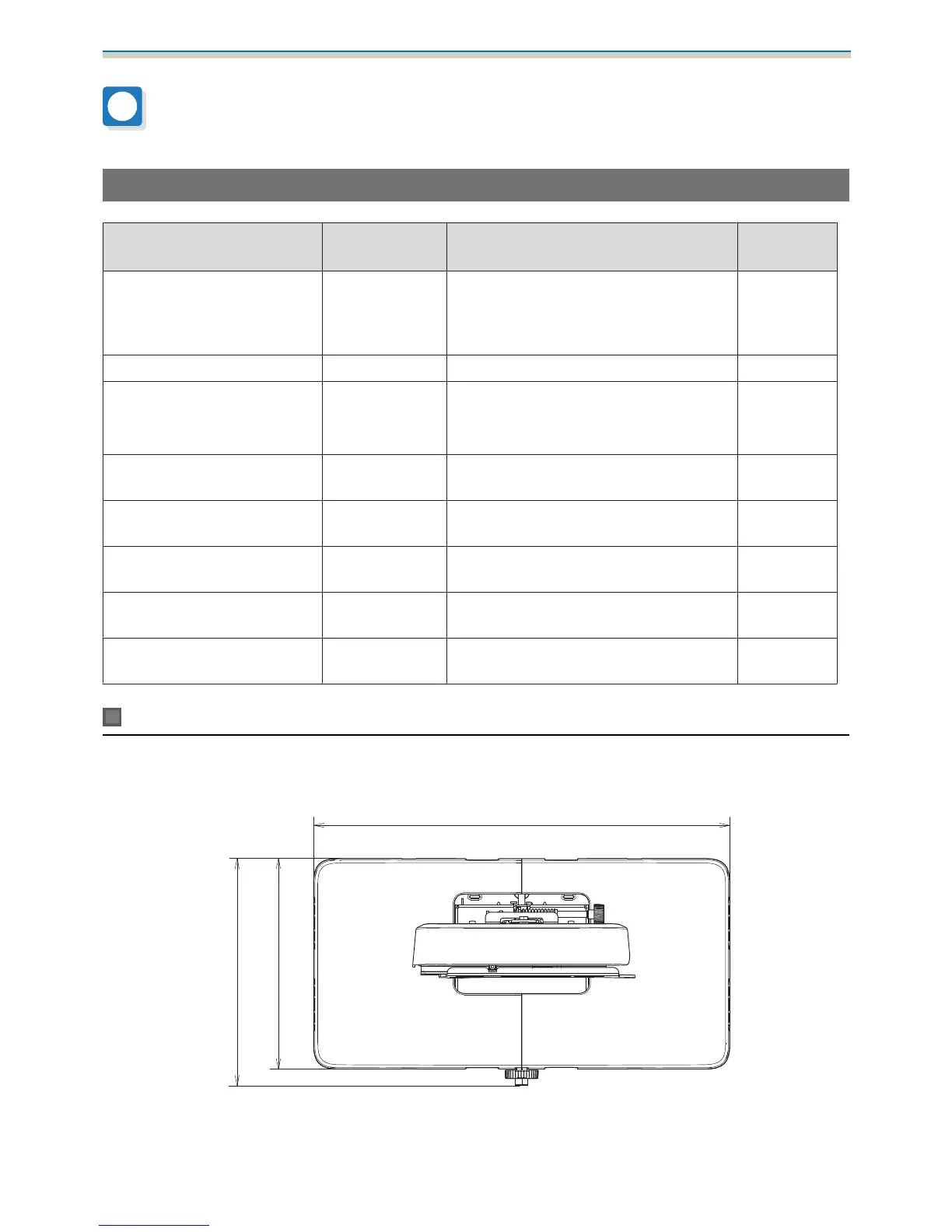

Wall plate cover
The following dimensions apply when attaching the wall plate cover.
[Unit: mm]
505.7
255.7
277.1
When installing the wall plate cover, you need a space of approximately 263 mm from the center of the wall
plate to the left side, and approximately 253 mm to the right side.
