Epson EH-TW9100W User Manual

Introduction
9

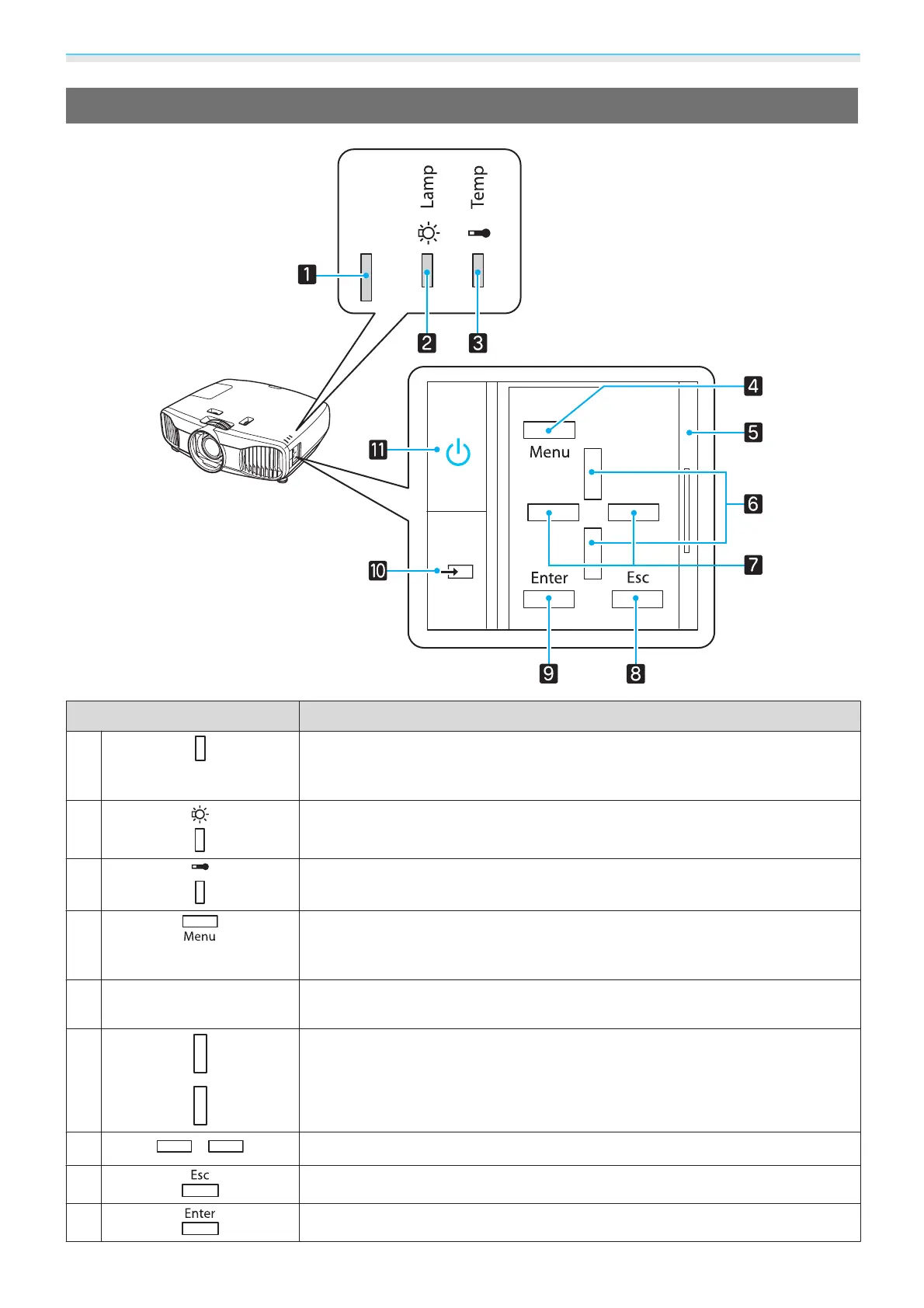

Control Panel
Buttons/Indicators Function
a
Flashes to indicate warm-up in progress or cool-down in progress. Shows the
projector's status through a combination of other indicators lit and flashing.
s p.79
b
Flashes orange when it is time to replace the lamp. Shows the projector's errors
through a combination of other indicators lit and flashing.
s p.79
c
Flashes orange if the internal temperature is too high. Shows the projector's
errors through a combination of other indicators lit and flashing.
s p.79
d
Displays and closes the configuration menu.
On the configuration menu, you can make adjustments and settings for Signal,
Image, Input Signal, and so on.
s p.67
e
Control panel cover
Cover for the control panel. When you want to use the control panel, grip the
knob and slide the cover open.
s p.30
f
Selects the adjustment value for the keystone correction and for menu items.
s p.30
g
Selects adjustment values for menu items. s p.67
h
Returns to the previous menu level when a menu is displayed. s p.67
i
Selects functions and settings when a menu is displayed. s p.67

Epson EH-TW9100W Specifications

General

RS-232 ports	1
Matrix size	0.74 \
White light output	2400 ANSI lumens
Projection distance	- m
Projection technology	3LCD
Screen size compatibility	30 - 300 \
Projection distance (tele)	1.9 - 19.2 m
Projection distance (wide)	0.9 - 9 m
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-30 - 30 °
Full HD	Yes
Color modes (2D)	Dynamic, Cinema
Supported 3D formats	Side by side, Top and bottom, Frame packing
Analog signal format system	-
Focus	Manual
Focal length range	23 - 47 mm
Aperture range (F-F)	2 - 3.17
Vertical lens shift range	-96.3 - 96.3 %
Horizontal lens shift range	-47.1 - 47.1 %
Lamp type	E-TORL
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	22 dB
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.39 W
Power consumption (typical)	340 W
Power consumption (economy mode)	287 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	2244 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	12 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	395 mm
Width	466 mm
Height	140 mm
Weight	8400 g
Package depth	573 mm
Package width	531 mm
Package height	350 mm
Package weight	13050 g
