Epson EH-TW9100W User Manual

Preparing
20
Connecting to a Computer

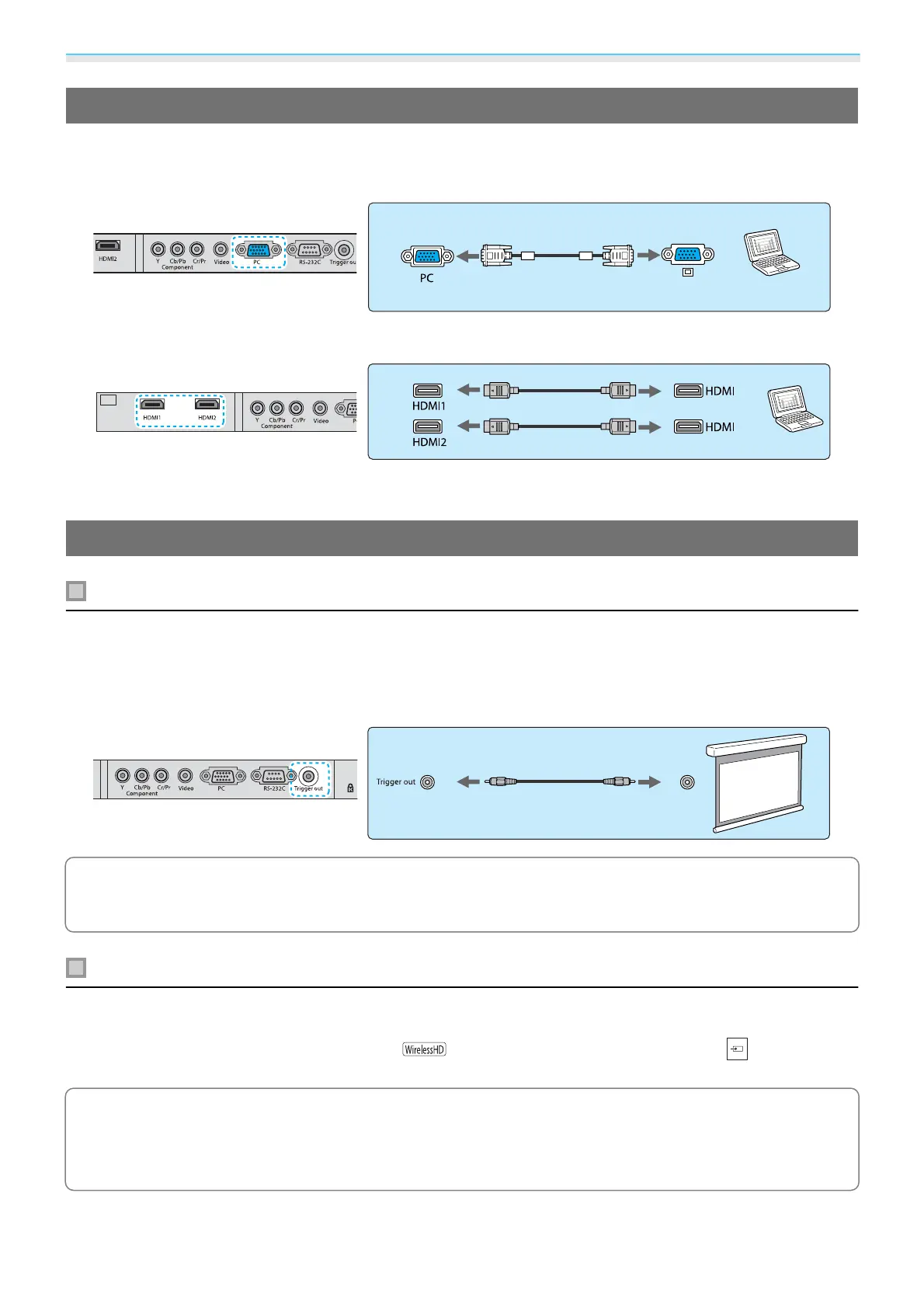

To project images from a computer, connect the computer using one of the following methods.
When using a computer cable
When using an HDMI cable
Fix the HDMI cable in place using the HDMI cable clamp. s p.21
Connecting to External Devices
Connecting to the Trigger out port
To connect external devices such as motorized screens, connect a mini-jack stereo cable (3.5 mm) to the
Trigger Out port.
When set to on, a signal (12 V DC) is output from this port to communicate the projector's status (on or off)
to connected devices such as electric screens.
c
When using the Trigger out port, set the Trigger Out function. s Extended - Operation - Trigger
Out p.75
Connecting WirelessHD devices (EH-TW9100W/EH-TW8100W only)
The projector receives transmissions from the WirelessHD Transmitter, and projects the images. s p.53
Change the projected image by pressing the
button on the remote control or the button on the
control panel.
c
•
When receiving WirelessHD images, make sure WirelessHD is set to On. s Settings -
WirelessHD p.73
•
You can change which device is displayed by selecting a device from Device Connections in HDMI
Link.
s HDMI Link-Device Connections p.64

Epson EH-TW9100W Specifications

General

RS-232 ports	1
Matrix size	0.74 \
White light output	2400 ANSI lumens
Projection distance	- m
Projection technology	3LCD
Screen size compatibility	30 - 300 \
Projection distance (tele)	1.9 - 19.2 m
Projection distance (wide)	0.9 - 9 m
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-30 - 30 °
Full HD	Yes
Color modes (2D)	Dynamic, Cinema
Supported 3D formats	Side by side, Top and bottom, Frame packing
Analog signal format system	-
Focus	Manual
Focal length range	23 - 47 mm
Aperture range (F-F)	2 - 3.17
Vertical lens shift range	-96.3 - 96.3 %
Horizontal lens shift range	-47.1 - 47.1 %
Lamp type	E-TORL
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	22 dB
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.39 W
Power consumption (typical)	340 W
Power consumption (economy mode)	287 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	2244 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	12 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	395 mm
Width	466 mm
Height	140 mm
Weight	8400 g
Package depth	573 mm
Package width	531 mm
Package height	350 mm
Package weight	13050 g
