Epson EH-TW9100W User Manual

Basic Operations
29

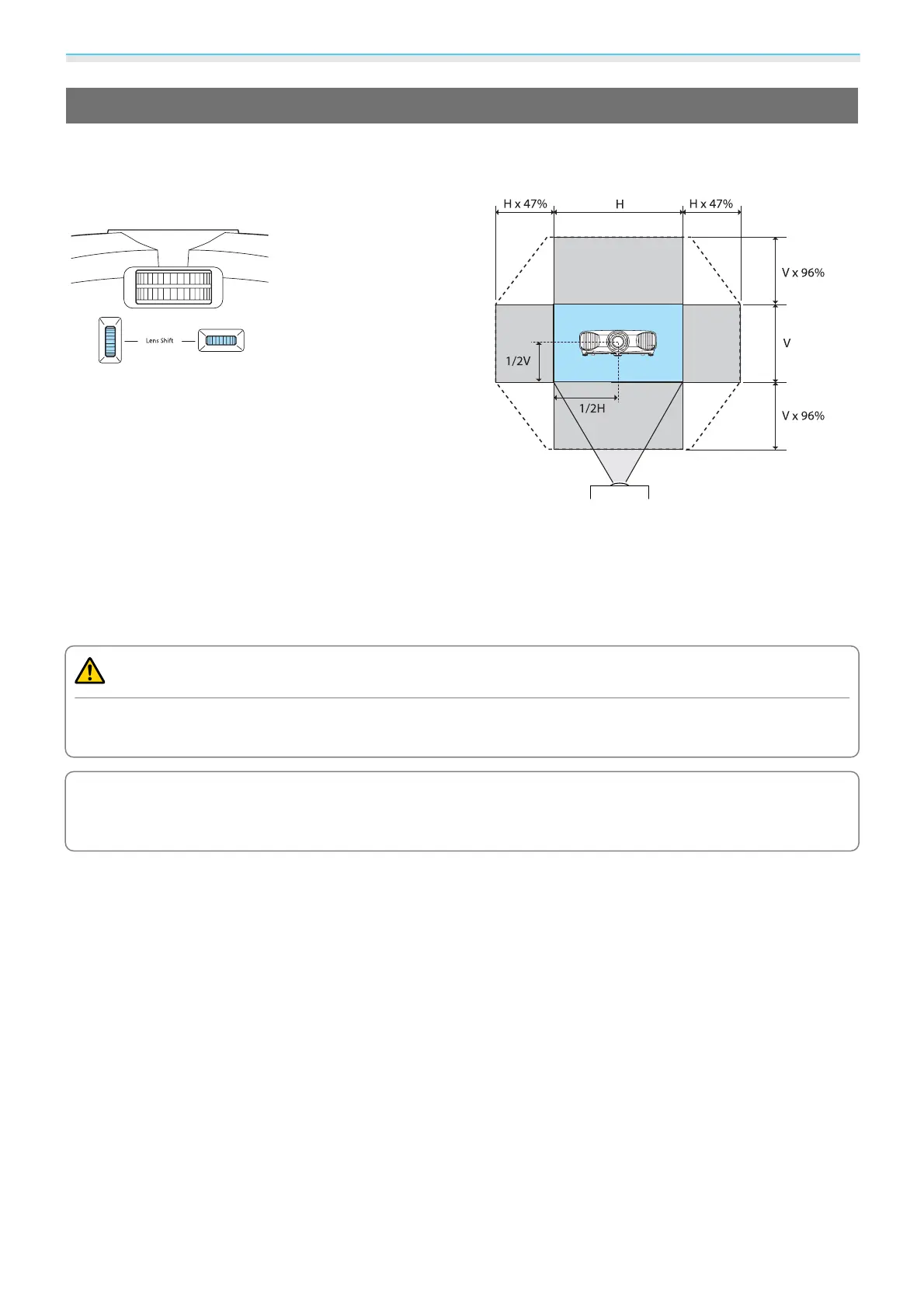

Adjusting the Position of the Projected Image (Lens Shift)
If the projector cannot be setup in front of the screen, you can adjust the position of the image by using lens
shift.
Make adjustments using the lens shift dial.
You can adjust the position up, down, left, and right
within the range of the dotted line shown in the illus-
tration on the right.
The vertical (V) position (up and down) can be adjusted
by up to 96% of the height of the screen, while the hor-
izontal (H) position (right and left) can be adjusted by
up to 47% of the width of the screen.
To reset the image position to the center, return the dial
to the central position.
To locate the center of the lens shift range, turn the lens
shift dial until you hear it click.
Caution
When transporting the projector, return the lens to the central position. If you transport the projector when
the lens is shifted up, down, left, or right, the lens shift mechanism could be damaged.
c
If keystone distortion occurs when projecting at an angle by using lens shift, you may not be able
to correct the distortion completely. When using lens shift, setup the projector so that it is parallel
to the screen, and then only use lens shift to adjust the position.

Epson EH-TW9100W Specifications

General

RS-232 ports	1
Matrix size	0.74 \
White light output	2400 ANSI lumens
Projection distance	- m
Projection technology	3LCD
Screen size compatibility	30 - 300 \
Projection distance (tele)	1.9 - 19.2 m
Projection distance (wide)	0.9 - 9 m
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-30 - 30 °
Full HD	Yes
Color modes (2D)	Dynamic, Cinema
Supported 3D formats	Side by side, Top and bottom, Frame packing
Analog signal format system	-
Focus	Manual
Focal length range	23 - 47 mm
Aperture range (F-F)	2 - 3.17
Vertical lens shift range	-96.3 - 96.3 %
Horizontal lens shift range	-47.1 - 47.1 %
Lamp type	E-TORL
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	22 dB
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.39 W
Power consumption (typical)	340 W
Power consumption (economy mode)	287 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	2244 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	12 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	395 mm
Width	466 mm
Height	140 mm
Weight	8400 g
Package depth	573 mm
Package width	531 mm
Package height	350 mm
Package weight	13050 g
