Epson EH-TW9100W User Manual

Introduction
14

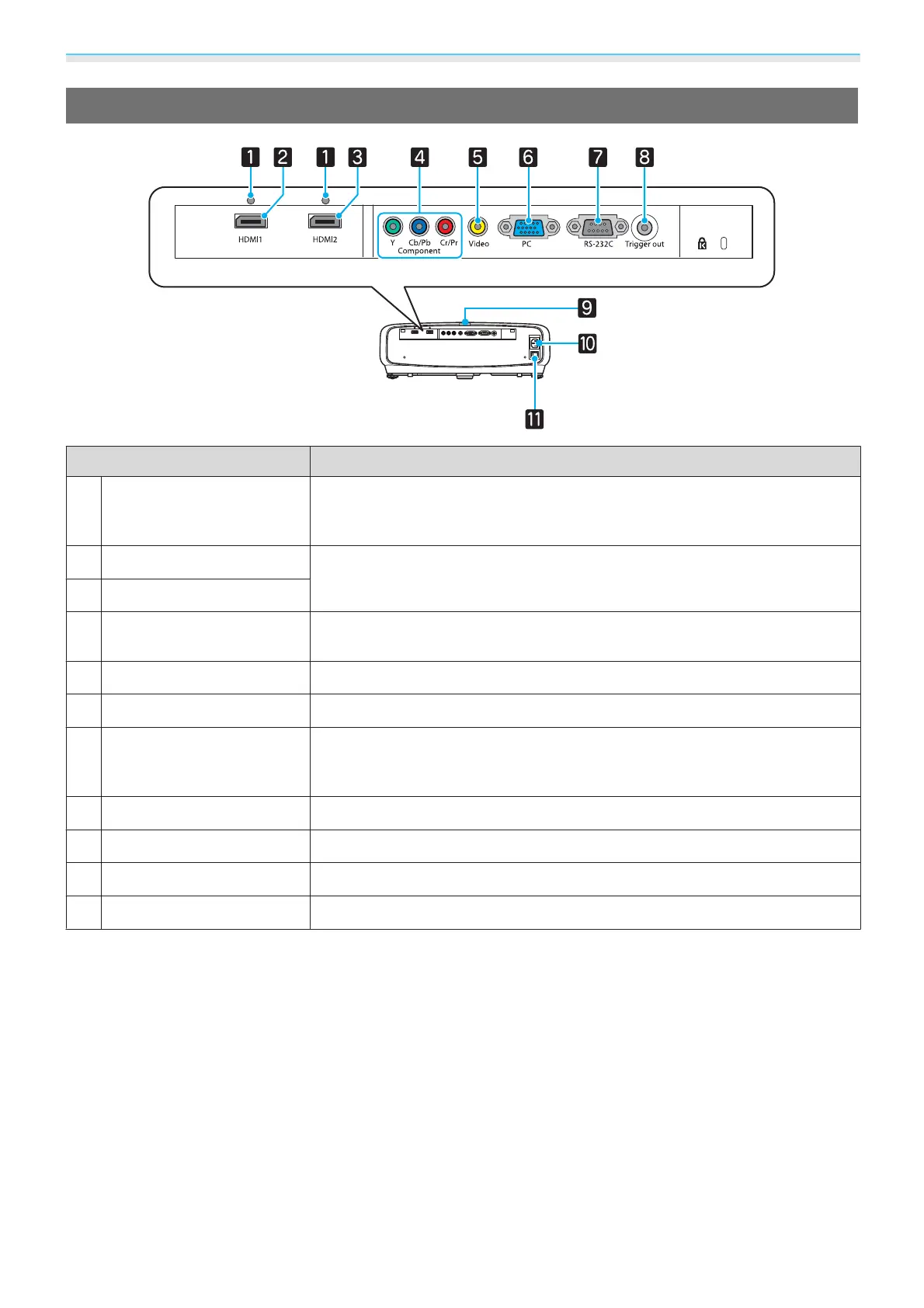

Rear
Name Function
a
Cable holder
Thick HDMI cables with a large outer diameter and so on, may disconnect
easily due to the weight of the cable. To prevent the cable from disconnecting,
fix it in place using the HDMI cable clamp supplied.
s p.21
b
HDMI1 port
Connects HDMI compatible video equipment and computers. s p.19
c
HDMI2 port
d
Component port
Connects to the component (YCbCr or YPbPr) output port on video equip-
ment.
s p.19
e
Video port
Connects to the composite video output port on video equipment. s p.19
f
PC port
Connects to the RGB output port on a computer. s p.20
g
RS-232C port
When controlling the projector, connect the projector to a computer with an
RS-232C cable. This port is for control use and should not normally be used.
s p.100
h
Trigger out port
Connects with external devices such as motorized screens. s p.20
i
Remote receiver
Receives signals from the remote control. s p.23
j
Power inlet
Connects the power cable. s p.24
k
Main power switch
Turns the projector power on or off.

Epson EH-TW9100W Specifications

General

RS-232 ports	1
Matrix size	0.74 \
White light output	2400 ANSI lumens
Projection distance	- m
Projection technology	3LCD
Screen size compatibility	30 - 300 \
Projection distance (tele)	1.9 - 19.2 m
Projection distance (wide)	0.9 - 9 m
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-30 - 30 °
Full HD	Yes
Color modes (2D)	Dynamic, Cinema
Supported 3D formats	Side by side, Top and bottom, Frame packing
Analog signal format system	-
Focus	Manual
Focal length range	23 - 47 mm
Aperture range (F-F)	2 - 3.17
Vertical lens shift range	-96.3 - 96.3 %
Horizontal lens shift range	-47.1 - 47.1 %
Lamp type	E-TORL
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	22 dB
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.39 W
Power consumption (typical)	340 W
Power consumption (economy mode)	287 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	2244 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	12 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	395 mm
Width	466 mm
Height	140 mm
Weight	8400 g
Package depth	573 mm
Package width	531 mm
Package height	350 mm
Package weight	13050 g
