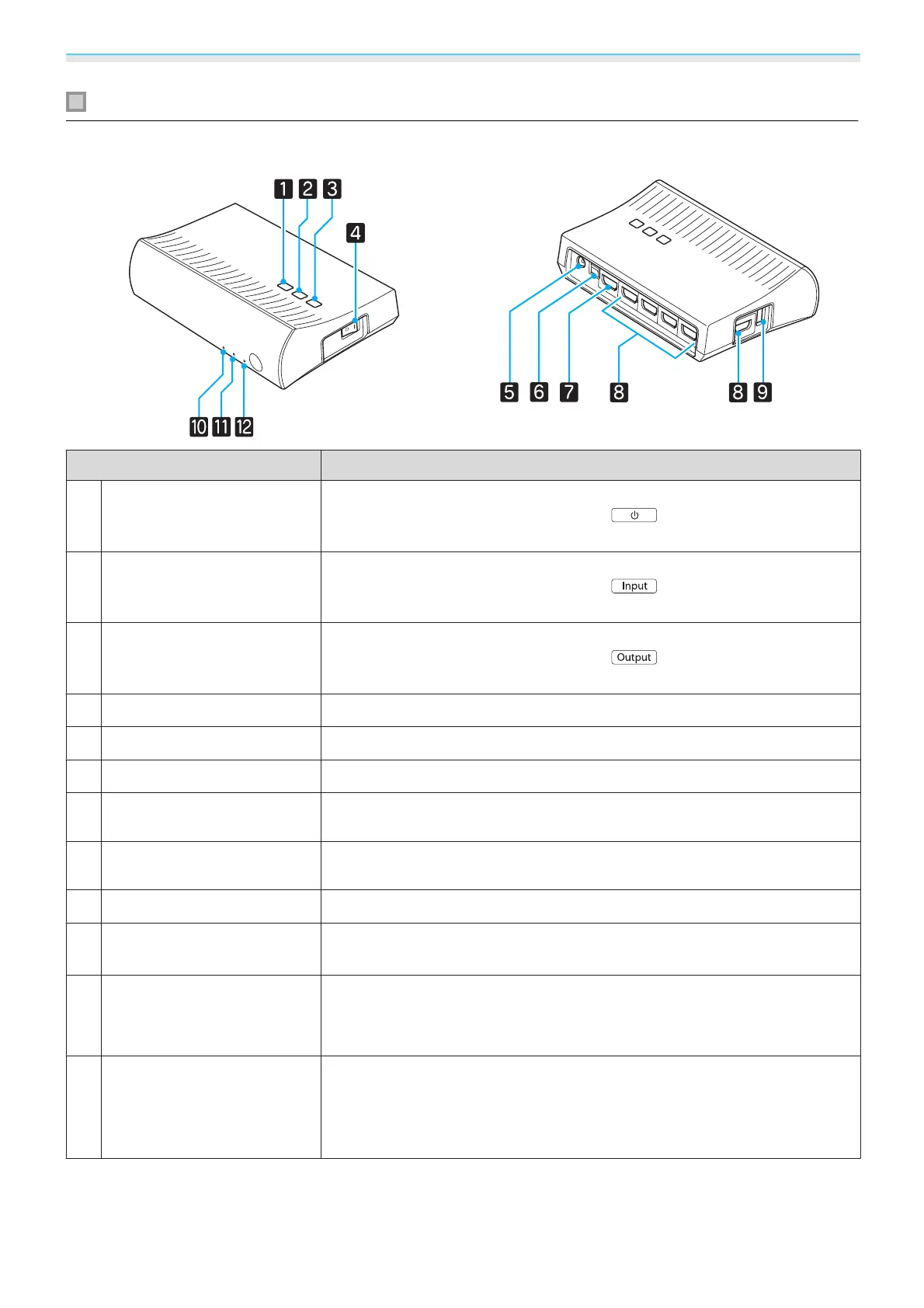

WirelessHD Transmitter part names
Front Rear
Name Function
a
t button
Turns the transmitter on or off.
This performs the same function as the
button for WiHD Transmit-
ter control on the lower section of the remote control.
b
Input button
Changes to the image from each input port.
This performs the same function as the
button for WiHD Transmit-
ter control on the lower section of the remote control.
c
Output button
Switches the output image to the Wireless or Output port.
This performs the same function as the
button for WiHD Transmit-
ter control on the lower section of the remote control.
d
Main power switch
Turns the main power for the transmitter on or off.
e
AC adapter port
Connects the AC adapter.
f
Optical Audio-Out port
Connects to audio devices equipped with an optical digital audio input port.
g
HDMI Output port
Connects to other output devices, such as televisions. You can switch the
output using the Output button.
h
HDMI Input port
Connects to the AV device you want to playback. You can switch the input
image using the Input button.
i
3D Glasses charging port
Connects a USB cable to charge the 3D Glasses.
j
t indicator
(orange/green)
Lit when the WirelessHD Transmitter is on. Lit orange when standing by,
and green when operating (receiving or transmitting images).
k
WiHD indicator
(orange)
Indicates the communication status for the WirelessHD.
•
Lit when wirelessly transmitting images to the projector.
•
Off when outputting to the Output port.
l
Link indicator
(orange)
Indicates the connection status with the projector.
•
On when projecting images from the projector.
•
Flashes when searching for a projector.
•
Flashes slowly when standing by in power saving status.

Epson EH-TW9100W Specifications

General

RS-232 ports	1
Matrix size	0.74 \
White light output	2400 ANSI lumens
Projection distance	- m
Projection technology	3LCD
Screen size compatibility	30 - 300 \
Projection distance (tele)	1.9 - 19.2 m
Projection distance (wide)	0.9 - 9 m
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-30 - 30 °
Full HD	Yes
Color modes (2D)	Dynamic, Cinema
Supported 3D formats	Side by side, Top and bottom, Frame packing
Analog signal format system	-
Focus	Manual
Focal length range	23 - 47 mm
Aperture range (F-F)	2 - 3.17
Vertical lens shift range	-96.3 - 96.3 %
Horizontal lens shift range	-47.1 - 47.1 %
Lamp type	E-TORL
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	22 dB
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.39 W
Power consumption (typical)	340 W
Power consumption (economy mode)	287 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	2244 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	12 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	395 mm
Width	466 mm
Height	140 mm
Weight	8400 g
Package depth	573 mm
Package width	531 mm
Package height	350 mm
Package weight	13050 g
