Epson EH-TW9100W User Manual

Maintenance
94

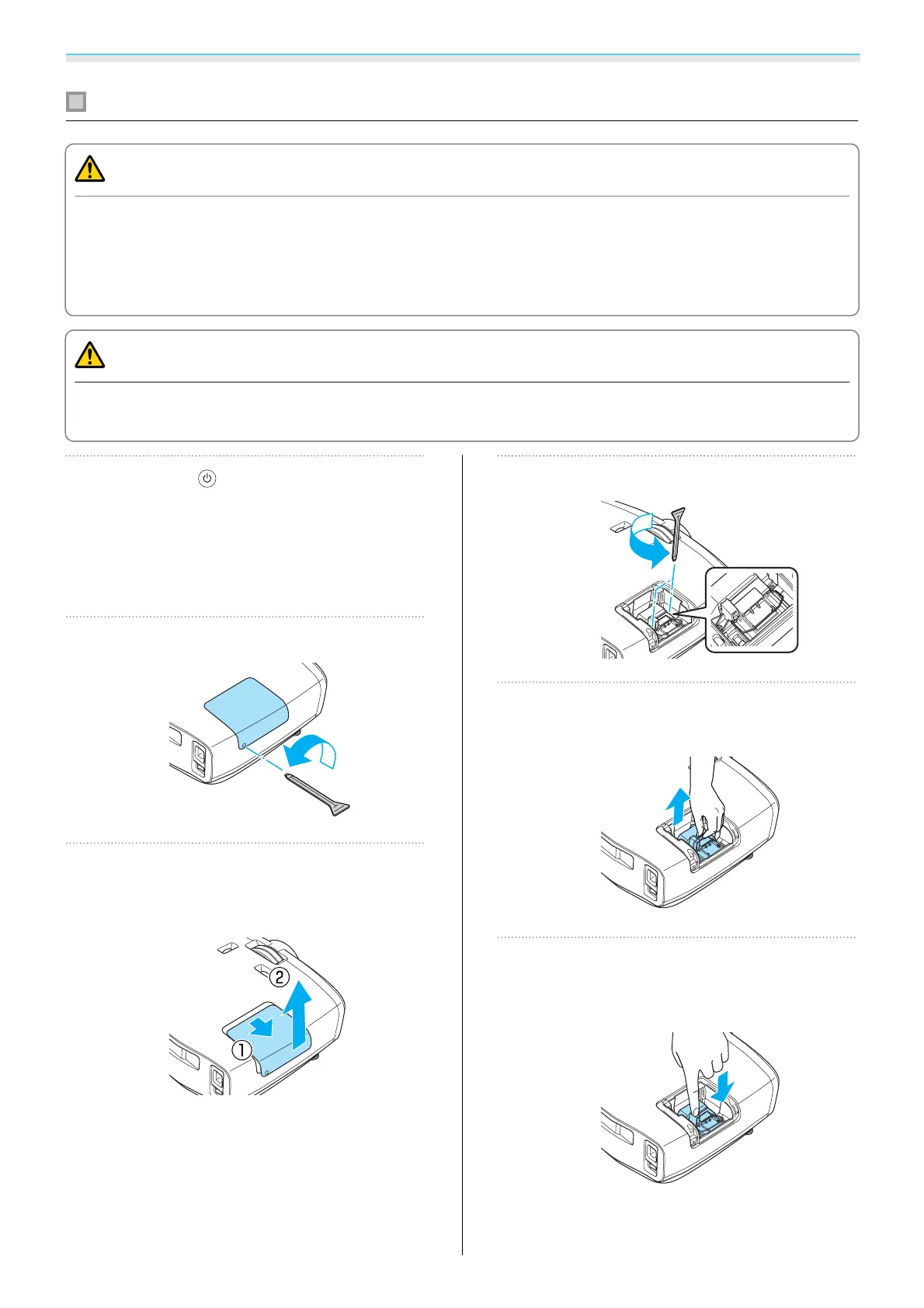

Replacing the lamp
Warning
When replacing the lamp because it has stopped illuminating, there is a possibility that the lamp may be
broken. If replacing the lamp of a projector that has been suspended from the ceiling, you should always
assume that the lamp is cracked, and remove the lamp cover with care. When you open the lamp cover,
small shards of glass could fall out. If any shards of glass get into your eyes or mouth, contact a doctor
immediately.
Caution
Do not touch the lamp cover immediately after turning off the projector as it is still hot. Wait until the lamp
has cooled down sufficiently before removing the lamp cover. Otherwise, you could get burnt.
a
Press the button on the remote
control or the control panel to turn off
the power, turn off the main power
switch, and then disconnect the
power cable.
b
Loosen the lamp cover fixing screw.
c
Remove the lamp cover.
Slide the lamp cover straight forward and
remove it.
d
Loosen the lamp fixing screw.
e
Remove the old lamp.
Grip the knob firmly and pull it straight out.
f
Install the new lamp.
Make sure the lamp is facing the correct
direction and press it in.
