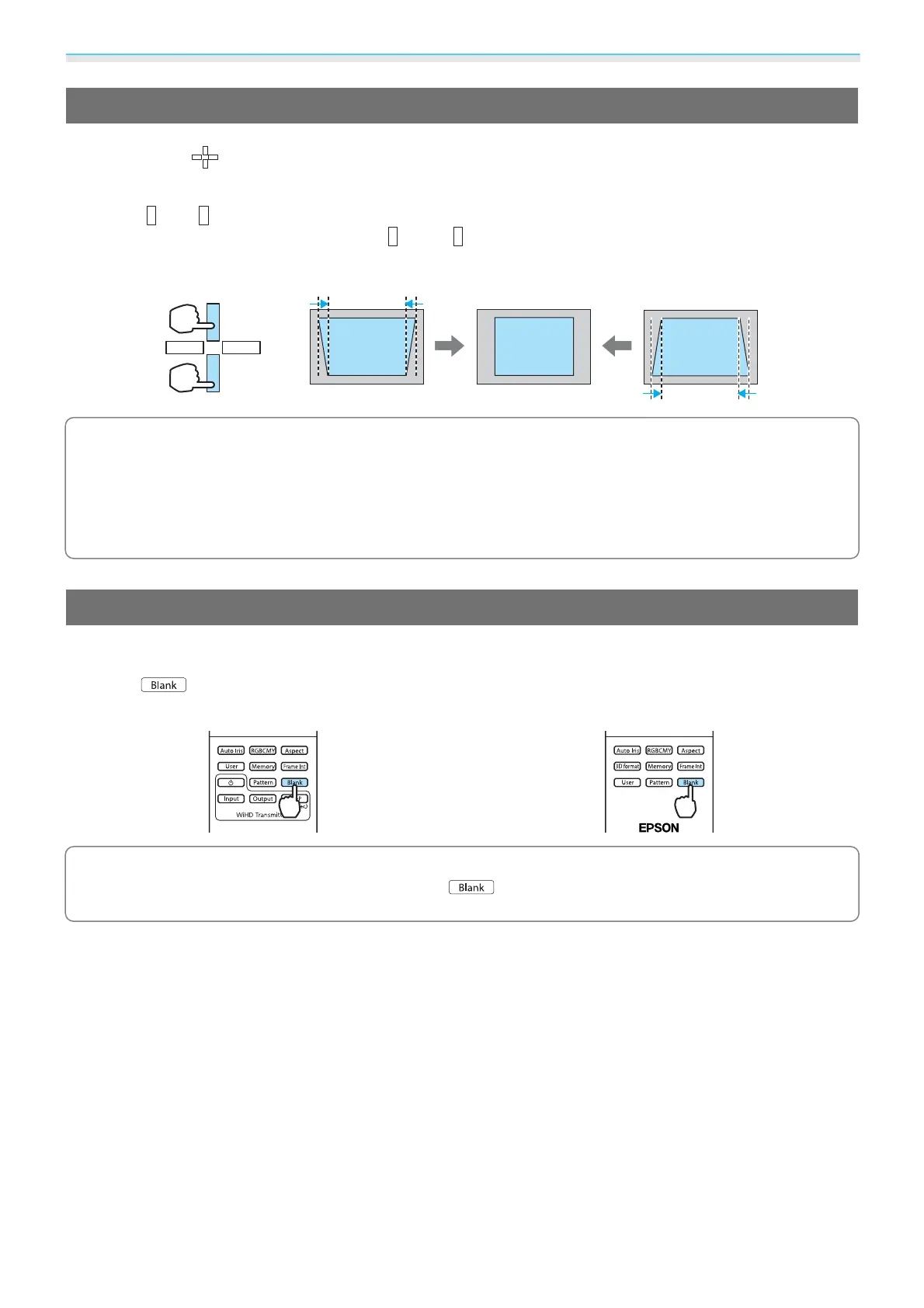

Correcting Keystone Distortion
You can use the buttons on the control panel to correct keystone distortion.
Open the control panel cover at the side to operate the control panel.
s p.9
Press the
or buttons to display the adjustment gauges.
When the gauges are displayed, press the
and buttons to perform vertical correction.
When the top or bottom is too wide
c
•
The projected screen becomes smaller when correcting keystone distortion. Increase the projection
distance to fit the projected screen to the screen size.
•
You can make keystone settings from the configuration menu. s Settings - Keystone p.73
•
You can make effective corrections within a projection angle of 30° top to bottom.
•
For position adjustment, you can maintain the quality of the projected image by performing correction
using lens shift. Use keystone when you cannot make adjustments using lens shift.
Hiding the Image Temporarily
You can use this to temporarily hide the image on the screen.
Press the
button to show or hide the image.
EH-TW9100W/EH-TW8100W EH-TW9100/EH-TW8100
c
For movies, because the movie continues to play even when it is hidden, you cannot return to the
point at which you hid the image using the
button.

Epson EH-TW9100W Specifications

General

RS-232 ports	1
Matrix size	0.74 \
White light output	2400 ANSI lumens
Projection distance	- m
Projection technology	3LCD
Screen size compatibility	30 - 300 \
Projection distance (tele)	1.9 - 19.2 m
Projection distance (wide)	0.9 - 9 m
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-30 - 30 °
Full HD	Yes
Color modes (2D)	Dynamic, Cinema
Supported 3D formats	Side by side, Top and bottom, Frame packing
Analog signal format system	-
Focus	Manual
Focal length range	23 - 47 mm
Aperture range (F-F)	2 - 3.17
Vertical lens shift range	-96.3 - 96.3 %
Horizontal lens shift range	-47.1 - 47.1 %
Lamp type	E-TORL
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	22 dB
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.39 W
Power consumption (typical)	340 W
Power consumption (economy mode)	287 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	2244 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	12 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	395 mm
Width	466 mm
Height	140 mm
Weight	8400 g
Package depth	573 mm
Package width	531 mm
Package height	350 mm
Package weight	13050 g
