Using the Remote Control 31
Controlling the Picture and Sound
You can use the remote control to preview and select your picture
sources, temporarily turn off the picture and sound, freeze the action,
zoom in on the picture, and adjust the volume.
Switching Between Picture Sources
If your projector is connected to more than one computer and/or
video source, you can switch between the different sources:

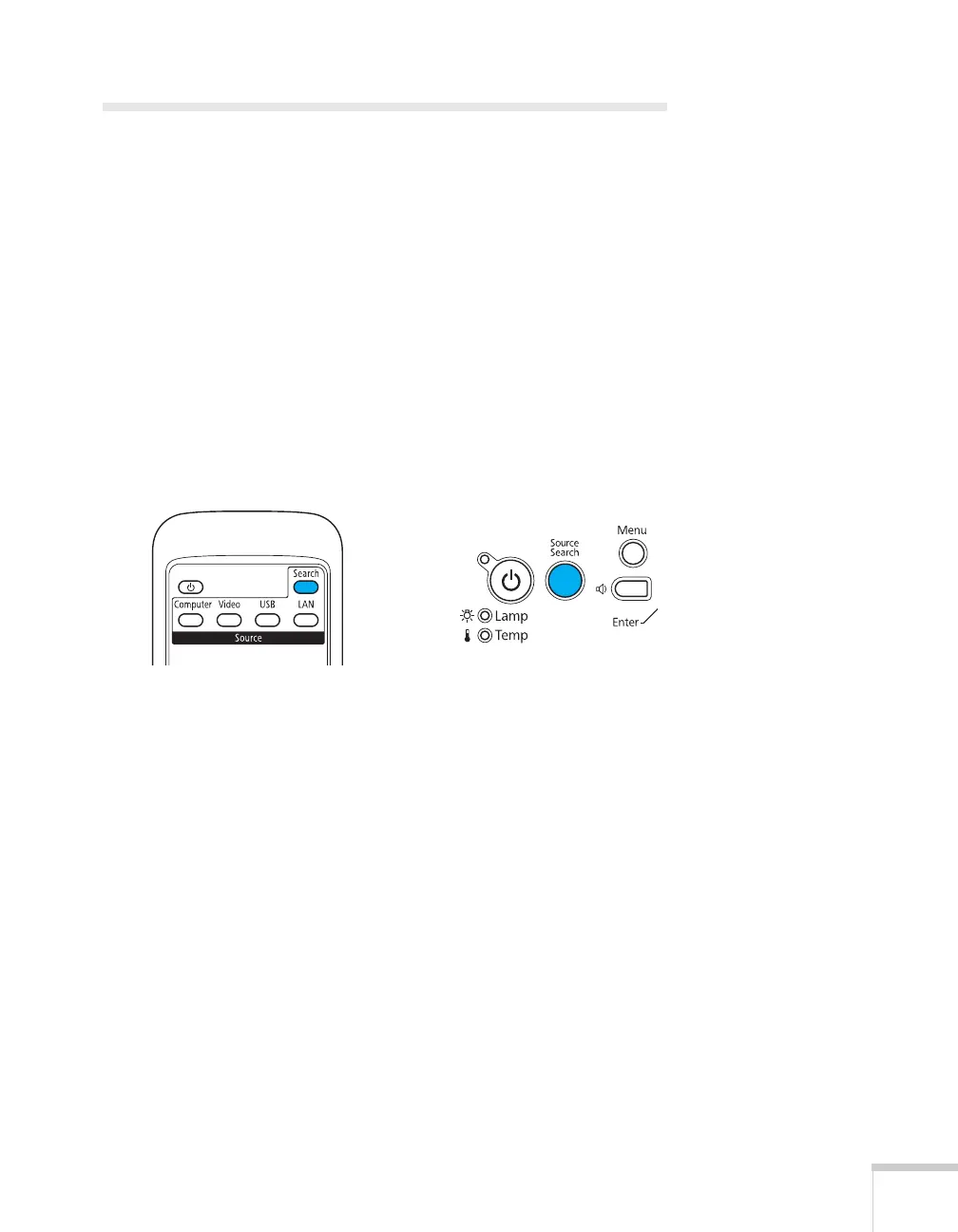

■ The easiest way to select your source is to press the Search button
on the remote control (or the
Source Search button on the
projector) repeatedly until you see the image you want on the
screen.
■ On the remote control, there are four Source buttons. Use them
to switch between equipment connected to the port identified on
each button (The
LAN button does not work with the PowerLite
84.)
After you select a source, the screen goes dark for a moment before the
image appears.

Epson PowerLite 84 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	2000:1
Projector native resolution	XGA (1024x768)
Aspect ratio	4:3
Dimensions (WxDxH)	327.6 x 248.9 x 93.9 mm
Power requirements	100-240VAC +/-10%, 50/60Hz AC
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	6000 h
Focal length range	18.2 - 29.2 mm
RMS rated power	10 W
Number of built-in speakers	1
Microphone in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	2
Power consumption (typical)	289 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Weight	3100 g
