133
Appendix
External Dimensions and
W
eight

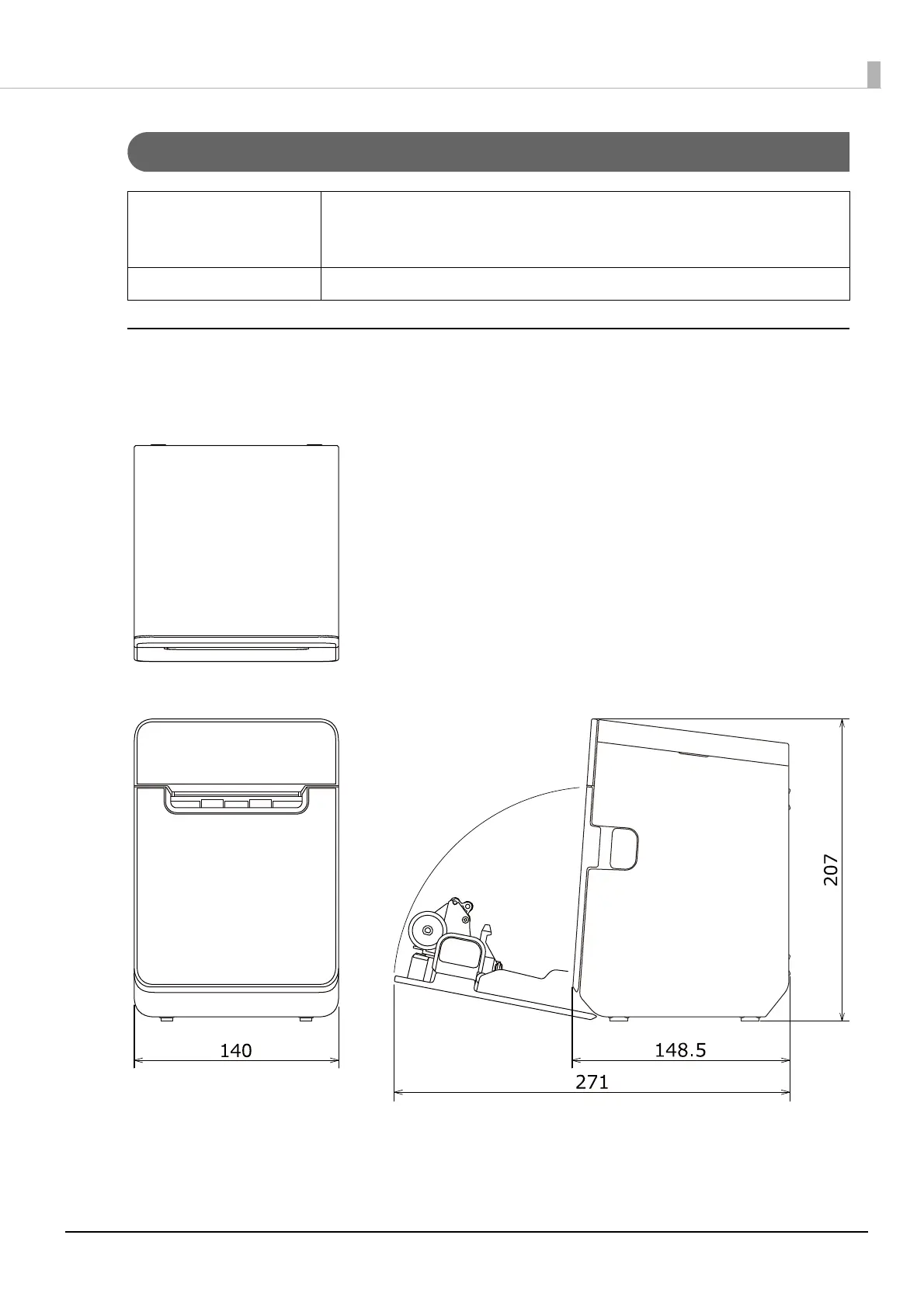

Dimensional Outline Dra
w
ing
When installed
V
er
tically
External dimensions
(wide x
depth x heigh
t)
When installed vertica
lly
: 140 x 148.5 x 207
mm {5.52 x 5.85 x 8.15 inch}
When installed horizontally: 140 x 205 x 151 mm {5.52
x 8.07 x 5.95 inch}
(including rubber feet)
W
e
ight
Appro
x. 1.9 kg (excluding paper weight)
[Unit: mm]
132
134
Table of Contents
For Safety
3
Key to Symbols
3
Warnings
3
Cautions
4
Restriction of Use
4
Note about Interference
4
Open Source Software License
5
About this Manual
6
Aim of the Manual
6
Manual Content
6
Table of Contents
7
Contents
7
Product Overview
11
Features
11
Product Configurations
13
Models
13
Accessories
13
Options
13
Part Names and Functions
14
Top/Front/Rear
14
Panel LED
15
Connectors
16
Online and Offline
19
Status and Errors
20
Status Display
20
Network Connection Status
21
Error Status
22
NV Memory (Non-Volatile Memory)
24
NV Graphics Memory
24
User NV Memory
24
Memory Switches (Customized Values)
24
R/E (Receipt Enhancement)
24
Maintenance Counter
25
Useful Functions for Smart Devices (Device Charging Model/Bluetooth Model)26
26
NFC Tag
26
QR Code
26
Setup
27
Flow of Setup
27
Installing the Printer
28
Placing the Printer Vertically
29
Placing the Printer Horizontally
31
Changing the Paper Width
32
Using 58 MM Wide Roll Paper
33
Using 80 MM Wide Roll Paper
33
Using 40 MM Wide Roll Paper
35
Connecting Interface Cables
37
Connecting the Optional Wireless LAN Unit (for Device Charging Model/Bluetooth Model)40
40
Connecting the Optional Customer Display (for Device Charging Model/Bluetooth Model)41
41
Connecting the Optional External Buzzer
42
Attachment Position
42
Connecting the Cash Drawer
43
Required Specifications of Cash Drawers
43
Connecting the Drawer Kick Cable
44
Connecting to the Power Source
45
Connecting the AC Adapter
45
Connecting the Printer to the Host Devices
48
USB Interface
48
Ethernet Interface
48
Wireless LAN Interface (with OT-WL06) (for Device Charging Model/Bluetooth Model)
51
Bluetooth Interface (for Bluetooth Model)
58
MAC Address Confirmation
61
Printing Using Multiple Interfaces
62
Handling
63
Turning the Power On/Off
63
Turning the Power on
63
Turning the Power off
63
Opening/Closing the Roll Paper Cover
64
Removing/Attaching the Rear Cover
64
Installing or Replacing the Roll Paper
65
For Vertically Placed Printer
65
For Horizontally Placed Printer
67
Removing Jammed Paper
70
When the Roll Paper Cover Does Not Open
71
Cleaning the Printer
73
Cleaning the Printer Case
73
Cleaning the Inside of the Printer
73
Preparing for Transport
77
Advanced Usage
78
Software Settings
78
Functions
81
Setting/Check Modes
91
Self-Test Mode
93
NV Graphics Information Print Mode (NV Graphics Information)
94
Receipt Enhancement Information Print Mode (Receipt Enhancement Information)
95
Software Setting Mode (Customize Value Settings)
96
Restore Default Values Mode (Restore Default Values)
98
Interface Setup Mode (Interface Setup)
99
TM-Intelligent Settings Information Print Mode (TM-Intelligent Information)
101
Peripheral Device Information Print Mode (Peripheral Device Information)
101
Hexadecimal Dumping Mode
102
Printing a Status Sheet
103
Resetting the Interface Settings
105
Resetting Using the Interface Setup Mode
105
Resetting Using the Status Sheet Button
105
TM-Intelligent Function
106
Server Direct Print
106
Status Notification
106
Network Tethering (Ios Device Only)
107
(For Device Charging Model/Bluetooth Model)107
107
Tablet Devices Supported by the Network Tethering
108
Enabling the Tethering Function
108
Connection Procedure
109
Application Development Information
111
Controlling the Printer
111
Epos-Print XML
111
Epos-Device XML
111
Esc/Pos
111
Controlling the Cash Drawer
112
Controlling the Optional External Buzzer
113
Software
114
Development Kit
114
Drivers
114
Utilities
115
Others
115
Download
116
Precautions When Developing Applications
117
Paper Removal Standby Setting
117
Power Supply SW Setting
117
Application Development and Distribution for Ios
118
Notes on Printing Barcodes and Two-Dimensional Symbols
118
Appendix
119
Product Specifications
119
Printing Specifications
119
Character Specifications
120
Auto Cutter
121
Paper Detector
121
Roll Paper Feeder
123
Paper Specifications
124
Printable Area
128
Printing and Cutting Positions
129
Built-In Memory
130
Electrical Specifications
130
Reliability
131
Environmental Conditions
132
External Dimensions and Weight
133
Specifications of Interface and Connector
135
USB Interface
135
Network Interface
136
Serial Interface (Serial Model)
139
Bluetooth Interface (Bluetooth Model)
142
NFC Tag
145
Character Code Tables
146
Compatibility with USB Type-A
147
