32
Service parame-
ters

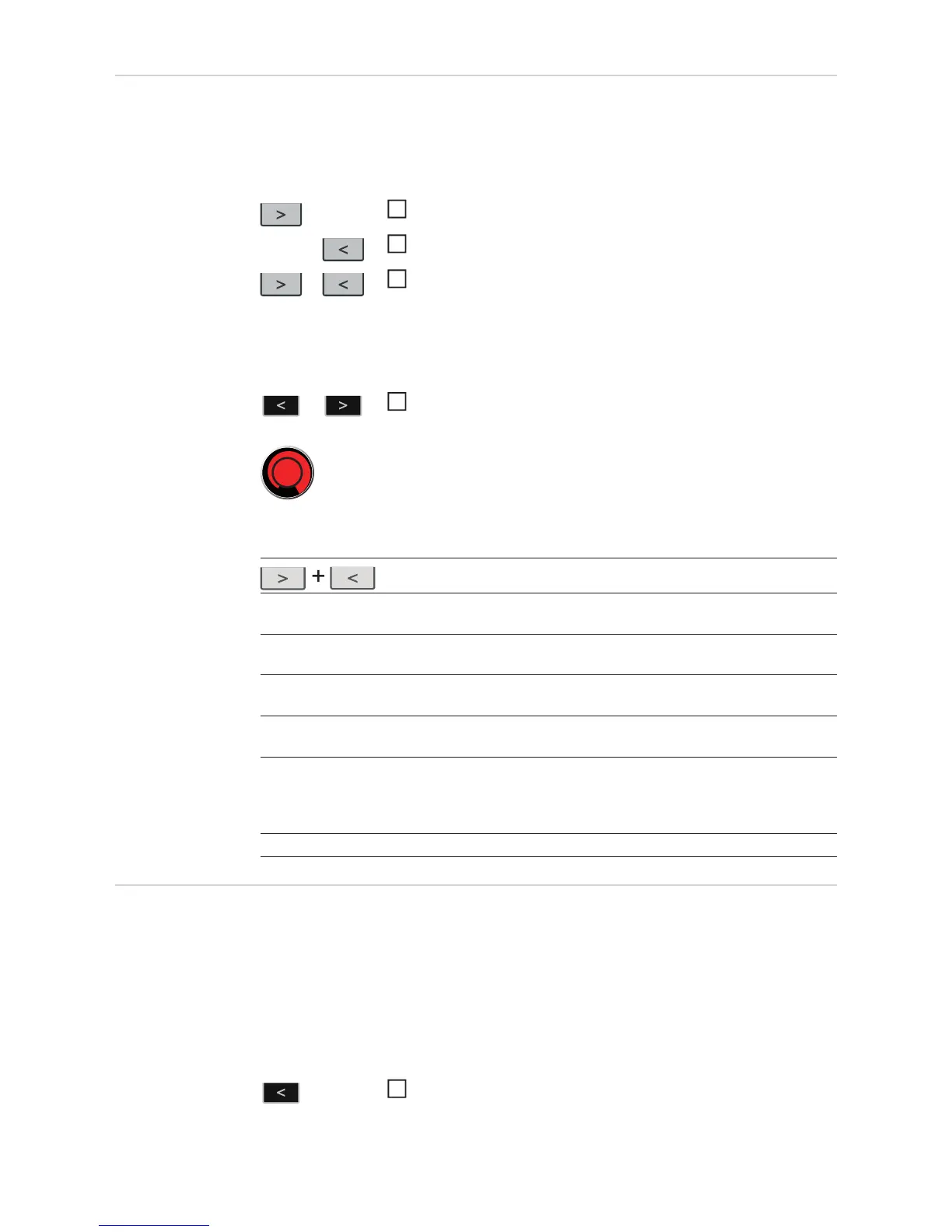

Various service parameters can be retrieved by pressing the "Parameter selection" buttons
at the same time.
Opening the display
The first parameter ("Firmware version") is displayed, e.g. "1.00 | 4.21"
Selecting parameters
Available parameters
Keylock A keylock can be selected to prevent the settings from being inadvertently changed on the
control panel. As long as the keylock is active
- no settings can be made on the control panel
- only parameter settings can be retrieved
- any assigned "Save" button can be retrieved provided that an assigned "Save" button
was selected when the keylock was enabled
Activate/deactivate the keylock as follows:
Press and hold the "Parameter selection" button (left)
Press the "Parameter selection" button (right)
Release the "Parameter selection" buttons
Select the required setup parameter using the "Mode" and "Pro-
cess" buttons or the left-hand adjusting dial
1
2
3
1
Explanation
Example:
1.00 | 4.21
Firmware version
Example:
2 | 491
Welding program configuration
Example:
r 2 | 290
Number of the currently selected welding program
Example:
iFd | 0.0
Motor current for wire drive in A
The value changes as soon as the motor is running.
654 | 32.1
= 65,432.1 hours
= 65,432 hours 6 mins
Indicates the actual arc time since using for the first time
Note: The arc time indicator is not suitable as a basis for calcu-
lating hiring fees, warranty services, etc.
2nd 2nd menu level for service engineers
Press and hold the "Mode" button
1
