34

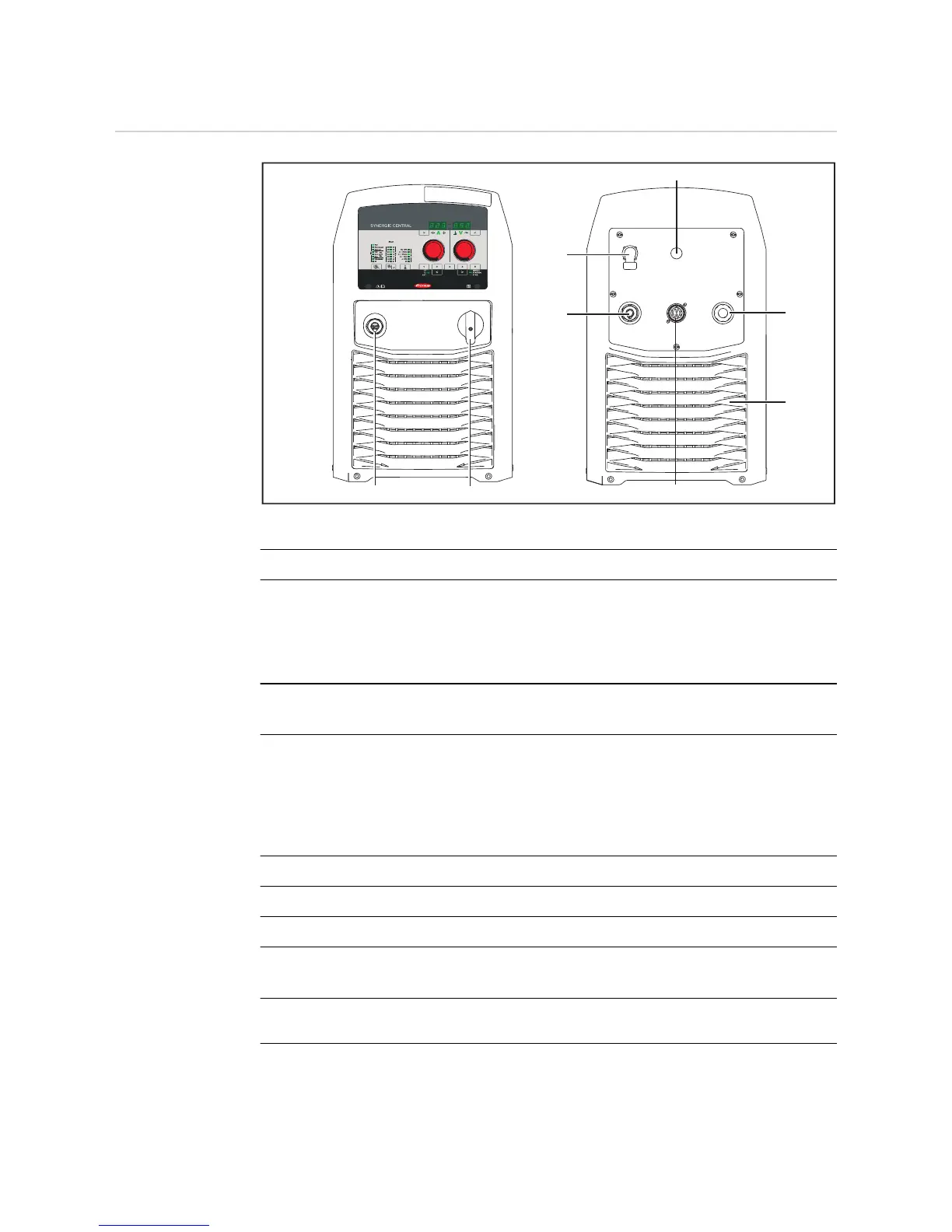

Connections, switches and mechanical components
TSt 3500 Rob /
5000 Rob power
source
No. Function
(1) (-) - Current socket with bayonet latch
used for
- connecting the grounding (earthing) cable during MIG/MAG welding
- connecting the electrode cable or grounding (earthing) cable during MMA welding
(depending on the type of electrode used)
(2) Mains switch
for switching the power source on and off
(3) (+) Current socket with bayonet latch
used for
- connecting the current cable from the interconnecting hosepack during MIG/MAG
welding
- connecting the electrode cable or grounding (earthing) cable during MMA welding
(depending on the type of electrode used)
(4) Gas preheater socket (option)
(5) Machine interface (option)
(6) Mains cable with strain relief device
(7) LocalNet connection
standardised connection socket for the wire-feed unit (interconnecting hosepack)
(8) Air filter
remove from the side for cleaning
(1)
(7)
(2)
(5)
(4)
(3)
(6)
(8)
