1-3

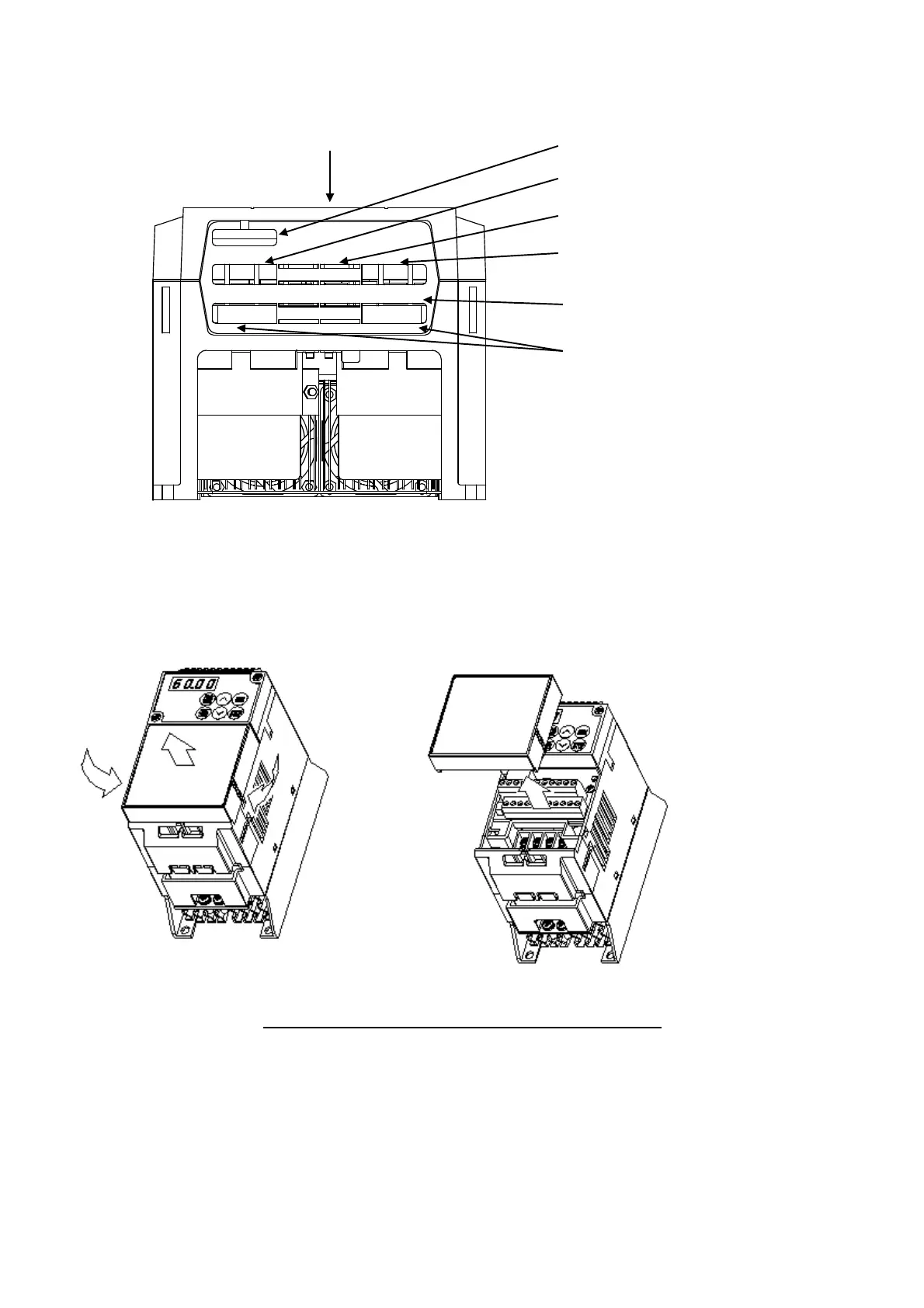

(2-2) View of wiring part(5.5,7.5kW)
A barrier is provided in the cable cover for the P1, P (+), DB and N (-) cable port. Cut the barrier
using nippers or the like before wiring.
1-3 Handling the Product
(1) Removing the control terminal block cover(4.0kW or below)
While lightly pushing the sides of the control terminal block cover at the catches, lift the cover in the
procedure shown in Fig. 1-3-1 to remove it.
Fig. 1-3-1 Removing the control terminal block cover
Control cable port
P1, P (+), DB, N (
-
) cable port
L1/R, L2/S, L3/T cable port
Grounding cable port
U, V, W cable port
Cable cover
Terminal block cover
