4-1
☆Up/down keys
Press these keys to increase
or decrease the frequency or
speed.
In the programming mode, us
e
these keys to change the
function code or data setting.
4. Keypad Panel
The keypad panel is provided with various functions such as operation (frequency setting and
start/stop commands) from the keypad panel, monitor and alteration of function code data, and
various confirmation functions.
Be familiar with the operation method of each function before starting operation.

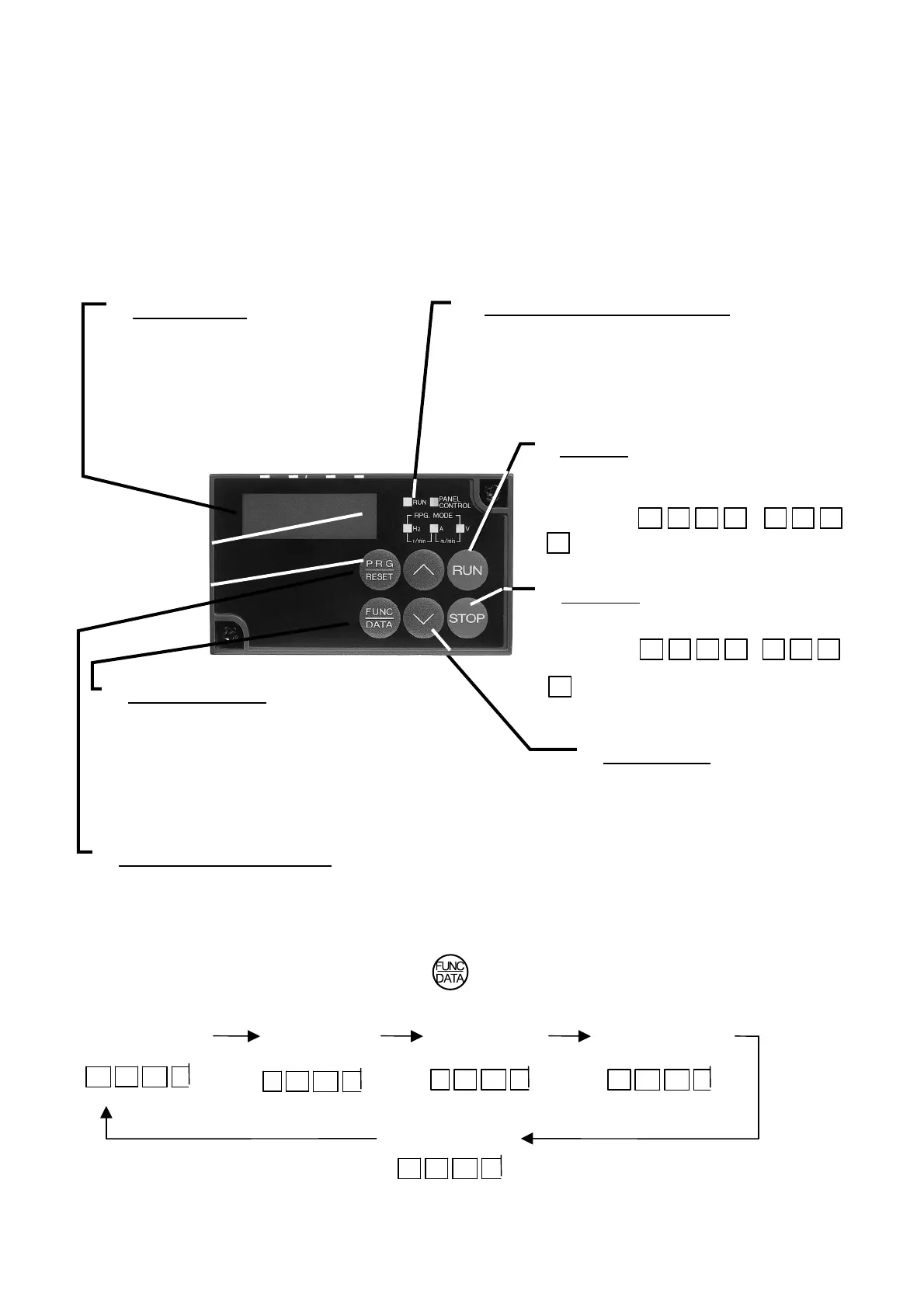

4-1 Appearance of Keypad Panel
(1) Monitor switching method
In the regular operation mode, press the key to switch between frequency display, output
current display and other display.
Output frequency
*1
Output c urrent
*2
6 0. 0 0
1. 2 0
1 0 0 0
Output voltage
*2
Sync hroni zation
rotation speed
*2
Line speed
*2
2 0 0
1 0 0 0
*1: In the PID control mode (when function H20 is at "1" or "2"), the value is in the percent display
and the dot at the least significant digit always lights up.
☆ Digital display
Various function codes and data codes
for programming are shown.
The output frequency, output current
and other data are displayed during
operation, and the cause
of a trouble
is displayed using codes when
protective function works.
☆Program (PRG)/RESET key
Press this key to switch o
ver between the regular operation
mode and programming mode. Use this key to reset an
alarm stopping state after activation of a protective function.
☆Function/Data key
Use this key to switch over between frequency
display, output current display and other
display
in the regular operation mode. In the
programming mode, use this key to retrieve or
write various function codes and various
function data.
☆STOP key
Press this key to stop operation. When
data code
F 0 2 =
1
, this key does not function.
☆RUN key
Press this key to start operation. An
LED lights up during operation. When
data code
F 0 2
=
1
, the key does not function.
☆ Unit and operation mode display
The unit of the data displayed at the digital display
is indicated with an LED. The program mode is
indic
ated. The PANEL CONTROL lamp lights up in
the keypad panel operation mode.
