11-1
11. Applicable Reactor
The DC reactors are recommended to reduce inverter input harmonic current or to correct inverter
input power factor.
Table 11-1-1 List of applicable reactor
Applicable inverter model DC reactor (DCR)
FVR0.1E11S-7EN DCR2-0.2
FVR0.2E11S-7EN DCR2-0.4
FVR0.4E11S-7EN DCR2-0.75
FVR0.75E11S-7EN DCR2-1.5
FVR1.5E11S-7EN DCR2-2.2
FVR2.2E11S-7EN DCR2-3.7
FVR0.4E11S-4EN DCR4-0.4
FVR0.75E11S-4EN DCR4-0.75
FVR1.5E11S-4EN DCR4-1.5
FVR2.2E11S-4EN DCR4-2.2
FVR4.0E11S-4EN DCR4-3.7
FVR5.5E11S-4EN DCR4-5.5
FVR7.5E11S-4EN DCR4-7.5

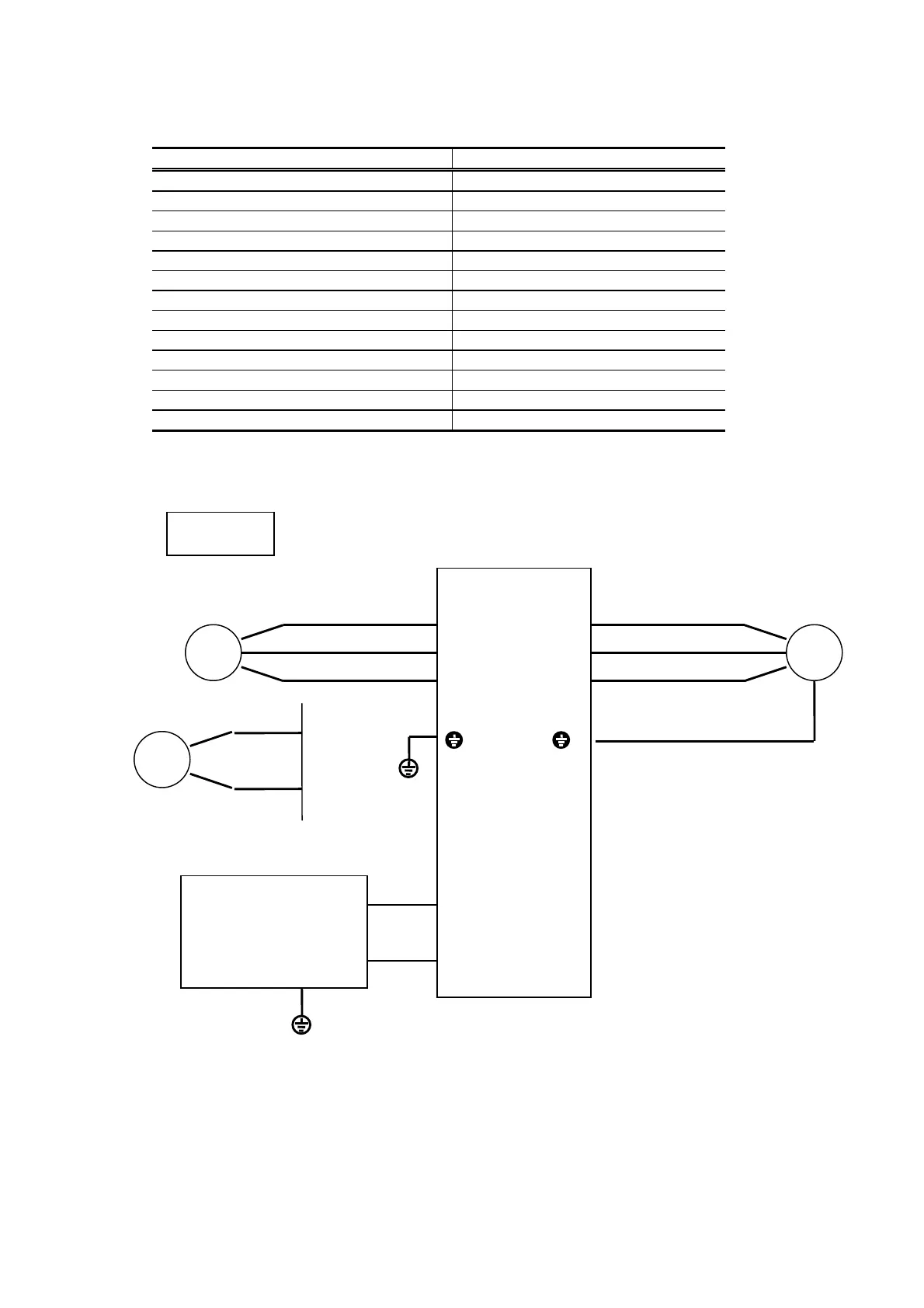

Fig. 11-1-1 Connection method of DC reactor (DCR)
Connection
method
P1
DC reactor
P(+)
Motor
Three-phase power supply
~
P(+)
P1
L3/T
L2/S
L1/R
W
V
U
M
3 ~
E
G
G
Single-phase power supply
~
L2/N
L1/L
