2-3-4 Terminal Layout
(1) Main circuit terminal block
Inverter type

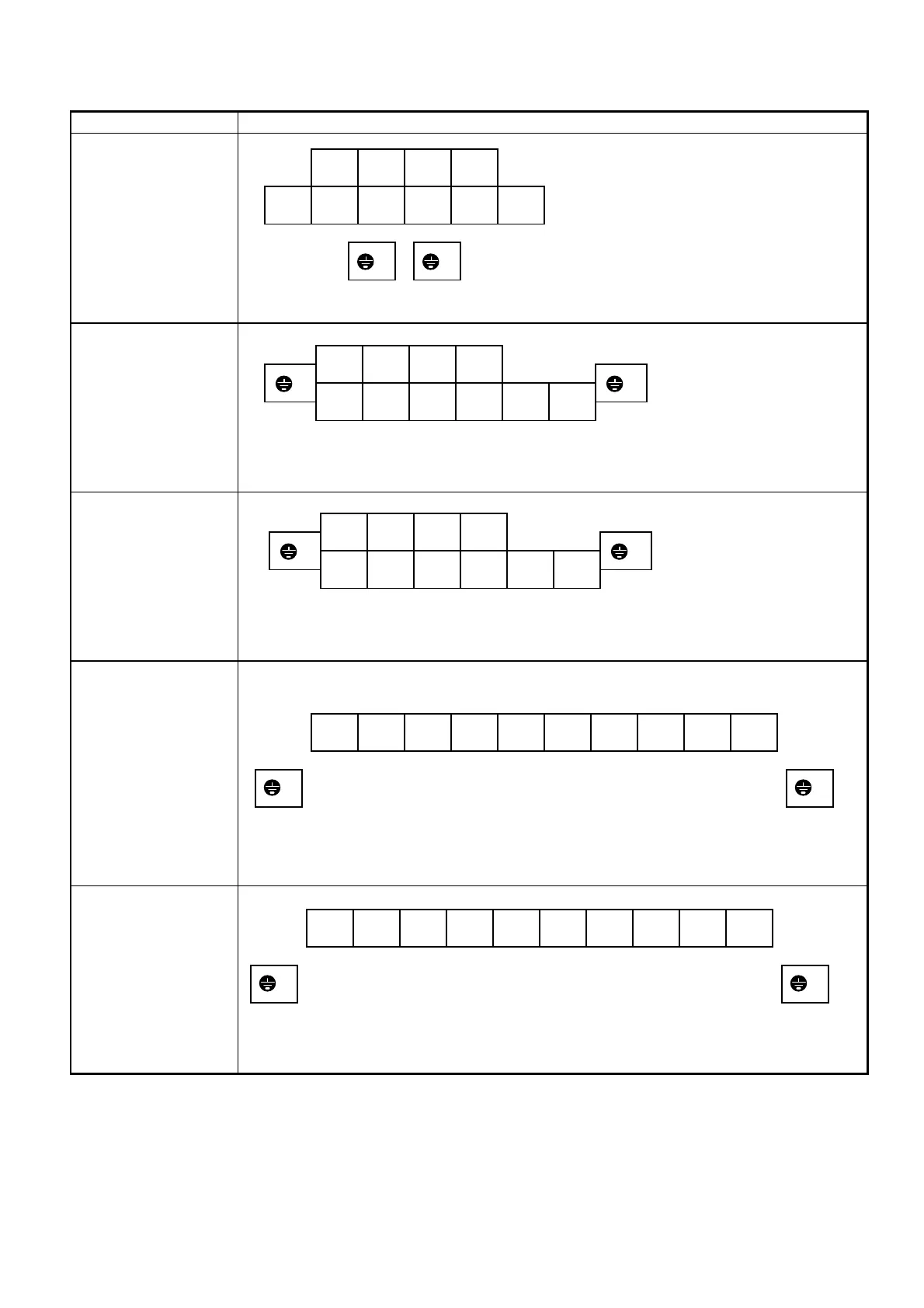

Main circuit terminal drawing
FVR0.1E11S-7EN
FVR0.2E11S-7EN
FVR0.4E11S-7EN
Screw size : M3.5
Tightening torque : 1.2N⋅
⋅⋅
⋅m
FVR0.75E11S-7EN
Screw size : M4
Tightening torque : 1.8N⋅
⋅⋅
⋅m
FVR0.4E11S-4EN
FVR0.75E11S-4EN
FVR1.5E11S-4EN
FVR2.2E11S-4EN
Screw size : M4
Tightening torque : 1.8N⋅
⋅⋅
⋅m
FVR1.5E11S-7EN
FVR2.2E11S-7EN
Screw size : M4
Tightening torque : 1.8N⋅
⋅⋅
⋅m
FVR4.0E11S-4EN
Screw size : M4
Tightening torque : 1.8N⋅
⋅⋅
⋅m
G
DB P1 P(+) N(-)
W V U L3/T L2/S L1/R
G
G G
DB P1 P(+) N(-)
W V U L2/N L1/L
G G
DB P1 P(+) N(-) W V U L2/N L1/L
G
DB P1 P(+) N(-)
W V U L2/N L1/L
G
G G
DB P1 P(+) N(-) W V U L3/T L2/S L1/R
