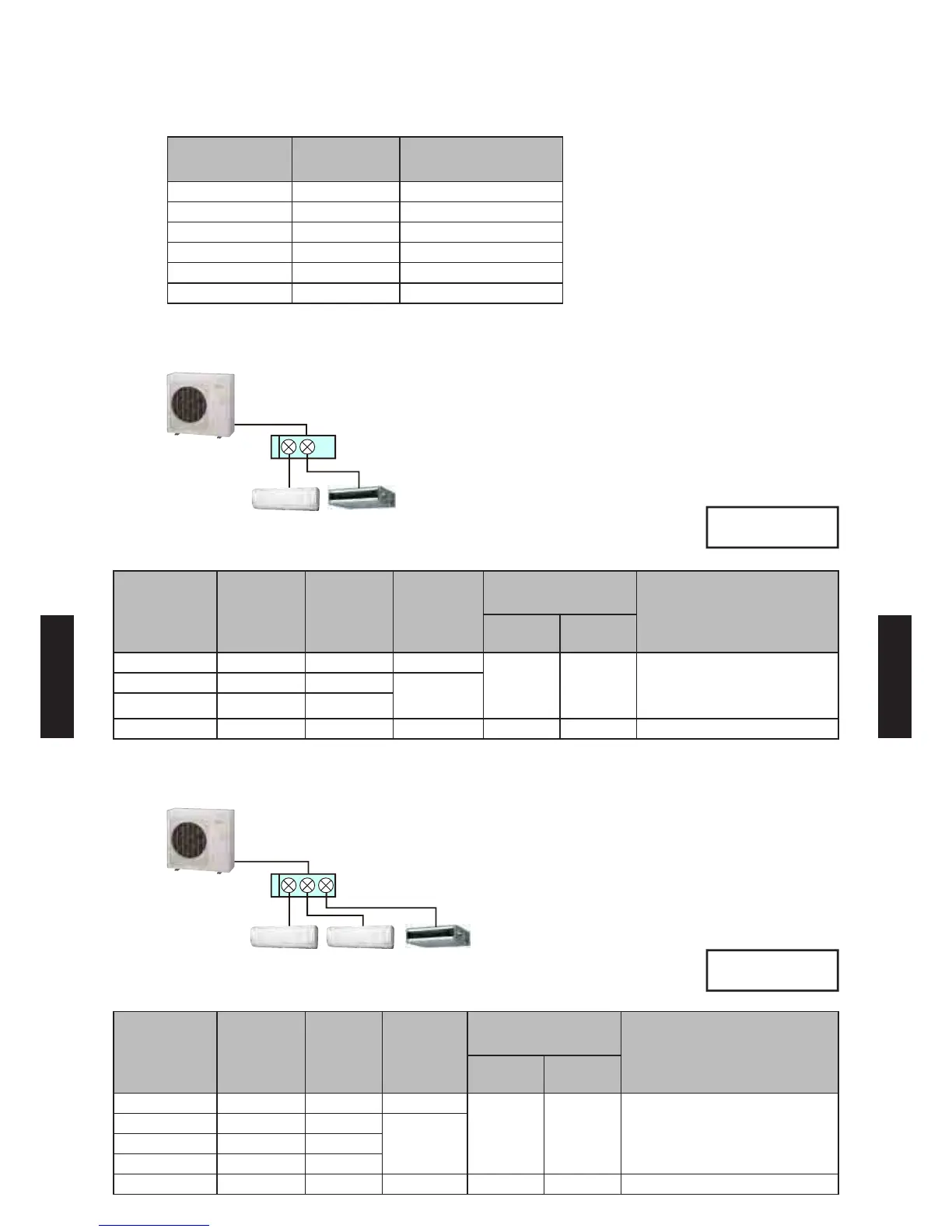

6. SYSTEM DESIGN
EXAMPLE OF REFRIGERANT SYSTEM
Rated capacity of cooling
Model code
Capacity class
(kW)
Rated capacity of
cooling (kW)
07 2.0 2.05
09 2.5 2.64
12 3.5 3.52
14 4.0 4.10
18 5.0 5.27
24 7. 0 7.0 3
Example 1 (OK)
Outdoor unit
Indoor unit 1
Branch box 1
(2 branches type)
Indoor unit 2
Model
Rated
capacity
of cooling
(kW)
Total
capacity
(kW)
Connectable indoor
unit capacity (kW)
Judgement
Min. Max.
Outdoor unit AO45 14.0 14.0
80%
11.2
130%
18.2
.  .  .  
Indoor unit 1 AS24 7.03
12.3
Indoor unit 2 AR18 5.27
Branch box 1
UTP-PY02A
-
-
- -
-
Example 2 (OK)
Branch box 1
(3 branches type)
Outdoor unit
Indoor unit 1 Indoor unit 2 Indoor unit 3
Model
Rated
capacity
of cooling
(kW)
Total
capacity
(kW)
Connectable indoor
unit capacity (kW)
Judgement
Min. Max.
Outdoor unit AO45 14.0 14.0
80%
11.2
130%
18.2
.  .  .  
Indoor unit 1 AS24 7.03
17.58
Indoor unit 2 AS24 7.03
Indoor unit 3 AR12 3.52
Branch box 1
UTP-PY03A
-
-
- -
-
Capacity ratio
88%
Capacity ratio
126%
- (06 - 03) -
SYSTEM
DESIGN
SYSTEM
DESIGN
