6. SYSTEM DESIGN
WIRING RULES


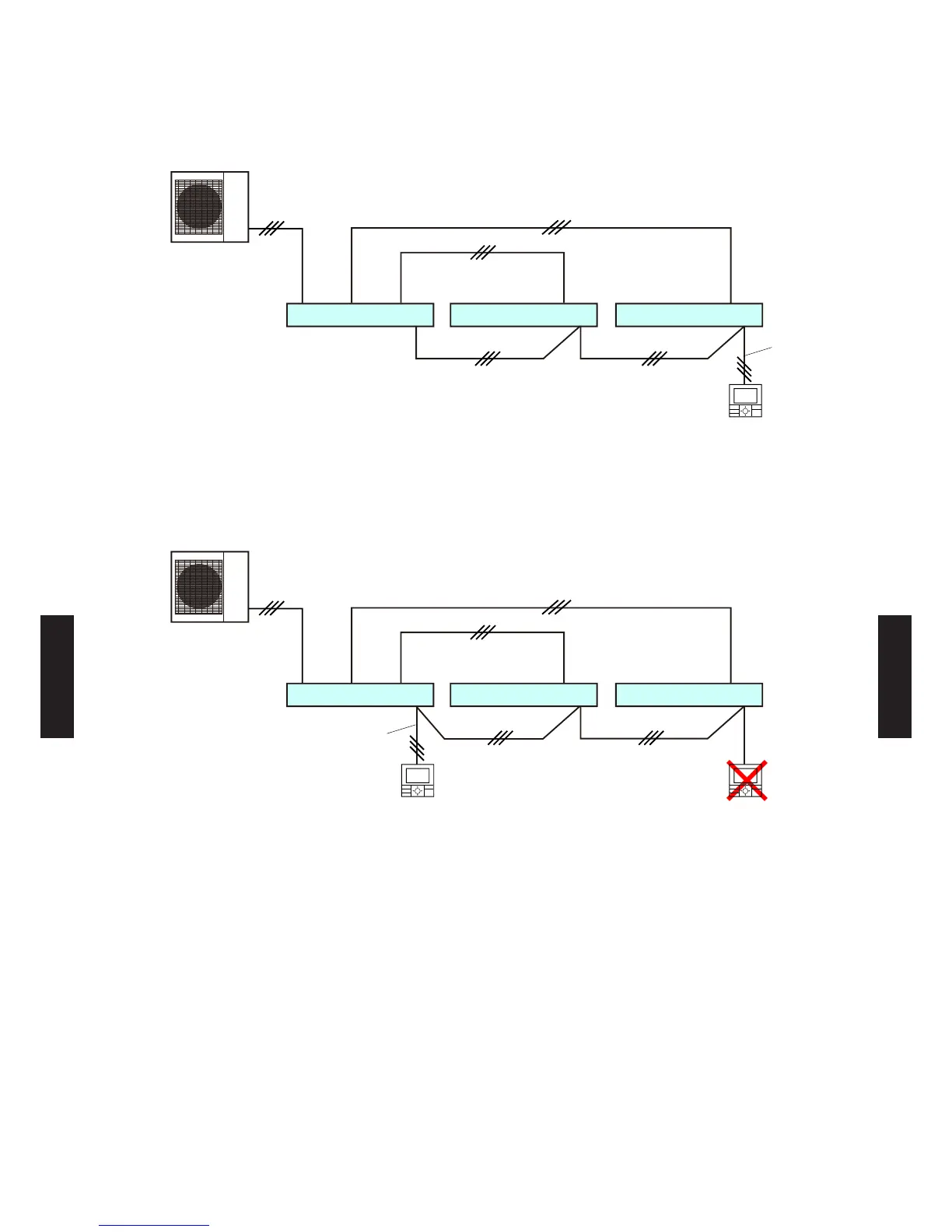

Example 1 (good)

Central remote
controller line
Branch box
1
(primary)
Branch box 2 (secondary) Branch box 3 (secondary)
Central remote
controller
One Central remote controller can be connected to any branch box in 1 refrigerant system.
Example 2 (prohibited)

Central remote
controller line
Central remote
controller
Branch box 1 (primary) Branch box 2 (secondary) Branch box 3 (secondary)
Central remote
controller
Do not connect two or more Central remote controllers in 1 refrigerant system.
