3. OUTDOOR UNIT & BRANCH BOX
BRANCH BOX3-2.
The branch box can be installed on a wall or suspended from the ceiling.


The branch box can be installed and set horizontally or vertically.


Proide a serice hoe or aintenance and inspection purposes as shown in the gure


below.
It is not necessary to perform any draining procedures on the branch box.


The slope of the top side must be within ±5° in all directions of the horizontal plane.


Use M8 or M10 for the bolt size when hanging.



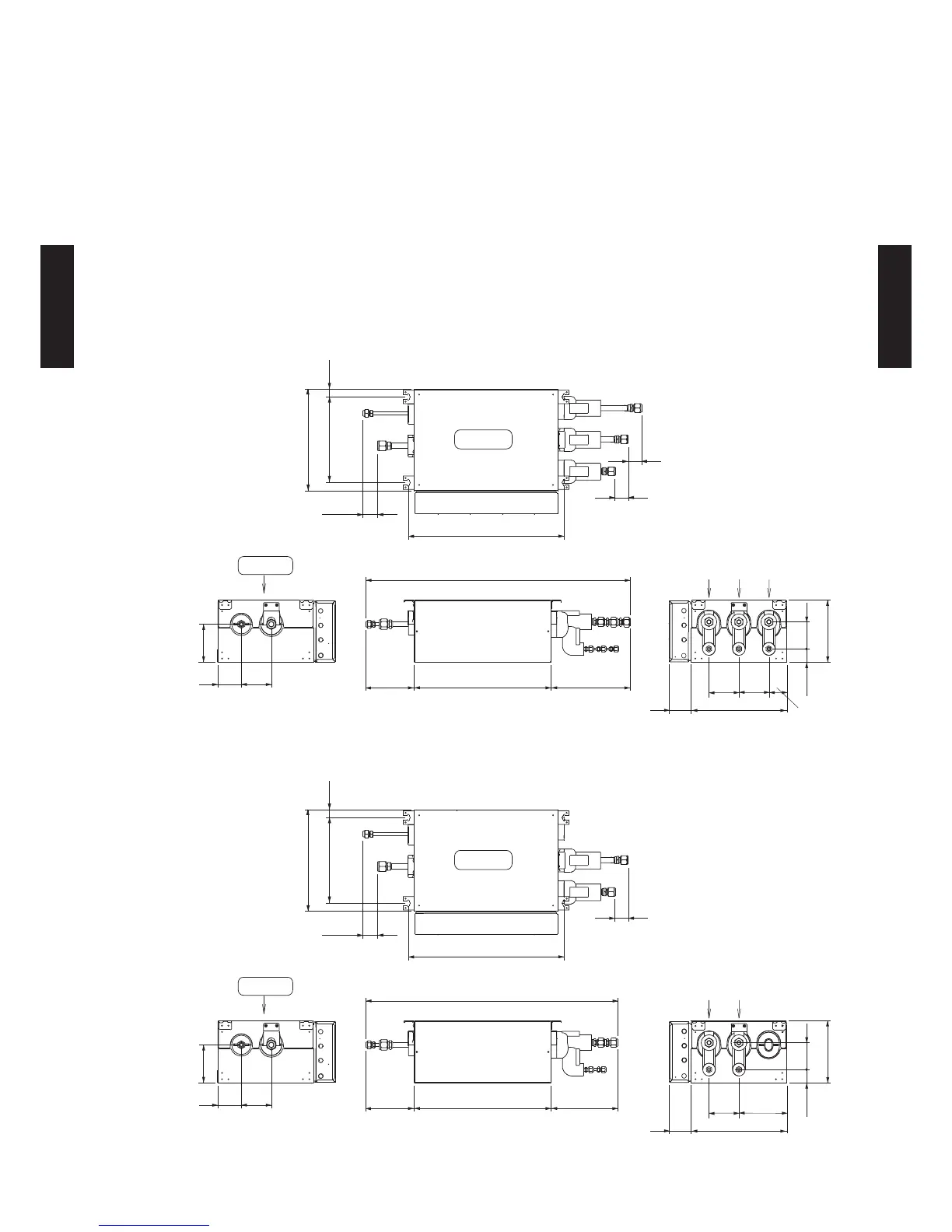

HORIZONTAL INSTALLATION3-2-1.
Be sure to install so that the top side faces up.
44
Top side
469
Hanger bolt pitch
Hanger bolt pitch
256
304
24
Top side
Outdoor unit side
Indoor unit side
(838)
433
154
251
(304)
120
195
69
UNIT A UNIT B UNIT C
40
40
75 95
85
42
57
95 95
[3 branches type]
44
Top side
469
Hanger bolt pitch
Hanger bolt pitch
256
304
24
Top side
Outdoor unit side
Indoor unit side
(798)
433
154
211
(304)
120
195
69
UNIT A UNIT B
40
75 95
85
42
95 152
[2 branches type]
Unit : mm
