6. SYSTEM DESIGN

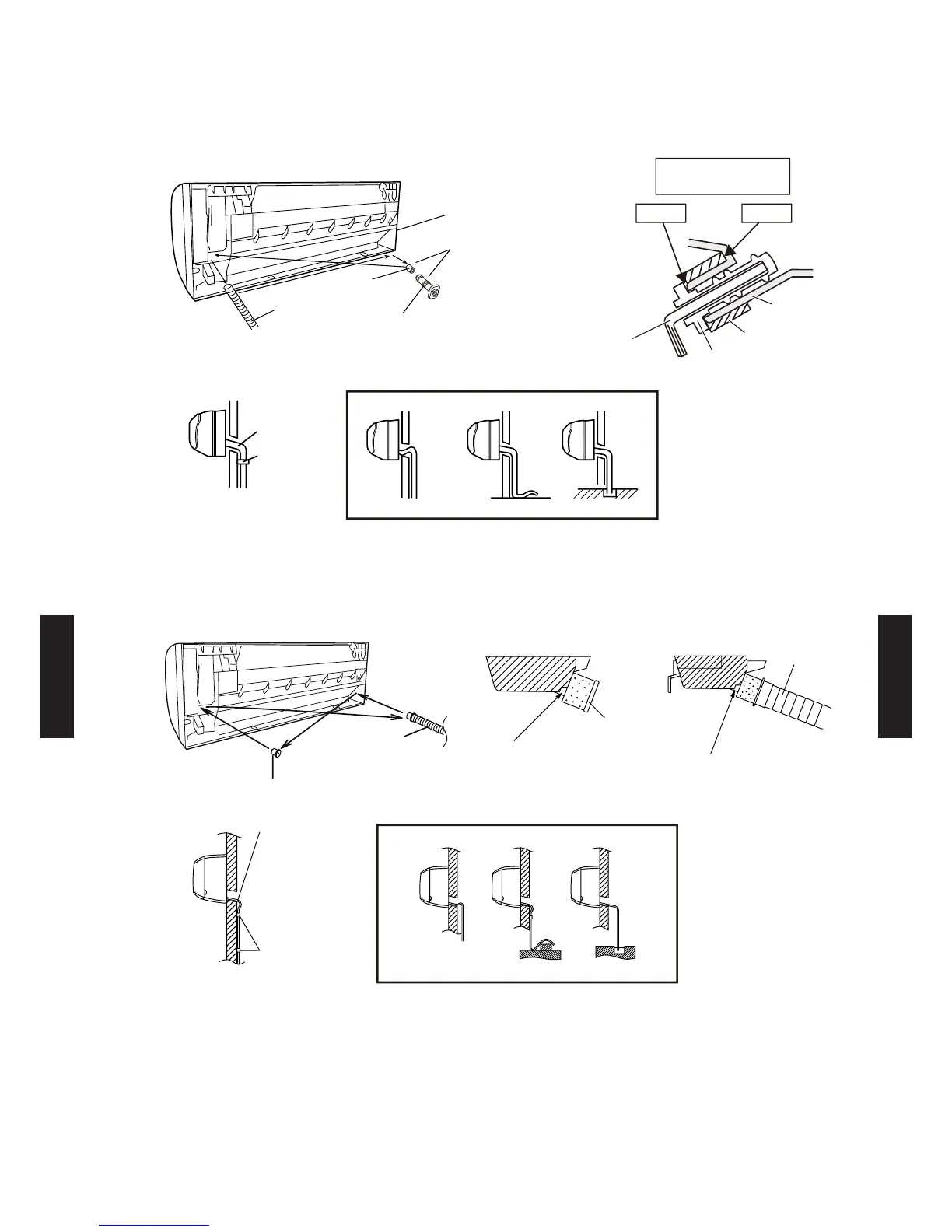

WALL MOUNTED TYPE (LJ, LU, LM)

Remove the drain cap by
pulling at the projection at the
end of the cap with pliers, etc.
And remove the insulation.
îš±
îš±
îš±
prohibited
OK
Drain cap
Drain hose
Saddle
No gap
No gap
Drain cap
Drain Cock
End in waterWave
Liftted up
Insulation
Insulation
Indoor unit
drain hose
Hexagonal
wrench
Installation method
of Drain cap
For left outlet piping, cut
off the piping outlet cutting
groove with a hacksaw.
WALL MOUNTED TYPE (LF)

îš±
îš±
îš±
prohibited
OK
Drain cap
Drain cap
Drain hose
Right side
Left side
Drain hose
Drain hose
Saddle
End in waterWaveLiftted up
Insert the drain cap until it
butts against the drain port.
Insert the drain hose until it
butts against the drain port..
- (06 - 123) -
SYSTEM
DESIGN
SYSTEM
DESIGN
