This section shows the names of the scanner parts.

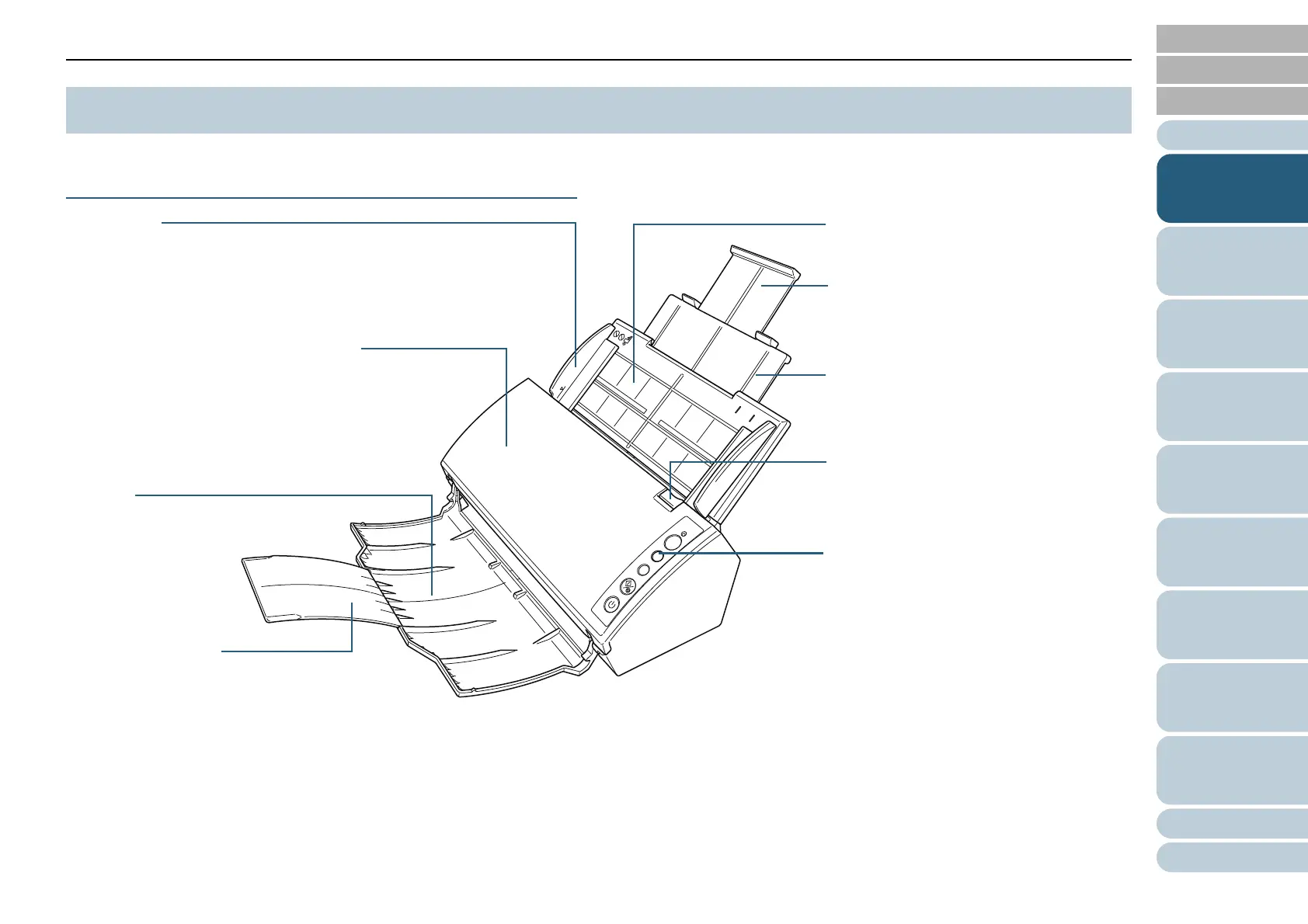

Front
1.2 Parts and Functions
Stacker
Stacks up the ejected documents.
Operator Panel
Consists of the Function Number Display,
buttons, and Check LED.
Can be used to operate the scanner or
check the status.
For details about the operator panel, refer
to "Chapter 4 How to Use the Operator
Panel" (page 48).
ADF (Automatic Document Feeder)
Pulls and feeds the documents one sheet at
a time from the ADF paper chute.
Open to replace consumables or clean the
inside of the scanner.
Side Guide
Guides the documents in width
direction as they are fed into the
scanner.
Chute Extension 2
Pull out to adjust to the paper length.
ADF Paper Chute
Holds the documents to be scanned.
ADF Release Tab
Pull this tab to open the ADF.
Stacker Extension
Lift up to adjust to the paper length.
Chute Extension 1
Pull out to adjust to the paper length.

Fujitsu fi-6110 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	1024
Input color depth	24 bit
Maximum scan size	216 x 355.6 mm
Optical scanning resolution	600 x 600 DPI
Flatbed scan speed (b/w, A4)	3 sec/page
Scanner type	Sheet-fed scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	500 sheets
USB version	2.0
Standard interfaces	USB 2.0
Scan media weight	52 - 127 g/m²
Dimensions (WxDxH)	292 x 143 x 130 mm
Power requirements	100 - 240 V, 50/60 Hz
Image formats supported	JPG, TIF
Recommended media weight	80 g/m²
Compatible operating systems	Microsoft Windows 7 (32bit/64bit)/Vista (32bit/64bit), Windows Server 2003/2008/2008 R2 (32bit/64bit), Windows XP (32bit/64bit).
Power supply type	AC
Power consumption (standby)	5.36 W
Power consumption (typical)	28 W
Operating temperature (T-T)	42 - 95 °F
Operating relative humidity (H-H)	20 - 80 %
Bundled software	TWAIN, ISIS, ScandAll PRO, Adobe Acrobat, QuickScan Pro.

Weight and Dimensions

Depth	143 mm
Width	292 mm
Height	130 mm
Weight	3000 g
