This section explains how to load documents on the scanner.
Preparation
1 Check the documents.
1 Check if the documents to be loaded are of the same width or
different widths.
Ways to load documents differ depending on whether they are the
same width or not.
If the document width varies, refer to "Conditions for Mixed Batch
Scanning" (page 34) or "Documents with Different Widths" (page
54).
2 Check the number of sheets.
Up to 50 sheets can be loaded (with paper weight of 80 g/m
2
(20 lb) and thickness of the document stack under 5 mm).
For details, refer to "Loading Capacity" (page 32).

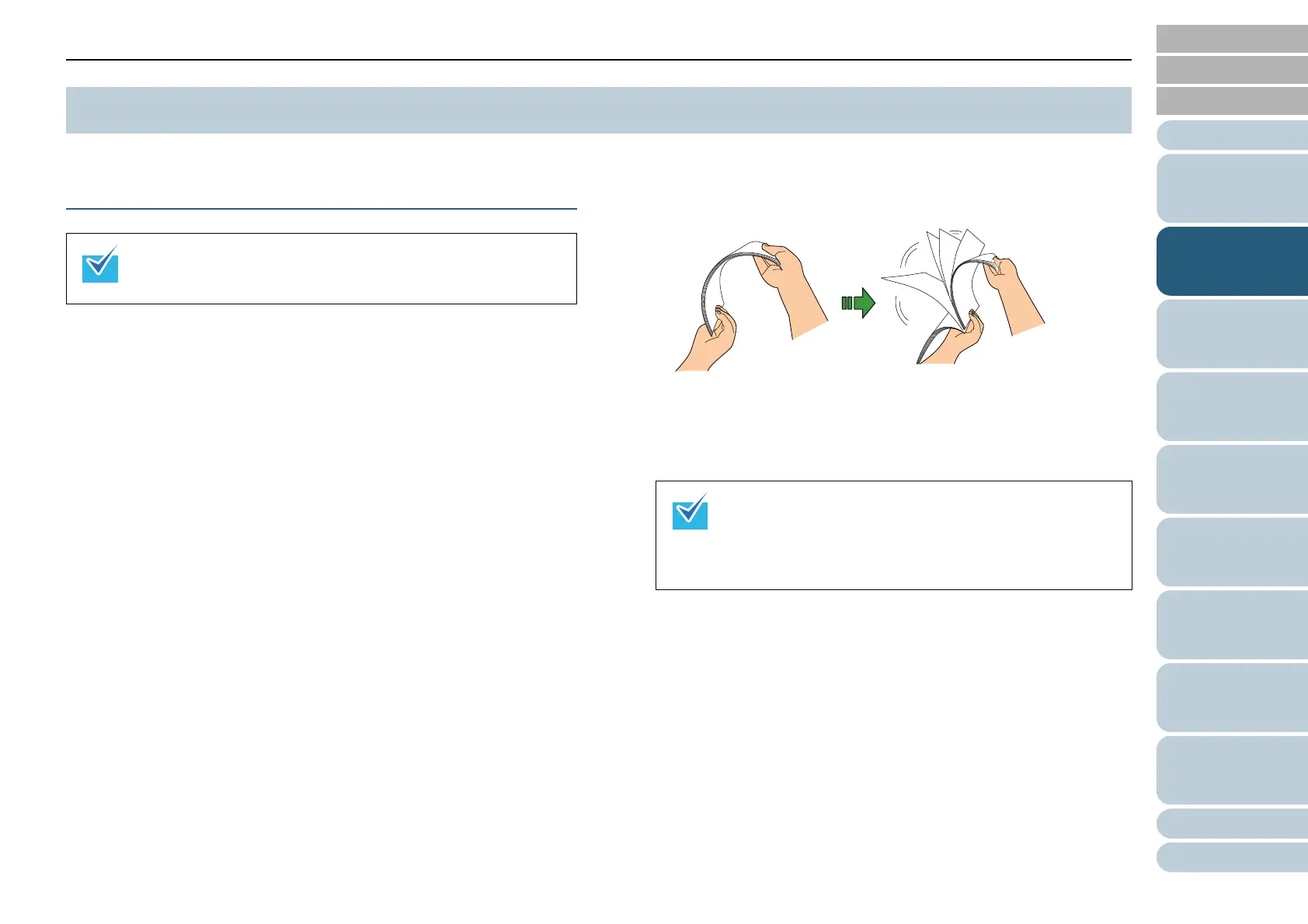

2 Fan the documents.
1 Grab a stack of documents, which should be 5 mm or less.
2 Hold both ends of the documents and fan them a few times.
3 Rotate the documents by 90 degrees and fan them in the same
manner.
4 Perform steps 1 to 3 for all documents.
5 Align the edges of the documents.
2.1 Loading Documents
For details about the paper size and quality required for normal
operations, refer to "2.2 Documents for Scanning" (page 30).
For details about how to fan documents, refer to the Error
Recovery Guide.
The Error Recovery Guide is included in the Setup DVD-
ROM. For details about the installation, refer to "Installing
the Scanner Software" in Getting Started.

Fujitsu fi-6110 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	1024
Input color depth	24 bit
Maximum scan size	216 x 355.6 mm
Optical scanning resolution	600 x 600 DPI
Flatbed scan speed (b/w, A4)	3 sec/page
Scanner type	Sheet-fed scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	500 sheets
USB version	2.0
Standard interfaces	USB 2.0
Scan media weight	52 - 127 g/m²
Dimensions (WxDxH)	292 x 143 x 130 mm
Power requirements	100 - 240 V, 50/60 Hz
Image formats supported	JPG, TIF
Recommended media weight	80 g/m²
Compatible operating systems	Microsoft Windows 7 (32bit/64bit)/Vista (32bit/64bit), Windows Server 2003/2008/2008 R2 (32bit/64bit), Windows XP (32bit/64bit).
Power supply type	AC
Power consumption (standby)	5.36 W
Power consumption (typical)	28 W
Operating temperature (T-T)	42 - 95 °F
Operating relative humidity (H-H)	20 - 80 %
Bundled software	TWAIN, ISIS, ScandAll PRO, Adobe Acrobat, QuickScan Pro.

Weight and Dimensions

Depth	143 mm
Width	292 mm
Height	130 mm
Weight	3000 g
