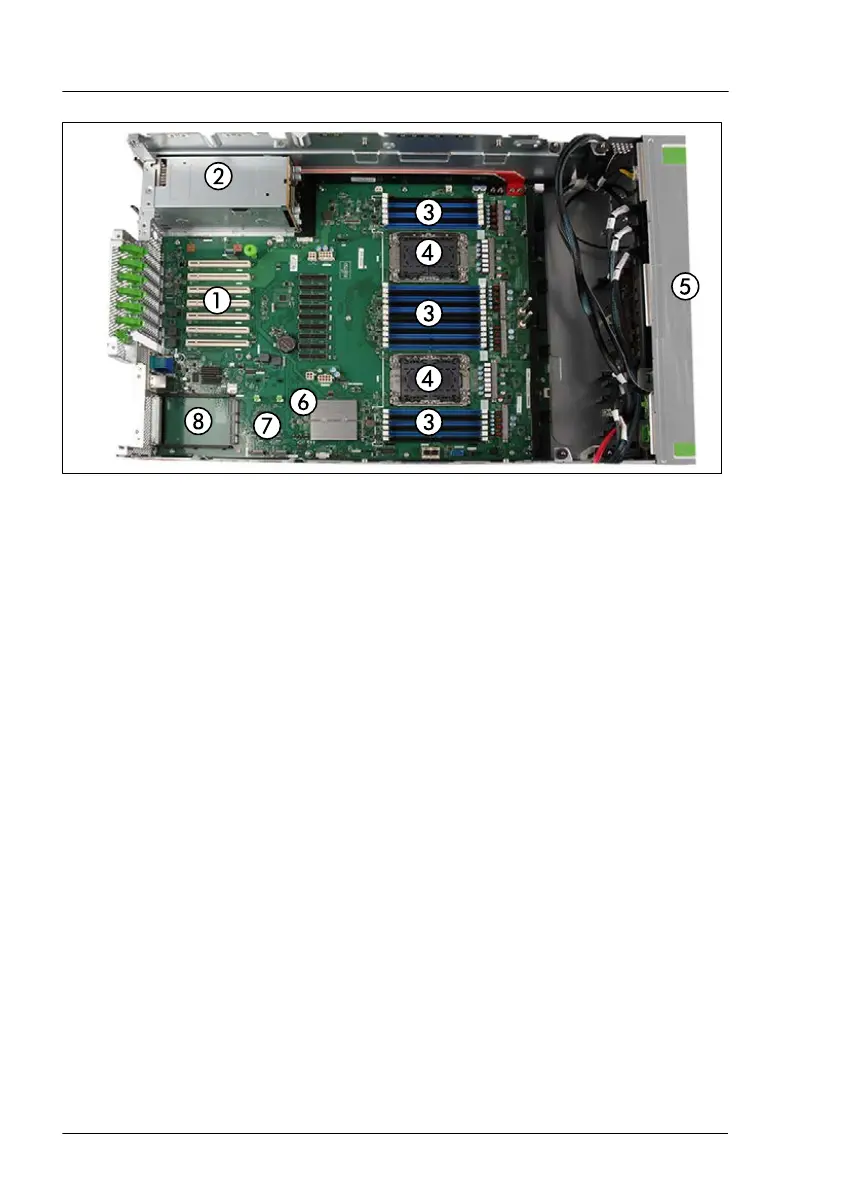

Figure 240: Server interior (bottom system board)
1
PCIe slots
2
Up to two PSUs / dummy cover
3
Main memory
4
CPUs (2x)
5
Up to 24 SAS/SA
T
A HDDs or 24 PCIe
SSDs
6
TPM
7
M.2 SSDs (2x)
8
Location for OCP module
The TPM (6), the two M.2 SSDs (7) and the OCP module (8) are options.
Appendix A
392
Upgrade and Maintenance Manual
RX4770 M6
391
393
