Fujitsu ScanSnap S500 User Manual

160
7.2 Replacing the Pad ASSY
Replace the Pad ASSY following the procedure below.
Operation
1. Remove the documents on the paper chute.
2. Open the ADF cover while pulling the cover open lever.
3. Remove the Pad ASSY.

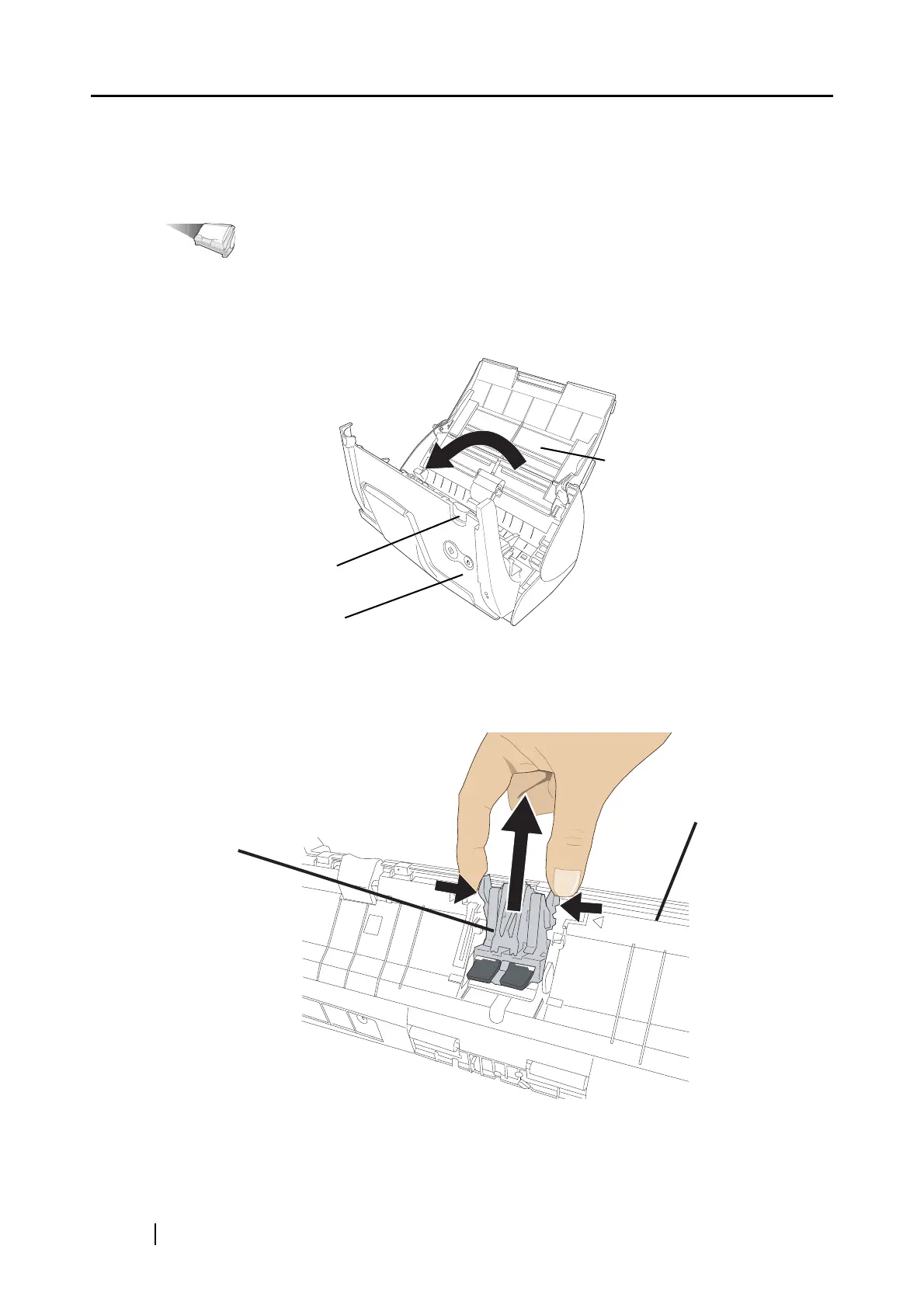

Pull out the Pad ASSY in the direction of the arrow while pinching both ends of the Pad
ASSY.
ADF cover
Cover open lever
Paper chute
ADF cover
Pad ASSY
