4. AIS OPERATION
4-20

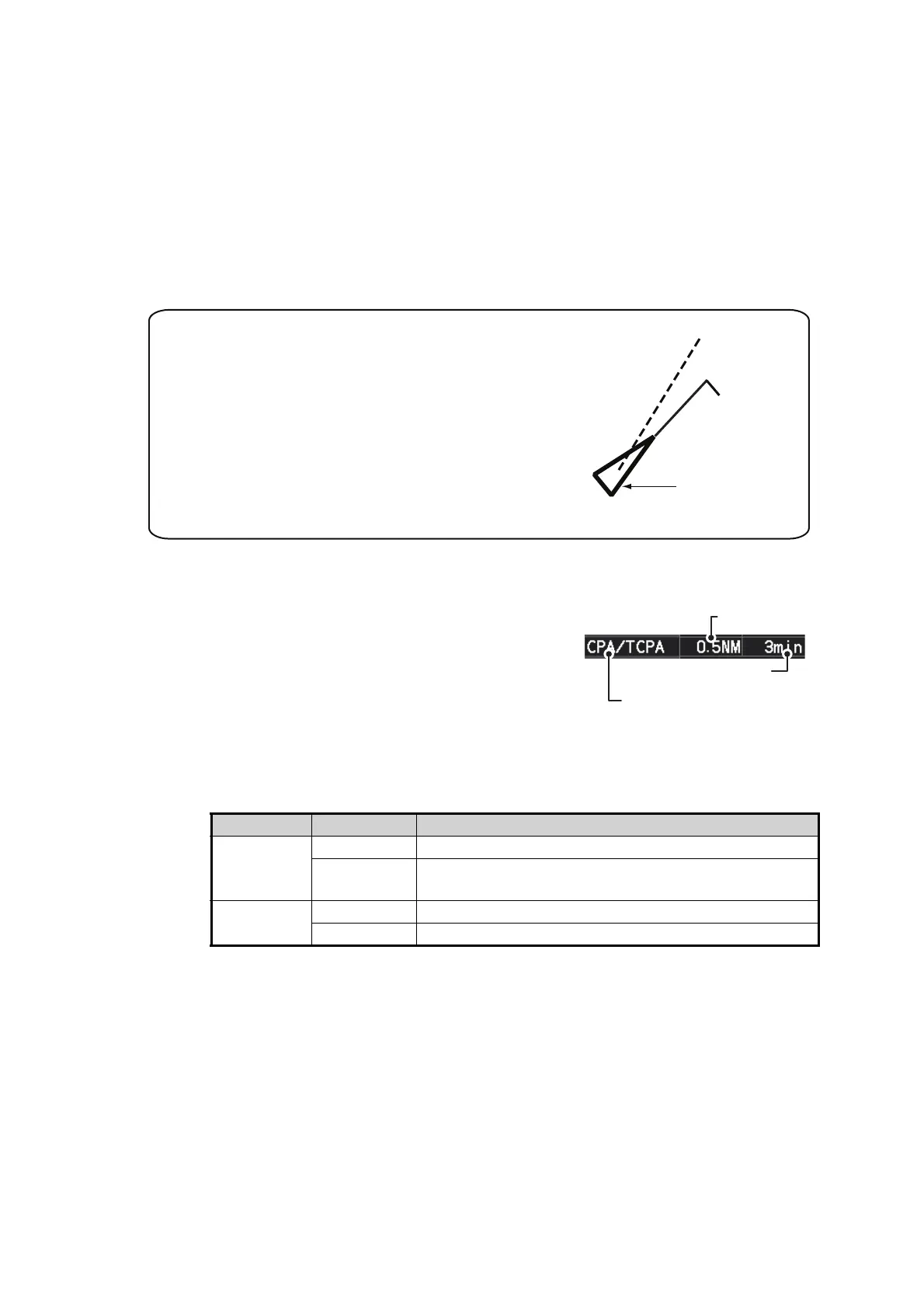

4.14 AIS Collision Alarm (CPA, TCPA)
This radar calculates CPA and TCPA by using own ship and relative target positions.
An AIS dangerous target is one whose CPA and TCPA are within the range of the CPA
and TCPA limits set in the TT/AIS box. The AIS symbol of an AIS dangerous target is
red and flashing, and is announced with the Alert "CPA/TCPA". After the alert is ac-
knowledged the target symbol is displayed in red color.
Note: Only AIS targets (class A and B AIS targets and SAR vessels) are subject to the
CPA/TCPA alarm.
4.14.1 How to set the CPA and TCPA ranges
CPA and TCPA ranges can be adjusted from the ap-
propriate indication in the [TT] box.
1. Left-click the [CPA/TCPA] indication to activate
the feature.
2. Place the cursor on the indication you wish to
adjust.
3. Left-click, or spin the scrollwheel, to adjust the settings as required. The settings
options are outlined in the table below.
Indication Method Settings options
CPA Left-click 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0, 6.0 (NM)
Scrollwheel 0.1 to 20; 0 to 10 in 0.1 NM increments, 1 NM incre-
ments thereafter
TCPA Left-click 1, 2, 3, 4, 5, 6, 12, 15 (minutes)
Scrollwheel 1 to 60 minutes in 1-minute increments
Thicker than
activated target
When a sleeping or an activated target violates the CPA/TCPA
alarm setting its symbol changes to the dangerous target
symbol (red and flashing) and the message "CPA/TCPA"
appears. Press the ALARM ACK key (or click the [ALERT] box
with the left button) to acknowledge the CPA/TCPA alarm. The
audible alarm is silenced and the symbol stops flashing.
Take appropriate action to avoid collision.
Dangerous target
CPA setting
TCPA setting
Left-click here to activate
CPA/TCPA settings.
