1. OPERATIONAL OVERVIEW
1-34

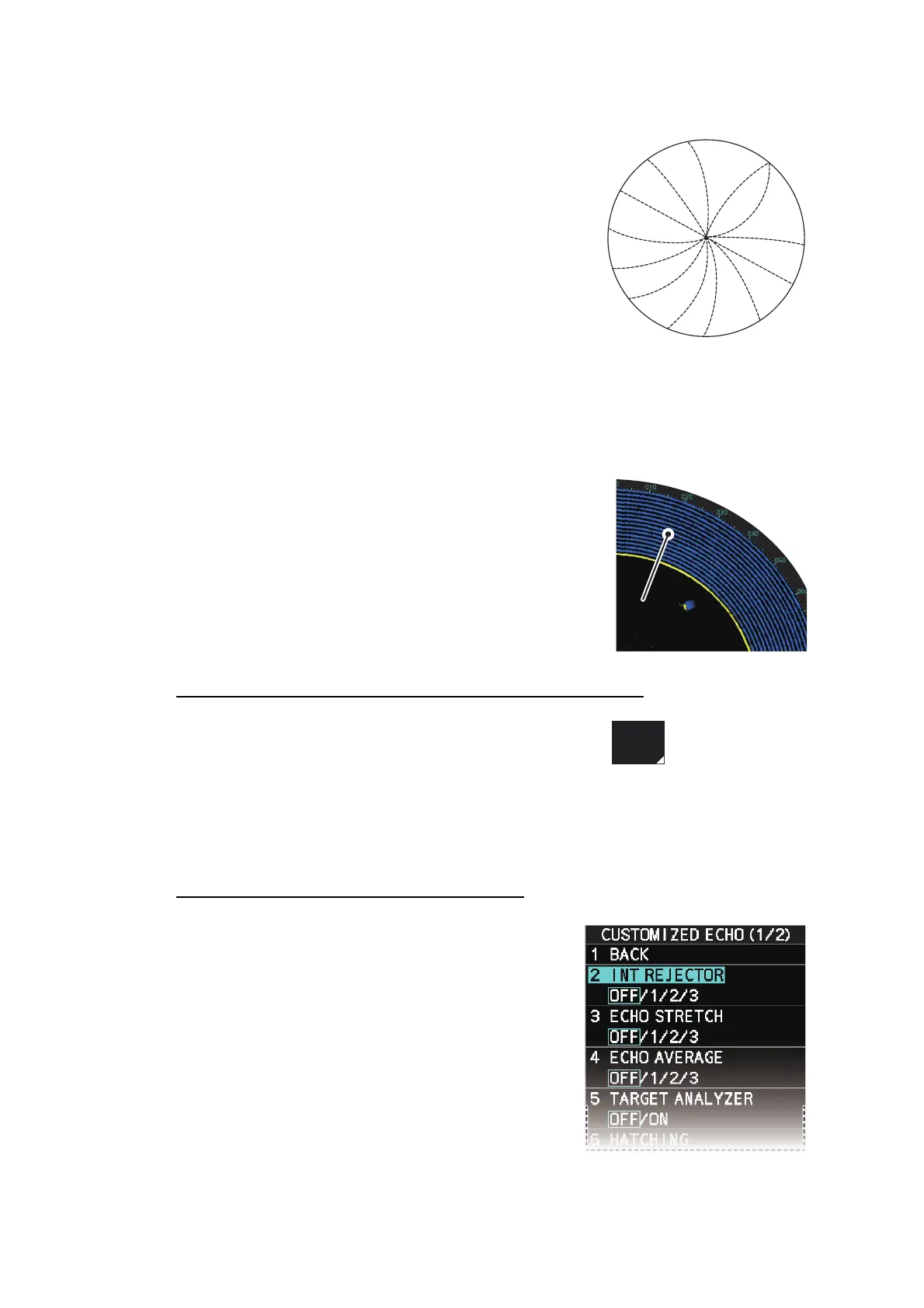

1.22 Interference Rejector
Mutual radar interference can occur in the vicinity of an-
other shipborne radar operating in the same frequency
band. It is seen on the screen as a number of bright
spikes either in irregular patterns or in the form of usu-
ally curved spoke-like dotted lines extending from the
center to the edge of the picture. Activating the interfer-
ence rejector circuit can reduce this type of interfer-
ence. The interference rejector is a kind of signal
correlation circuit. It compares the received signals over
successive transmissions and reduces randomly occur-
ring signals. There are three levels of interference rejection depending on the number
of transmissions that are correlated.
You can access this feature from the InstantAccess bar
™
, or from the menu. The avail-
able settings are: [OFF], [1], [2] or [3].
Note: When multiple radars using the same frequency
are nearby, interference may appear in a similar manner
to that shown in the figure to the right. If this kind of inter-
ference appears, do one of the following:
• Press the HL OFF key, or click the [HL OFF] button on
the InstantAccess bar™.
• Change the range.
How to reject interference from the InstantAccess bar
To adjust the interference rejector, select the [IR] button ( ) on the InstantAc-
cess bar
™
, then left-click to cycle through the rejection levels.
The available settings, in cyclic order, are: [OFF] → [1] → [2] → [3] → [OFF]...
Level [3] provides the highest level of rejection.
How to reject interference from the menu
1. Open the menu.
2. Select [1 ECHO].
3. Select [2 CUSTOMIZED ECHO].
Note: You can also right-click the [PICTURE]
box to access this menu.
4. Select [2 INT REJECTOR].
5. Select the required setting.
6. Close the menu.
Interference from radars
using the same frequency.
Interference from radars
using the same frequency.
TM
IR
OFF
