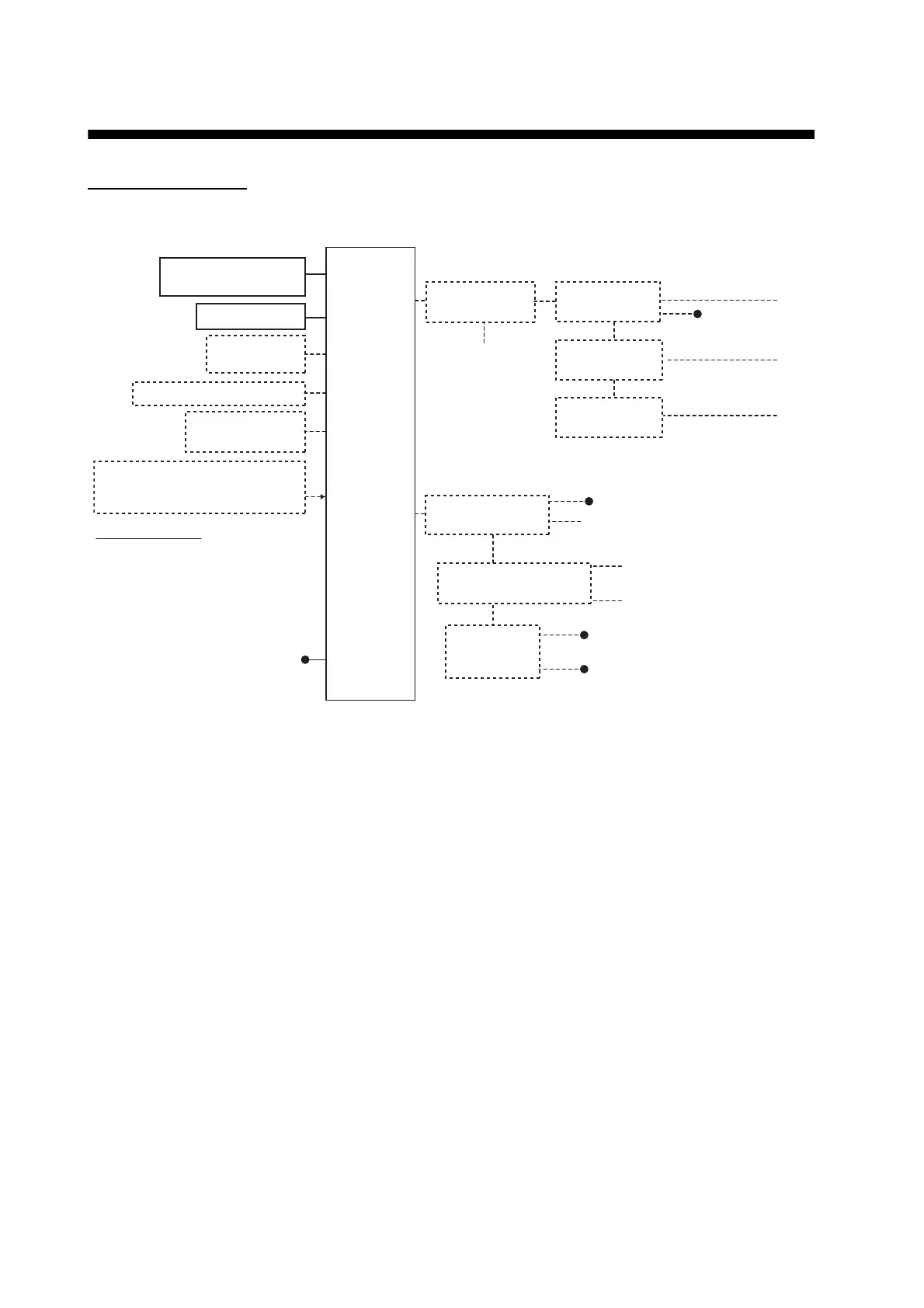

SYSTEM CONFIGURATION
Single workstation
Dashed lines indicate
optional or local supply
equipment.
Category of units
All units protected
from the weather.
PANEL
COMPUTER
UNIT
PCU-3000
100-230 VAC
or
24 VDC
Trackball Control Unit
RCU-030
100-230 VAC
24 VDC
100-115/200-230 VAC
1Ø, 50/60 Hz
24 VDC
Keyboard
5139U (Black)
USB DVD Drive
External Monitor*
1
, VDR*
2
USB Printer,
USB Flash Drive
Serial Interface (4 ports):
• IEC 61162-1/2x2 (AIS, GYRO)
• IEC 61162-1x2 (GPS, LOG)
Switching Hub
HUB-100
Sensor Adapter
MC-3020D
Sensor Adapter
MC-3030D
Serial interface
Digital IN interface
Digital OUT interface
Sensor Adapter
MC-3000S
Intelligent Hub
HUB-3000
Radar 1
Radar Connection Box
RCB-002
AC/DC Power
Supply Unit
PR-240
Radar 2
100-230 VAC
Gateway network equipment
(radar, ECDIS, etc.)
*
1
Use full HD monitor or better.
*
2
ECDIS picture data can be sent periodically to a VDR via LAN.
Connect the VDR to the LAN2 port on the Panel PC to send the data.
