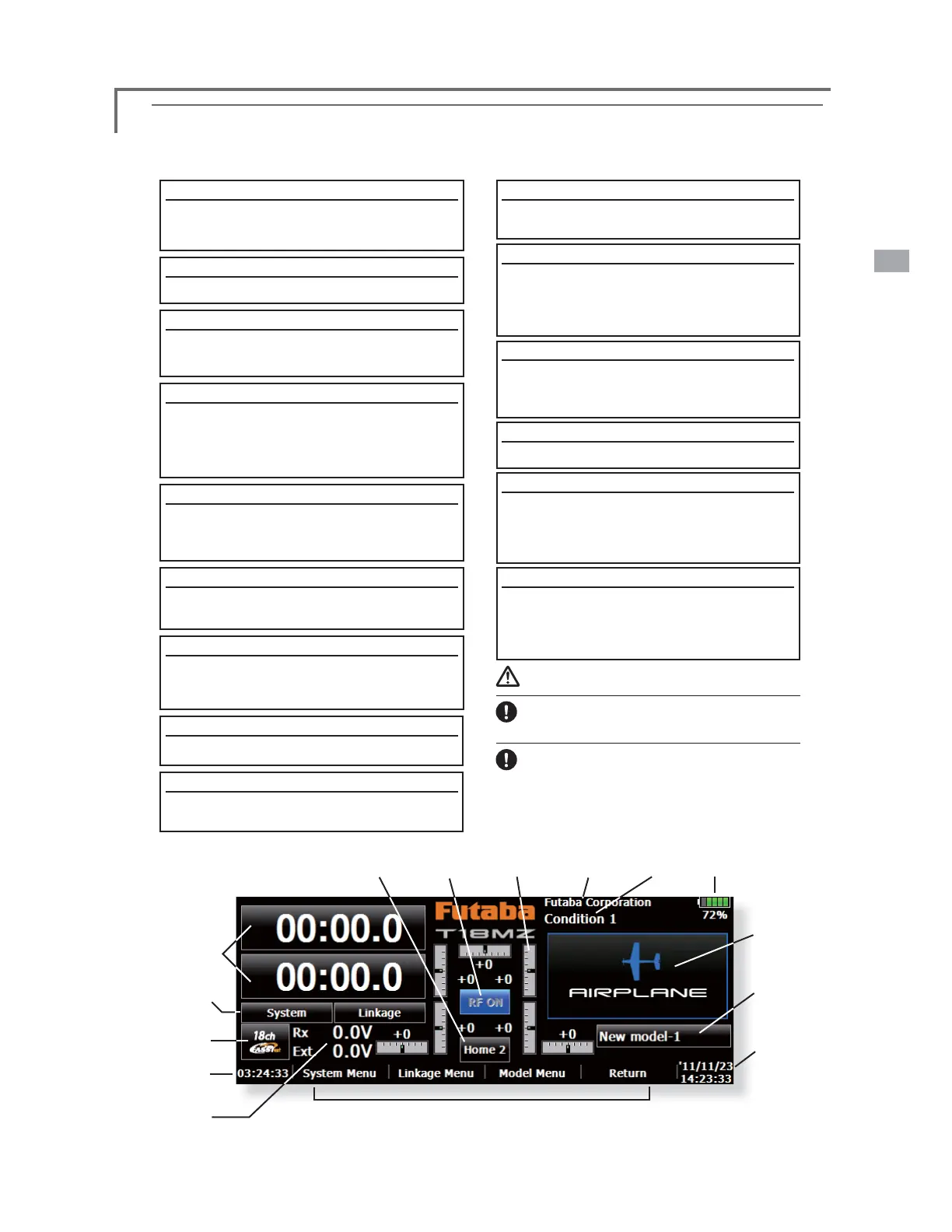

<Basic Operation>
①
Timer
If one of two timer displays is pushed, you will
enter the Timer screen of a Linkage menu.
②
Menu Button
System
⑬
Menu Button
Model
⑦
Home2
A timer and Telemetry data change to
Home2 screen by which it was indicated
by expansion.
Warning
Be sure to confirm the model name before
Check the remaining battery as often as
possible and try to charge the battery
regularly. If the battery alarm sounds and
its warning symbol is displayed, land your
aircraft immediately.
Home screen
⑪
Condition
The condition name that is currently used
is displayed here.
Push this area to enter the Condition
Select screen.
⑮
Clock
This shows the today's date and the
current time.
screen.
⑩
User's name
Push this area to enter the User's Name
Setting screen.
③
System Selection
④
System timer/Reset
used for the transmitter. This can be reset.
(Hour):(Minute):(Second)
Push this area to reset the timer.
⑥
Direct buttons
Select and press one of the direct buttons
to enter the menu.
touch screen.
⑫
Battery Indicator
When the remaining battery reaches 30%,
the alarm will beep. Land your aircraft
immediately.
⑧
RF Indicator
"ON AIR" or "RF OFF"
⑨
Digital trim (T1 to T6, CD)
Push this area to enter the Dial Monitor
screen.
⑭
Model Name
The model name that is currently used is
displayed here.
screen.
⑤
Voltage of Rx/Ext battery
Information from the receiver is displayed
when using a bidirectional system.
FASSTest Only.
⑬
⑭
⑮
①
②
③
④
⑤
⑥
⑦⑧⑨⑩⑪⑫
To Next Page
