GEK-7303 Low Voltage Power Circuit Breakers
for the reset button (10). To adjust reset button,
loosen lock nut ahead
of reset button & turn
button until : proper adjustment is made. Re-
tighten lock nut.
REPLACEMENT
If it becomes necessary to replace coil (6)
proceed as follows: ·
1.· Remove five bolts connecting the device
to the
side plate and front frame. Lower .
lockout device, guiding rod
(3) thru rod
15
5------t
6--------'
. 7----------'
8---------.J
14
guide (2). Continue lowering the device
until movement is restricted by the device
wiring
harness.
2. Disconnect leads to coil (6).
3. Remove two screws holding the trip device
to the device mounting plate.
4. - Bend lower e.nd ~f brass · clamp straight.
5. Remove coil. Install new coil and replace
parts in reverse order.
I TRIP . PADDLE ·
2
ROD GUIDE
. 3 ROD
4 LOCK NUT .
. 5 1'.RIP DEVICE
t COIL
7 LINK ASSEMBLY
8 ARMATURE
9 ARM ..
10 RESET BUTTON
I I ROD. RESET
eu,:TON
12 SPRINGS. RESET ROD ·
13 SPRING. LINK ASSEMBLY
14· MOUNTING BRACKET
15 TRIP SHAFT
~--------~13
~--~------12
~--------11
~---10

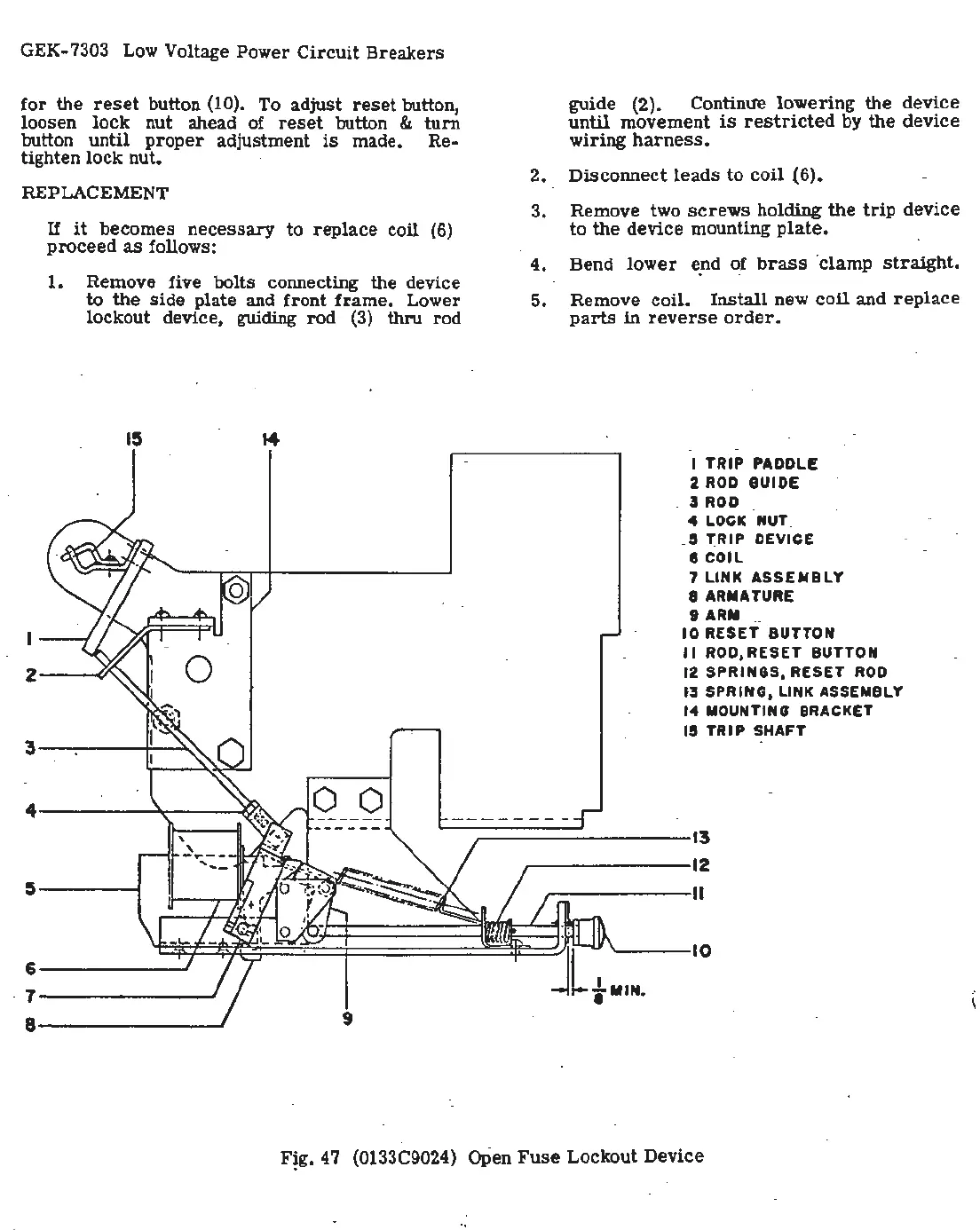

F!g. 47 (0133C9024) Open Fuse Lockout Device
