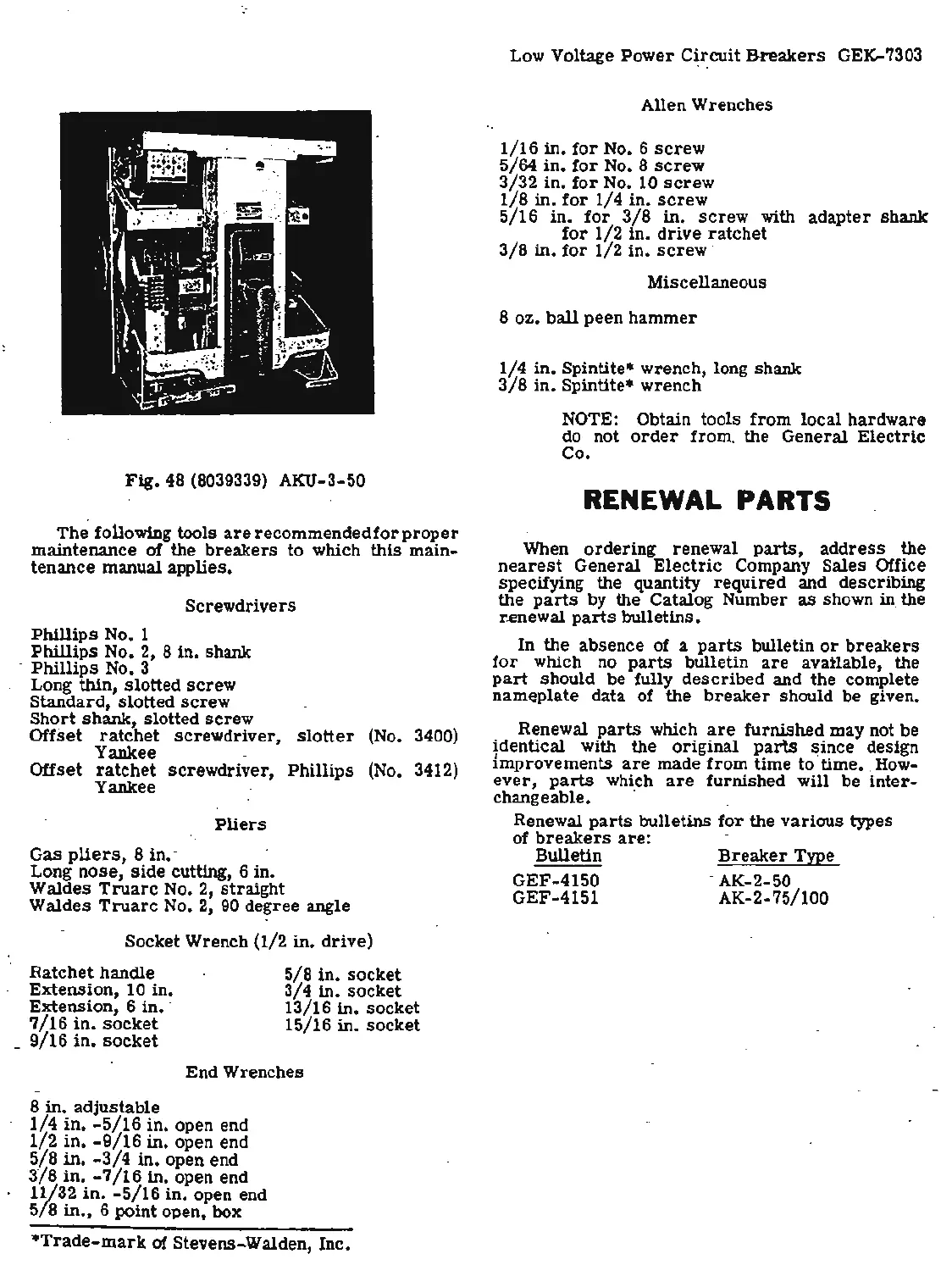

GE AK-1-15 Maintenance Manual

Fig. 48 (8039339) AKU-3-50
The following tools are recommended for proper
maintenance of the breakers to which this main-
tenance manual applies.
· Screwdrivers
Phillips No. 1
Phillips No. 2, 8 in. shank
-
Phillips No. 3
Long thin, slotted
screw
Standard, slotted screw
Short shank, slotted screw
Offset ratchet screwdriver, slotter (No. 3400)
Yankee -
Offset
ratchet screwdriver, Phillips (No. 3412)
Yankee
Pliers
Gas pliers, 8 in. -
Long
nose, side cutting, 6 in.
Waldes
Truarc No. 2, straight
Waldes Truarc No. 2, 90 degree angle
Socket Wrench (1/2 in.
drive)
Ratchet handle 5/8 in. socket
Extension, 10 in. 3/4 in. socket
Extension, 6 in. · 13/16 in. socket
7/16 in. socket 15/16 in. socket
_ 9/16 in. socket
End Wrenches
8 in.
adjustable
1/4 in. -5/16 in. open end
1/2 in. -9/16 in. open end
. 5/8 in. -3/4 in. open end
3/8 in. -7/16 in. open end
11/32 in. -5/16 in. open end
.
5/8 in., 6 point open, box
*Trade-mark of Stevens-Walden, Inc.
Low Voltage
Power C~~cuit Breakers GEK-7303
Allen Wrenches
1/16 in. for No. 6 screw
5/64 in. for No. 8 screw
3/32 in. for No. 10 screw
1/8 in. for 1/ 4 in. screw
5/16 in. for 3/8 in. screw with adapter shank
for 1/2 in. drive ratchet
3/8 in. for 1/2 in. screw·
Miscellaneous
8
oz. ball peen hammer
1/4 in. Spintite• wrench, long shank
3/8 in. Spintite• wrench
NOTE: Obtain tools
from local hardware
do not order from. the General Electric
Co.
RENEWAL PARTS
When ordering renewal parts, address the
nearest General Electric Company Sales Office
specifying the quantity
required and describing
the
parts by the Catalog Number as shown in_ the
r.enewal
parts bulletins.
In the absence of a
parts bulletin or breakers
for which no parts bulletin are avatlable, the ·
part should be fully described and the complete
nameplate data of the breaker should be given.
Renewal
parts which are furnished may not be
Jdentical with the
original parts ~ince design
improvements
are made from time to·time •. How-
ever, parts which are furnished will be inter-
changeable. . · ·
Renewal
parts bulletins for the various types
of
breakers are: ·
Bulletin
Breaker TyPe
GEF-4150 -AK-2-50
GEF-4151 AK-2-75/100
