DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 267
ETX Board removal
ETX Board installation
Table 8-292 ETX Board removal
Step Corresponding Graphic

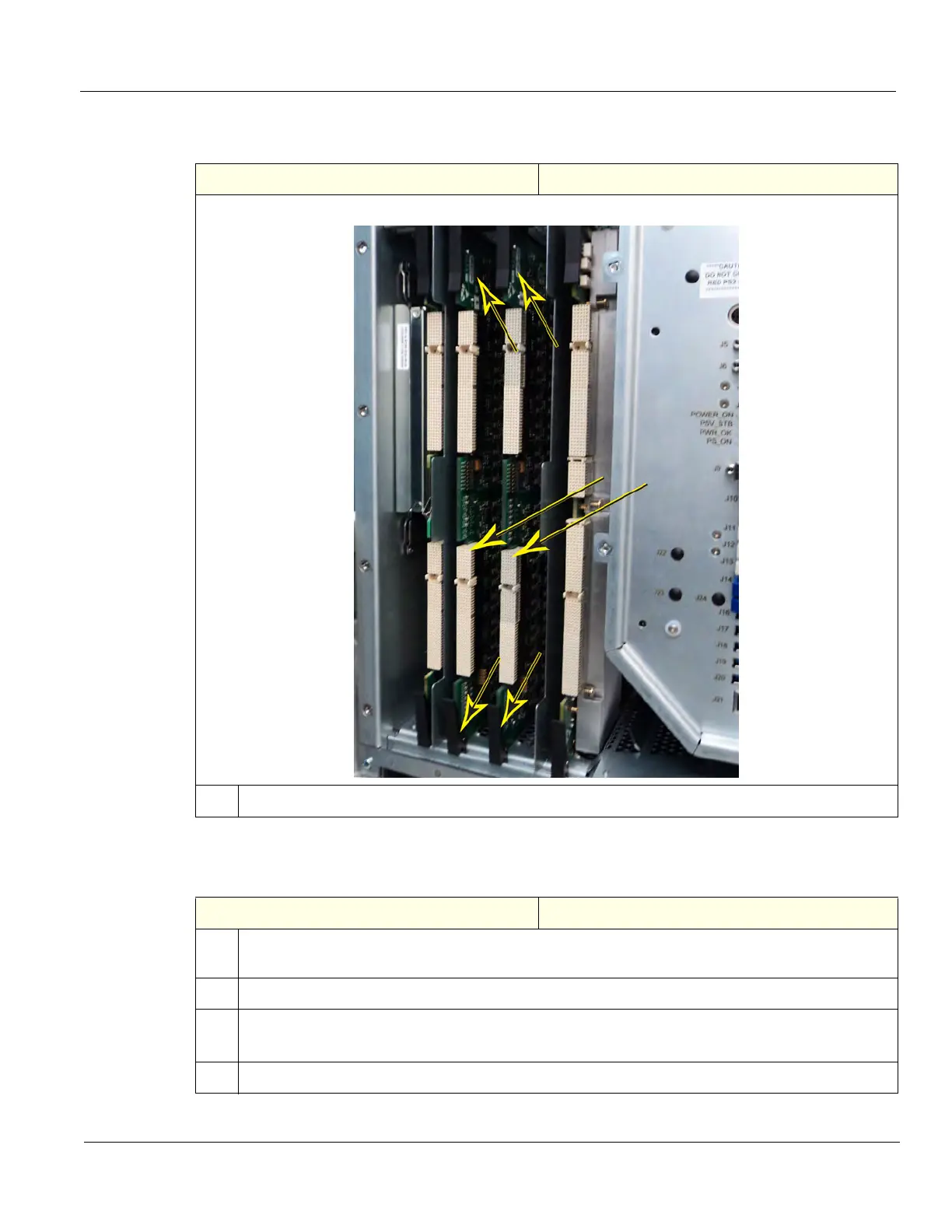

ETX Board location
1.
Using the board ejector levers, remove the ETX Board(s). Place on an ESD safe place.
Table 8-293 ETX Board installation
Steps Corresponding Graphic
1. Carefully align the ETX Board(s) with the rails and push in until it starts to seat in the Backplane
connectors and close the board ejector levers.
2. Carefully install the two Front Plane Boards.
3. Install the Card Rack Cover and fasten it with the fixing screws.
Connect the Hi-Pass cable to the GRLY Board and re-install the cover, if present.
4. Re-install all Covers removed.
