GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
9 - 38 Section 9-16 - Internal Cables
10.
C
able - ECB USB to BW Printer 5194492-21
Cable U
1Y
11.
Cable - Power ECB to BAYBIRD 5244550-11
Cable X
1Y
12.
CW Cable with Bracket 5768228
Cable W
1Y
13.
Cable - USB_ECB to BAYBIRD 5194492-24
Cable Y
1Y
14.
Cable V Nav 5439524
Cable Z
1Y
15.
Cable - XYZ Switch Board 5198990
Cable R
1Y
16.
Cable - RCA Audio, BEP to
Silver Flute Subwoofer
5194498-2
Cable P
1Y
17.
Cable - Power, ECB to GPU 5761667
Cable CC
1Y
18.
Cable - USB ECB to Rear IO 5194492-23
Cable K
1Y
19.
Cable - USB OP Bulkhead, FREY 5248610
Cable F
1Y

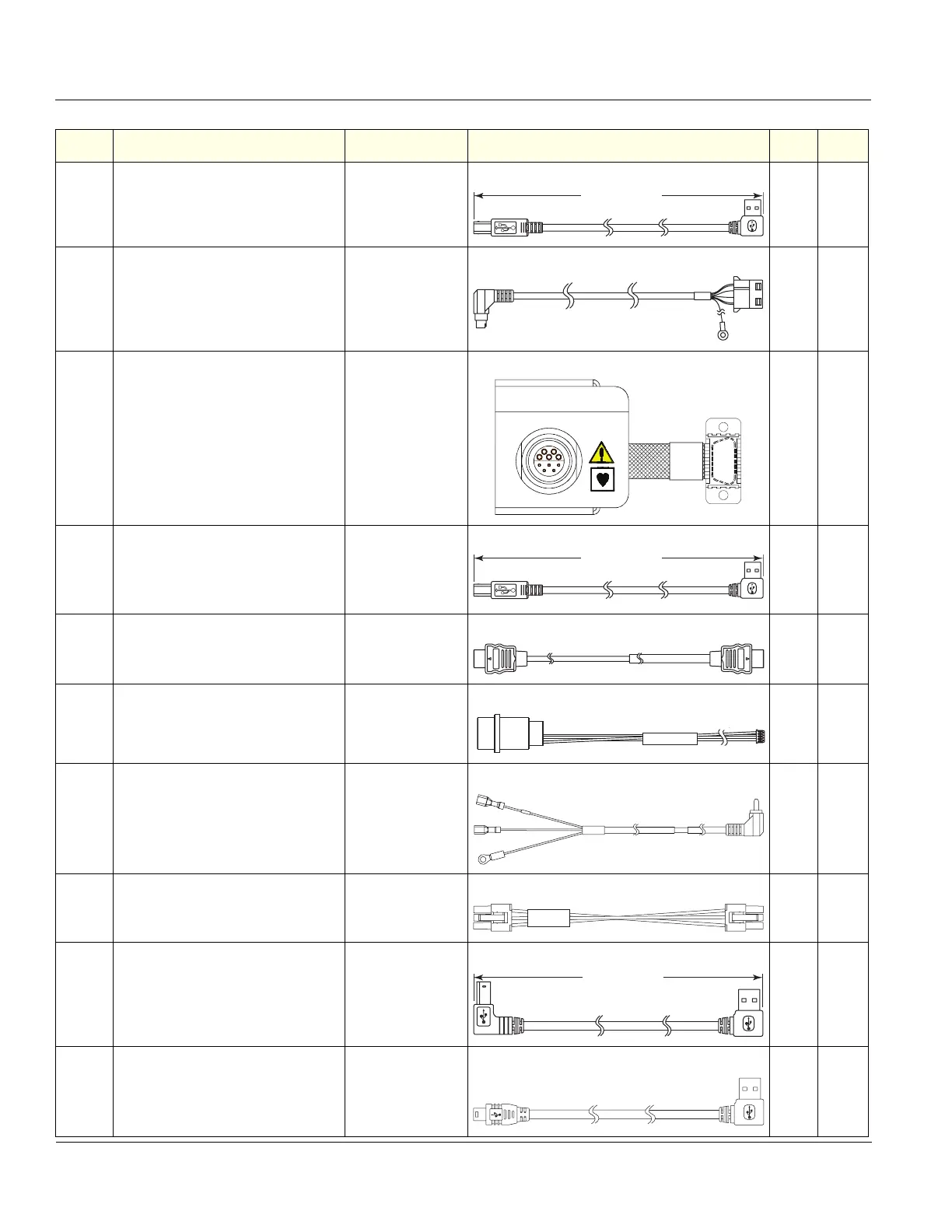

Table 9-18 Main Power Supply Cables 2 of 2 (Continued)
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
ECB J12
BW PRINTER
(900 mm)
5194492-21....
ECB J3 OR J4 BAYBIRD POWER
5244550-11....
ECB J7
BAY BIRD
(500 mm)
5194492-24....
DRIVE BAY
BEP J33
5194498-2 REV x
SUBWOOFER
5761667 REV X
#NAME# #ORIGIN#
#DATE#
REAR IO J3 ECB J13
5194492-23...........
(860 mm)
OP PANEL J24/J25
BULKHEAD P7/P8
5248610 REV
